14
Ground Pole—— This pole used to introduce current into the ground; when the electrical
equipment leaks or the voltage is too high, the current enters the ground through the ground.

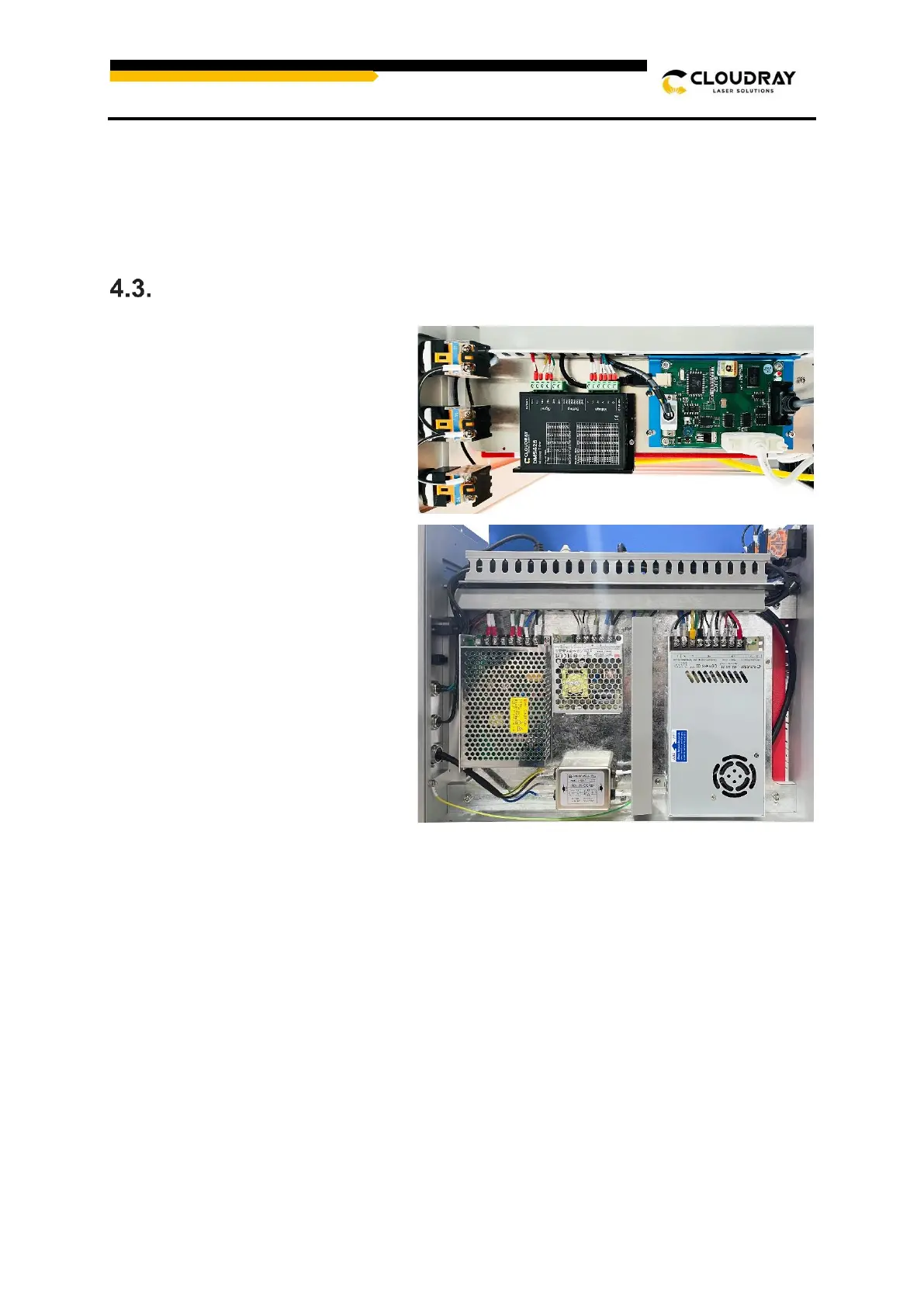

Laser Module (Inside)
A. Controller——Cooperates with
the software to control the laser
and galvo to work.
B. Stepper Driver——Control rotary
work and realize rotary marking
function.
C. 5V Power Supply——Provide 5V
7A power for the controller.
D. 24V Power Supply——Provides
24V 14.7A power for fiber lasers
and fans.
E. ±15V Power Supply——Provide
±15V power to galvo.
F. Filter——Filter signal clutter to
eliminate interference to control
signals.
A
B
C
D
E
F
