Cloudray LiteMarker User Manual

Cloudray Laser System
Cloudray (Jiangsu) Co., Ltd.
26

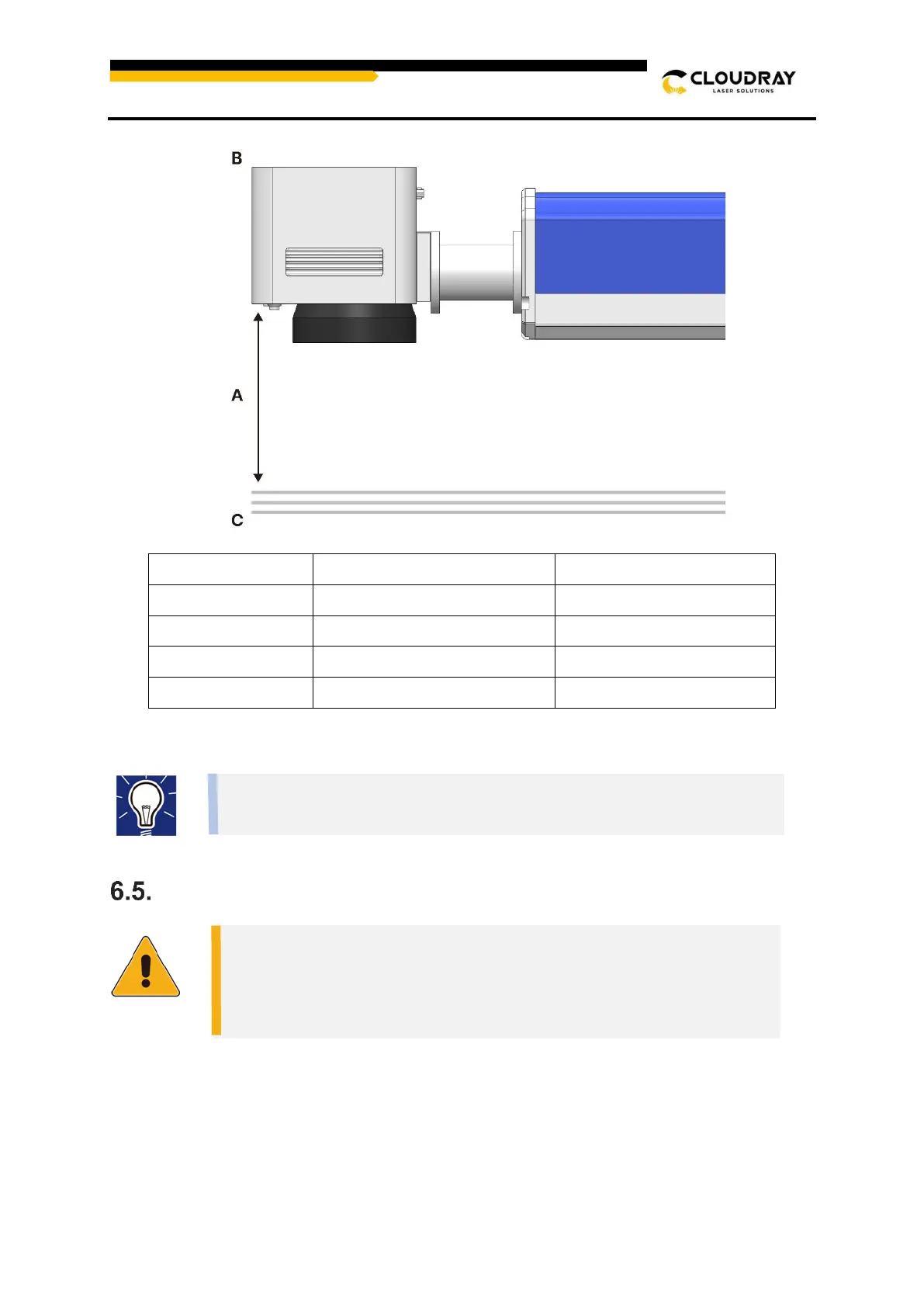

Lens
Scan Field(mm)
Focal distance (A)
F100
70x70
153.5
F160
110x110
215
F290
200x200
336
F420
300x300
474
Rotary attachment (option)
6.5.1. Mounting the work piece in the rotary attachment
1. Put the rotary axis attachment onto the working table.
Use the manual Z-Axis handle or the up and down buttons on the Keypad
to move the head in the correct position.
Damage to electronics.
Inserting or removing the Rotary attachment while the machine is turned
on may irreparably damage the electronics. Switch off the machine
before inserting or removing the Rotary attachment.
