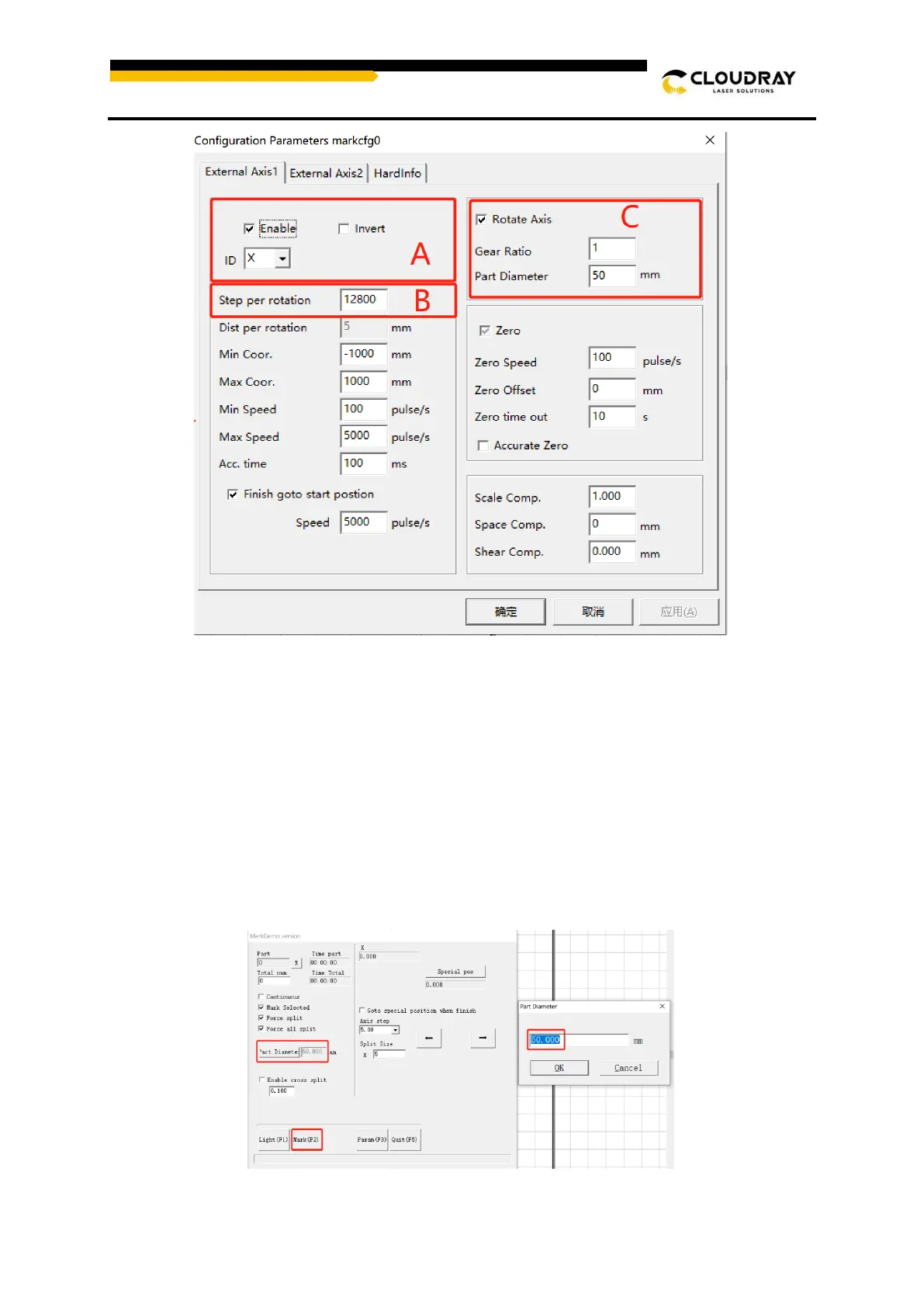

A. Enable extended axis, reverse mode, enable Y axis (enable X or Y axis according to the
direction in which the rotation axis is placed).
B. The value of the number of pulses per revolution is the subdivision value on the drive, and
the number of pulses usually used is 12800 or 25600.
C. Enable the function of the rotary, the gear ratio value is determined according to the
reduction ratio of the rotating axis, the workpiece diameter is the actual diameter of the
workpiece to be processed.
D. The smaller the split size, the better the engraving effect. Usually, the split size is 1~5mm.
3. Enter the diameter of the workpiece to mark.
