MAN.219 Rev.8 ENG - Use and maintenance manual S19N page 39 of 71

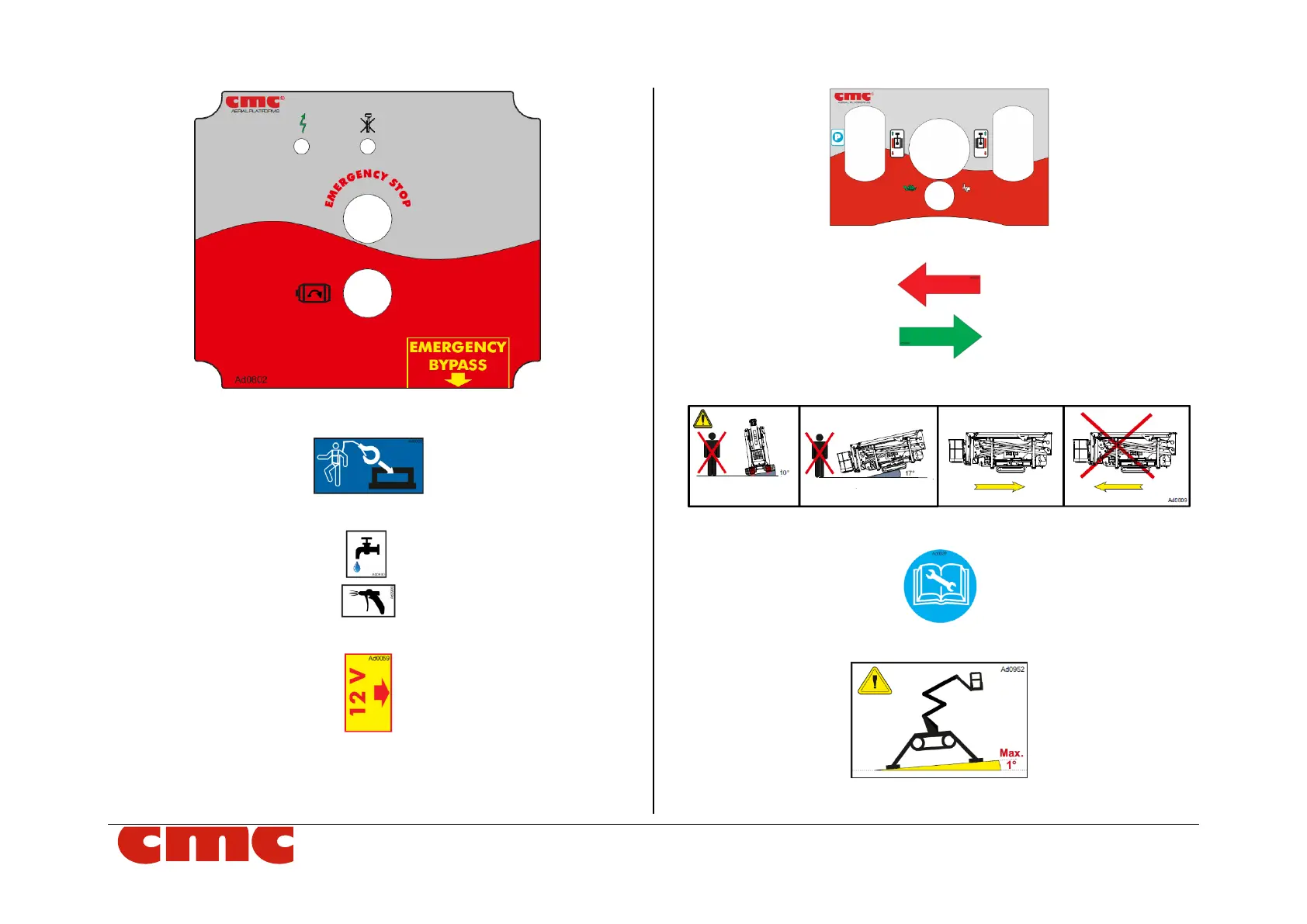

Picture 38: emergency box.
Picture 39: safety belt attachment point.
Picture 40: indication of air/water supplies.
Picture 41: indication of 12 V socket.
Picture 42: wired remote control station.
Picture 43: travel directions on tracks.
Picture 44: maximum slopes for travel.
Picture 45: use and maintenance manual box.
Picture 46: indication of maximum
frame inclination.
