USB MIDI Master Keyboard
6

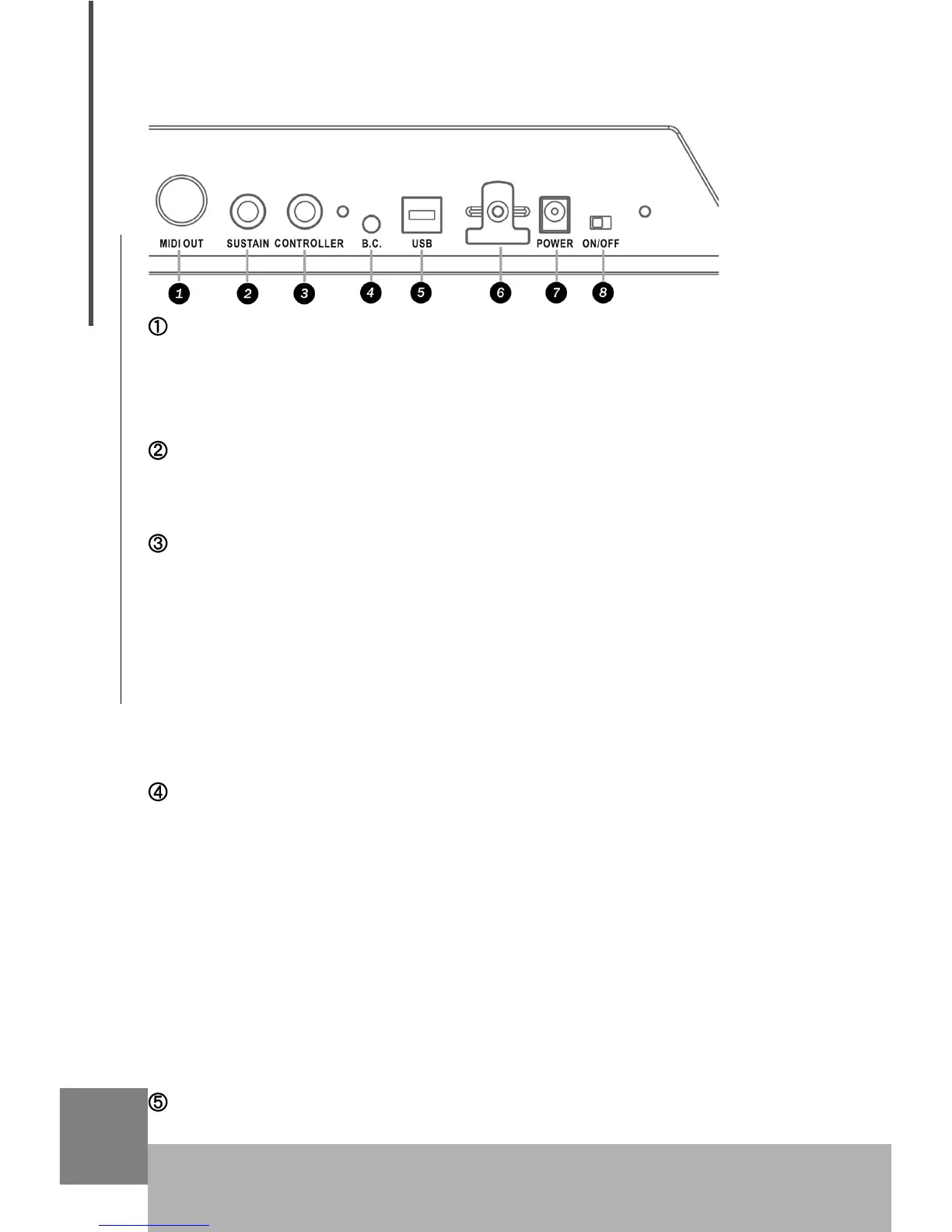

1.2 Rear panel
MIDI OUT
All the MIDI messages from the UF keyboard or from USB
transmission will be outputted to external MIDI devices via MIDI
OUT terminal.
SUSTAIN PEDAL
A sustain pedal can be connected to SUSTAIN PEDAL terminal.
The sustain pedal will generate MIDI controller #64 message.
CONTROLLER PEDAL
A controller pedal can be connected to CONTROLLER PEDAL
terminal. The controller pedal will generate MIDI controller
message, the controller # is assignable
To assign a controller # for the pedal, press DRAWBAR and A.
TOUCH at the same time, then the current controller # (11) will be
displayed on the LED, now we can use DEC/INC button or the
data dial to change the controller # to any number from 0 to 127.
B.C.(Breath Control)
A breath controller (such as YAMAHA BC3) can be connected to
B.C. jack. The breath controller will generate MIDI controller #2
(assignable) message.
To assign a controller # for the B.C.jack, press PROGRAM and
OCTAVE at the same time, then the current controller # (02) will
be displayed on the LED, now we can use DEC/INC button or the
data dial to change the controller # to any number from 0 to 127.
Note: The B.C. jack only works when the keyboard is powered by
AC. Adapter.
USB
USB port is used to connect the UF keyboard to computer by an
Connection
