CNC 6040 Router / Engraver System
CNCDIY CNC Routing Machines System User’s Manual
24
3-9-4 Final Connection
At the back of the control box, there are also requested to connect the electrical power supply
cable and the computer parallel port cable.

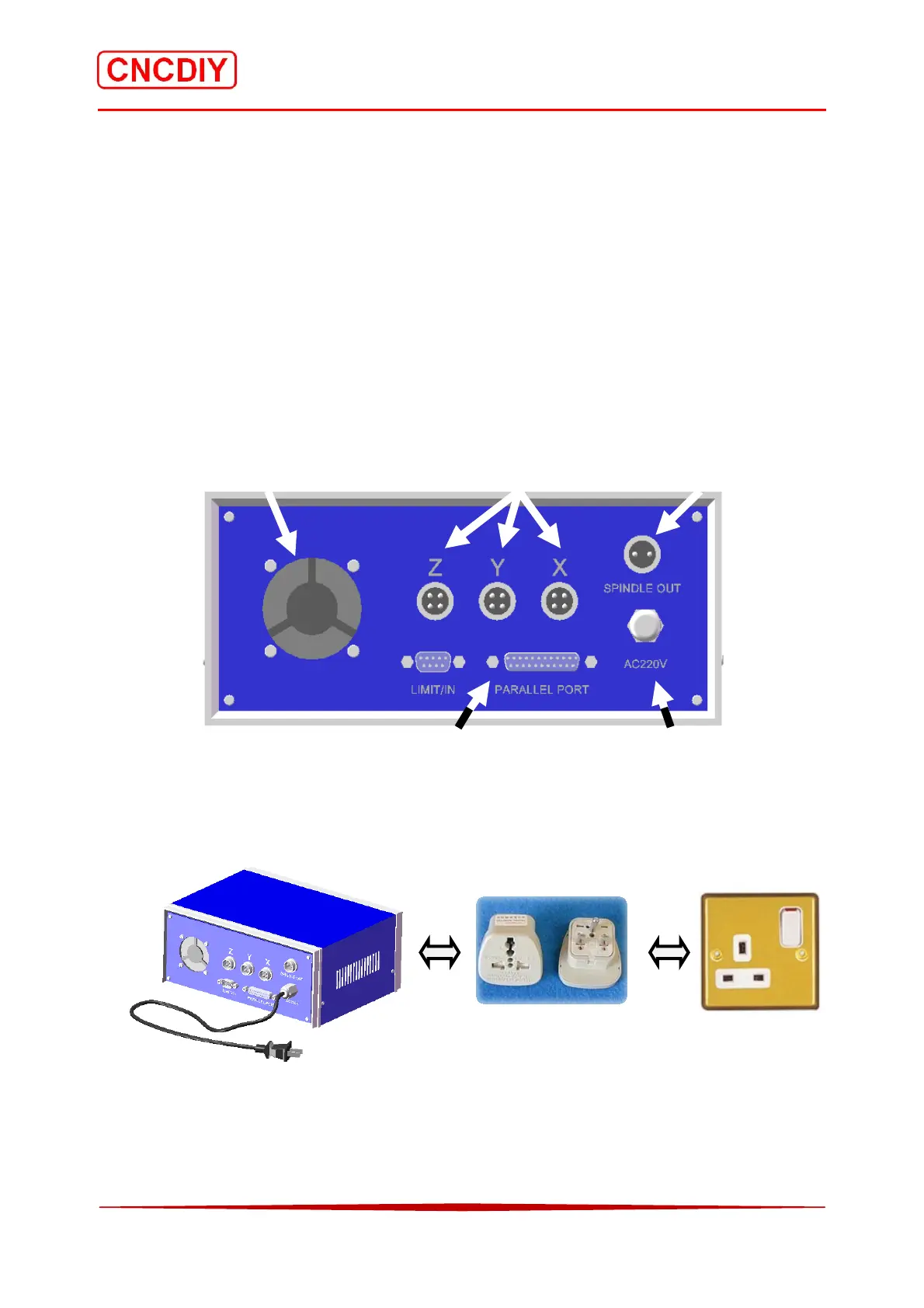

3-9-4-1 CNC Control Box (Please refer to the related CNC control box user’s manual)
Plugging the four cable connectors of the machine into the CNC control box with corresponding
marking in the back of the box! Please look carefully to identify the X, Y and Z axes and the
spindle motor. The spindle connector is a 2 pins plug. User does not plug the parallel cable in
the box at this moment. Do not plug and connect any unknown connector or socket.
Connect the connector heads to correct socket!
3-9-4-2 Electrical Power Supply Cable
The cable connects between the socket and the CNC control box.
Socket Adaptor
Power Socket
CNC Controller Box
SpindleOutput
(2Pins)
SteppingMotors
(4Pins/Each)
CoolingFan
ParallelPort
(Female)
InputPower
(AC110V/AC220)
To Next Page
