3-9-3 Understanding the direction of the axis
There are two types of axes direction setting. The major different are exchanged the X axis and Y
axis. Before you connect the control box with the stepping motors, please understand and
confirm the following setting.

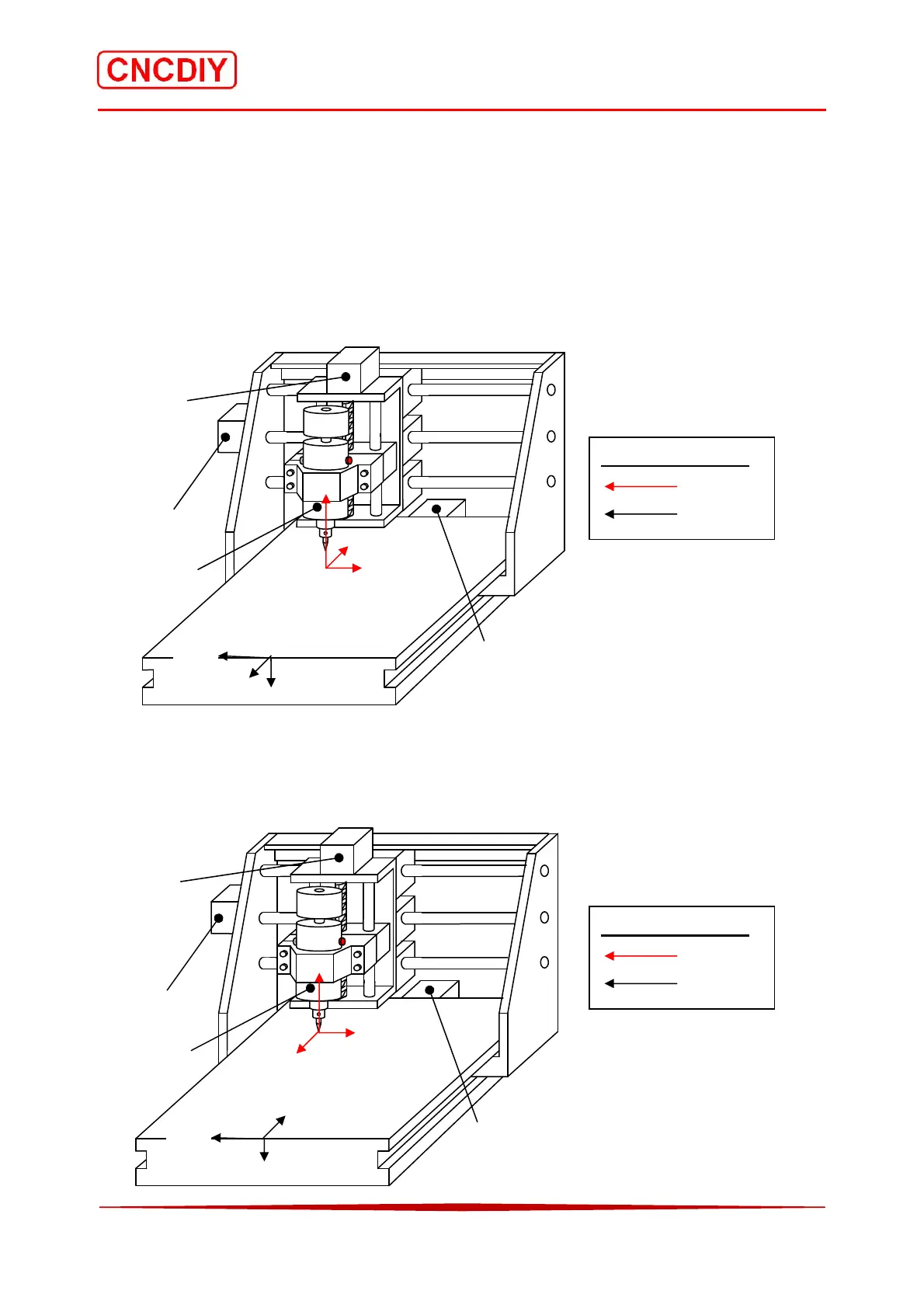

3-9-3-1 Type A Setting
The Maximum stroke of the X axis is 400mm and Y axis is 580mm.
3-9-3-2 Type B Setting
The Maximum stroke of the X axis is 580mm and Y axis is 400mm.
MovingDirection: 
Miller
Table
MovingDirection: 
Miller
Table
Xaxis
motor
Yaxis
motor
Zaxis
motor
DCmiller
+X
+Y
+Z
+X
+Y
+Z
Yaxis
motor
Xaxis
motor
Zaxis
motor
DCmiller
+Y
+X
+Z
+Y
+X
+Z
