98-175666-C Appendix B: Dual antenna solution B-5
Configuration of the dual antenna solution
• When signal strength drops 4 dB lower than the in-active antenna.
B.3.2 To configure the Master BDU
The configuration of the master BDU depends on which ports are used and how your
network has been configured.
Configure the Master BDU VSAT profile exactly the same way as a single SAILOR XTR
GX-R2 system. Recommended network settings are shown in the following figure.
After the Master BDU has been configured, do as follows:
1. Click SETTINGS > Dual antenna.
2. Select Set this antenna as master in dual configuration and click Apply.
3. Dual antenna mode, select Automatic Dual Mode.
4. If needed, click Switch to the other antenna in the dual antenna system.
Important
Before you enable dual mode, set up the master and the slave to be on
the same subnet but with different IP addresses.

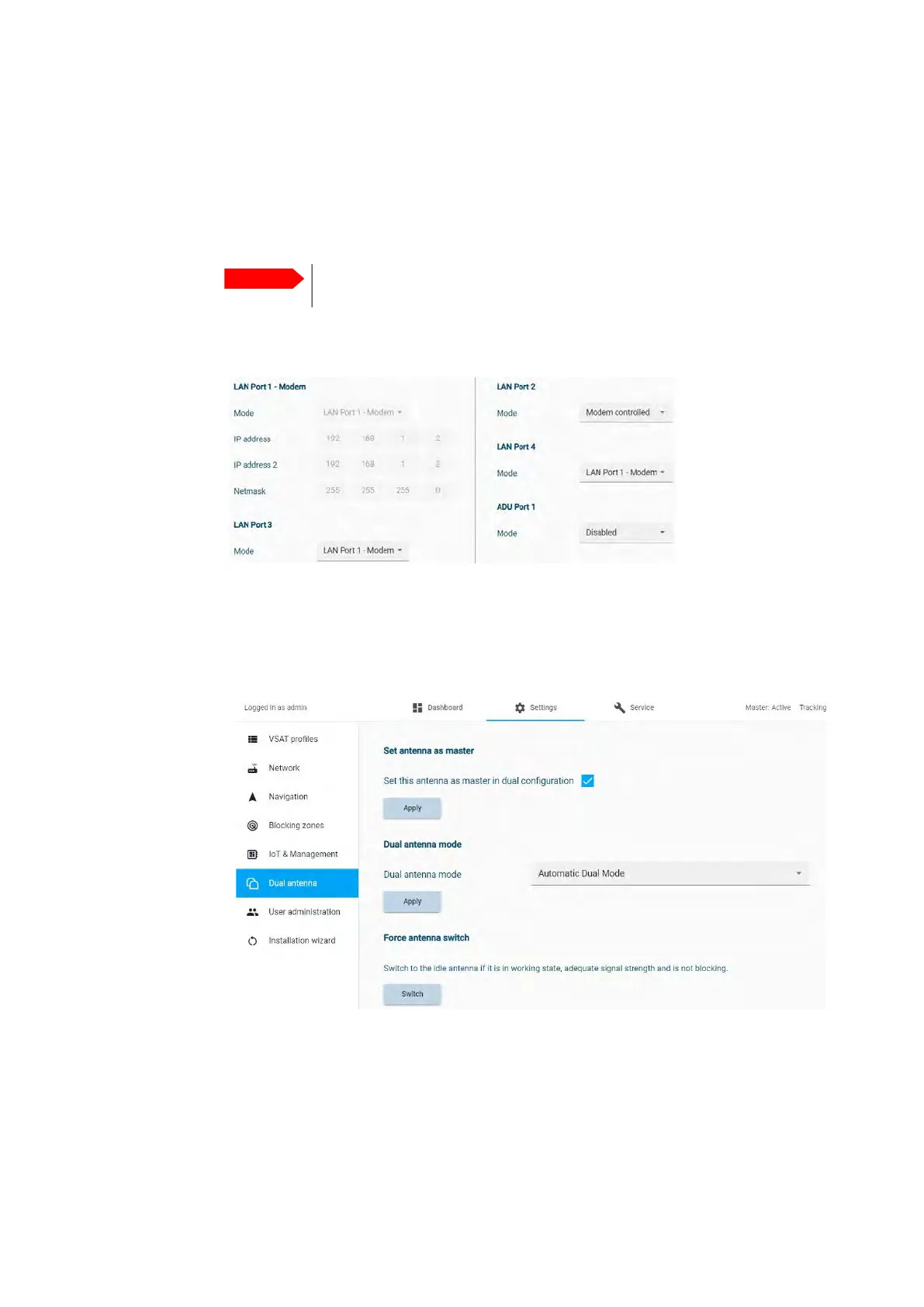

Figure B-4: Master BDU, Network settings
Figure B-5: Enabling dual-antenna mode in the Master BDU
