98-175666-C Chapter 4: Setup of the antenna 4-6
4.2 Settings
In this section you can define a VSAT profile, enter navigation input, set the blocking
zones and define settings for added third-party equipment mounted in the antenna.
You can also set passwords and user permissions. Furthermore you can access the
installation wizard.
4.2.1 VSAT profiles
In this section you set up the VSAT profile, including modem and satellite data. Once
you have created a VSAT profile, you can edit or delete it. AUTO means that the modem
selects automatically which satellite to connect to.
To set up a VSAT profile and activate it, do as follows:
1. Click Settings and then VSAT profiles.
2. Click the + icon to add a VSAT profile.
3. At VSAT profile name enter a name of your choice.
4. Select the modem from the Modem type drop down list.
5. Fill in the data for your modem setup and desired tracking options.
6. Click the Save icon to save the VSAT profile.
7. Click the check mark icon to activate the VSAT profile.

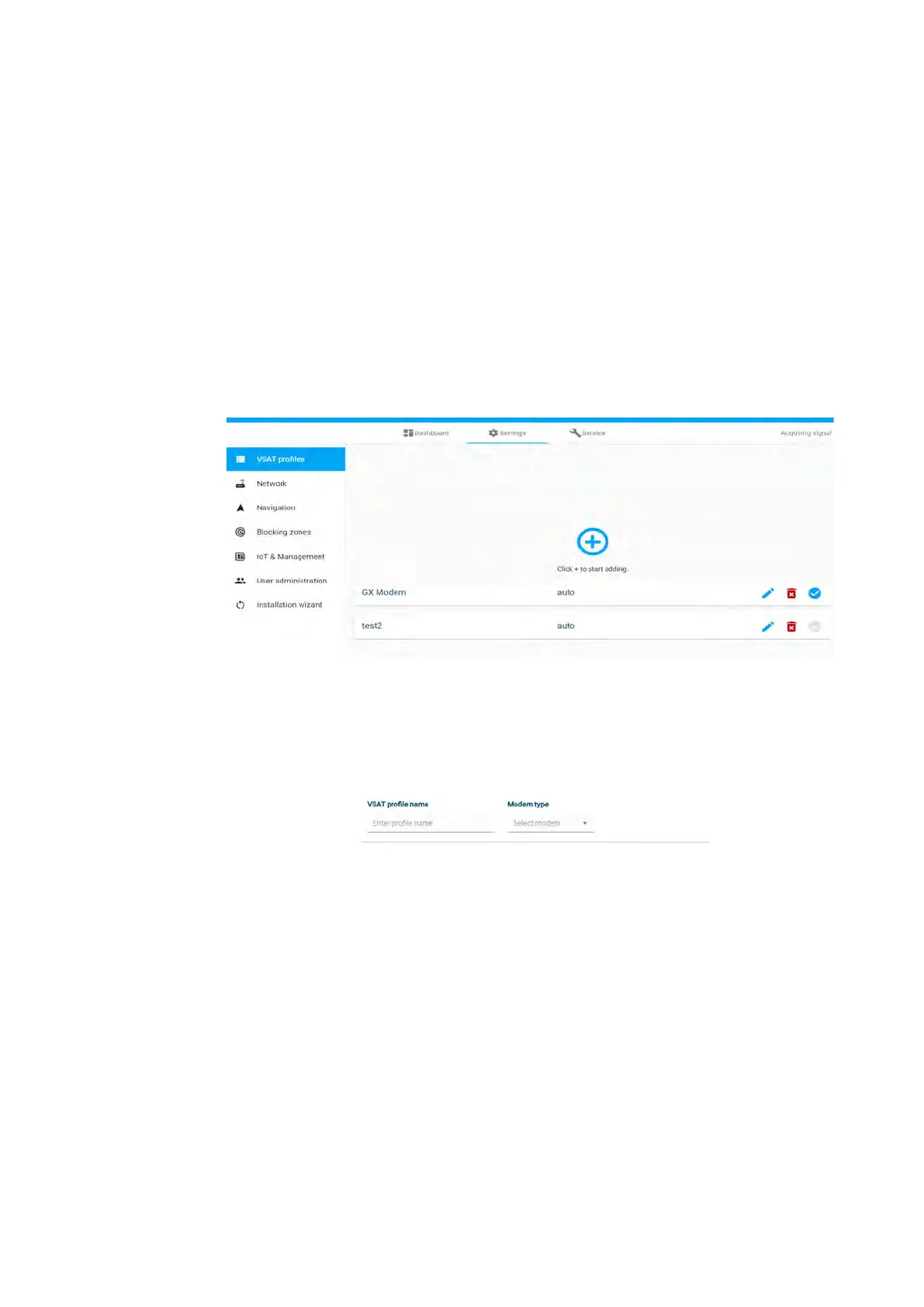

Figure 4-6: Settings - VSAT profiles
Figure 4-7: Settings - VSAT profile name and Modem type
TBD: Screen clip for Ka needed
