COBHAM SAILOR XTR GX-R2 User Manual

Site considerations
98-175666-C Chapter 2: Installation 2-11
Mast length (S600 antenna)

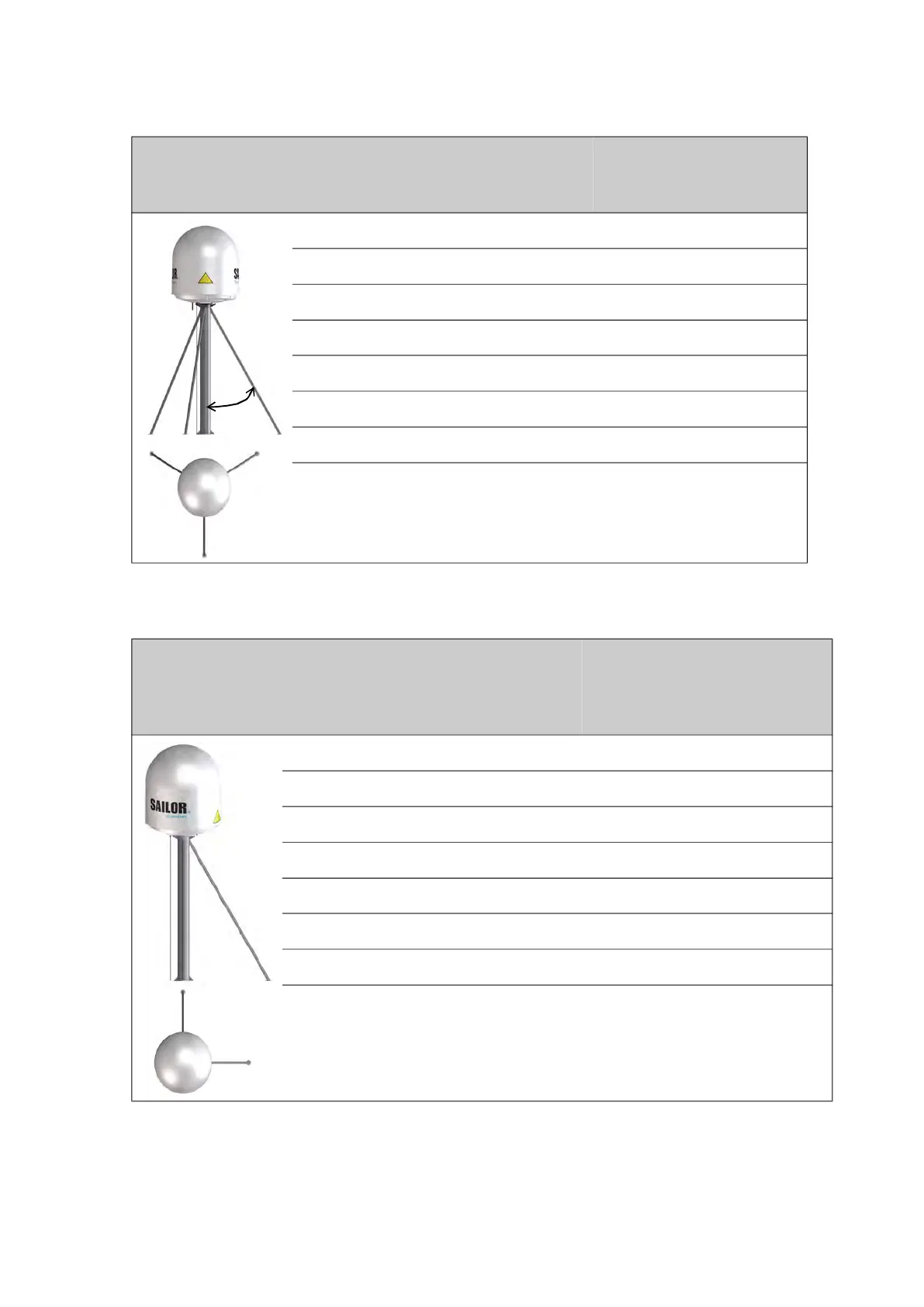

The following tables show the minimum dimensions for a SAILOR 600 XTR GX-R2 ADU
mast with and without stays/braces. Note that the values are only guidelines - always
Mast with 3 braces
Max. free
mast length
(steel), (m)
Outer
Diameter
(mm)
Wall
Thickness
(mm)
Outer
Diameter for
brace (mm)
Thickness
for brace
(mm)
1.2 140 10 50 5.0
1.2 200 5 50 5.0
1.6 140 10 70 5.0
1.6 200 5 70 5.0
2 160 10 70 5.0
2 220 5 70 5.0
2.5 180 10 80 5.0
2.5 220 5 80 5.0
Table 2-4: Mast dimensions with 3 braces (S1000)
Mast with 2
braces
Max. free mast
length (steel),
(m)
Outer
Diameter
(mm)
Wall
Thickness
(mm)
Outer
Diameter
for brace
(mm)
Thickness
for brace
(mm)
1.2 160 10 80 5.0
1.2 200 5 80 5.0
1.6 180 10 80 5.0
1.6 220 5 80 5.0
2 180 10 80 5.0
2 240 5 80 5.0
2.5 200 10 80 5.0
2.5 260 5 80 5.0
Table 2-5: Mast dimensions with 2 braces (S1000)
