Installation of the ADU (S1000 antenna)
98-175666-C Chapter 2: Installation 2-18
• Always use all 4 bolts when installing the ADU.
You do not need to align the ADU with the bow-to-stern line of the ship. When
configuring the SAILOR XTR GX-R2 you make an automated azimuth calibration to
obtain the correct azimuth of the ADU.
Installation procedure
To install the ADU, do as follows:
1. Install the mast with the mast flange and have the 4 M12 bolts ready.
2. Undo all shipping buckles, take off the wooden top and remove the casing.
3. Remove the wooden platform.
4. Attach a webbed, four-part sling with a belt to all 4 lifting brackets.
5. Attach 2 tag lines of suitable length to 2 lifting brackets and man them.

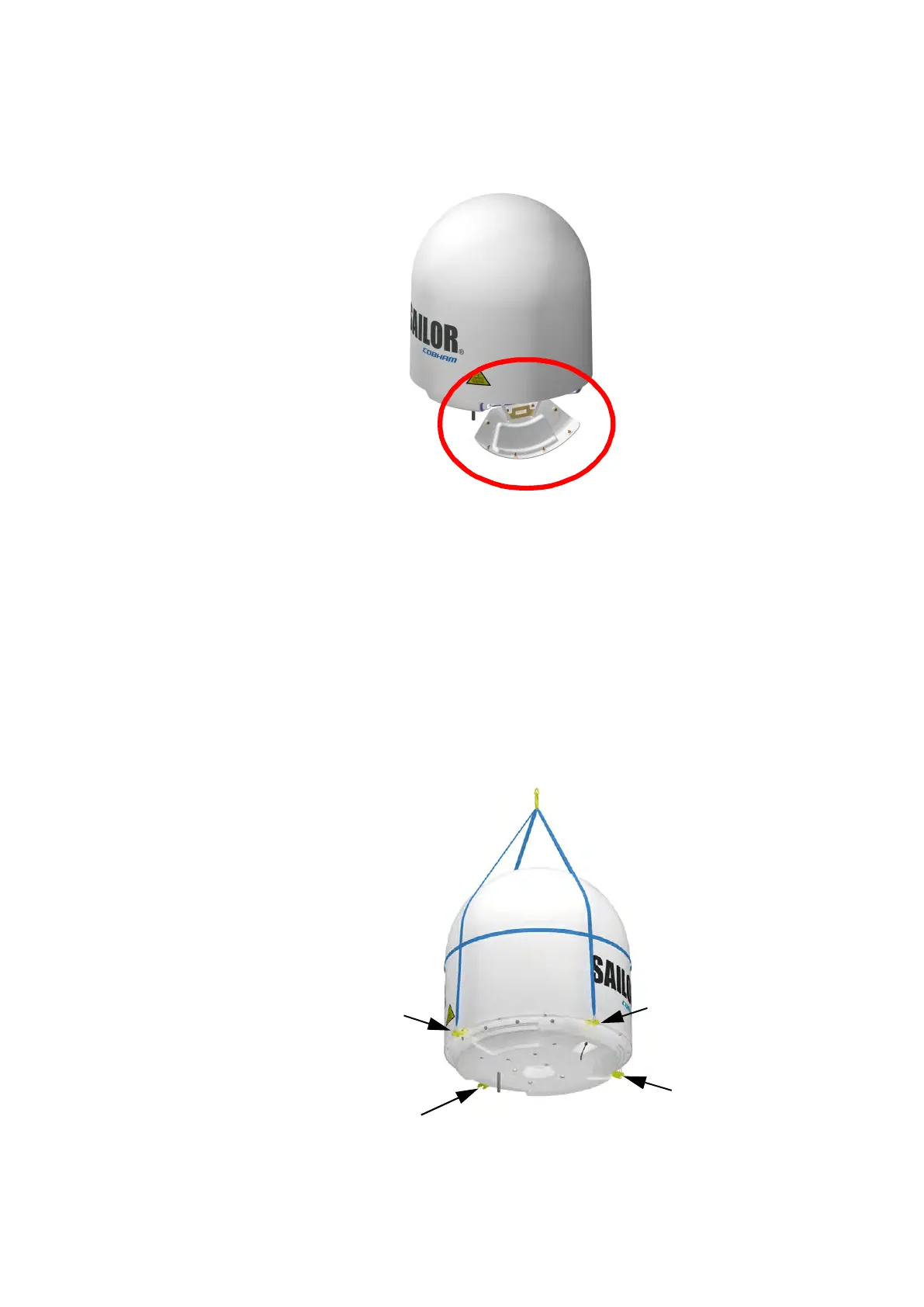

Figure 2-16: Free space for access to the service hatch
Figure 2-17: ADU installation, webbed sling attached to the 4 lifting brackets
