98-175666-C v
SAILOR 600 XTR GX-R2

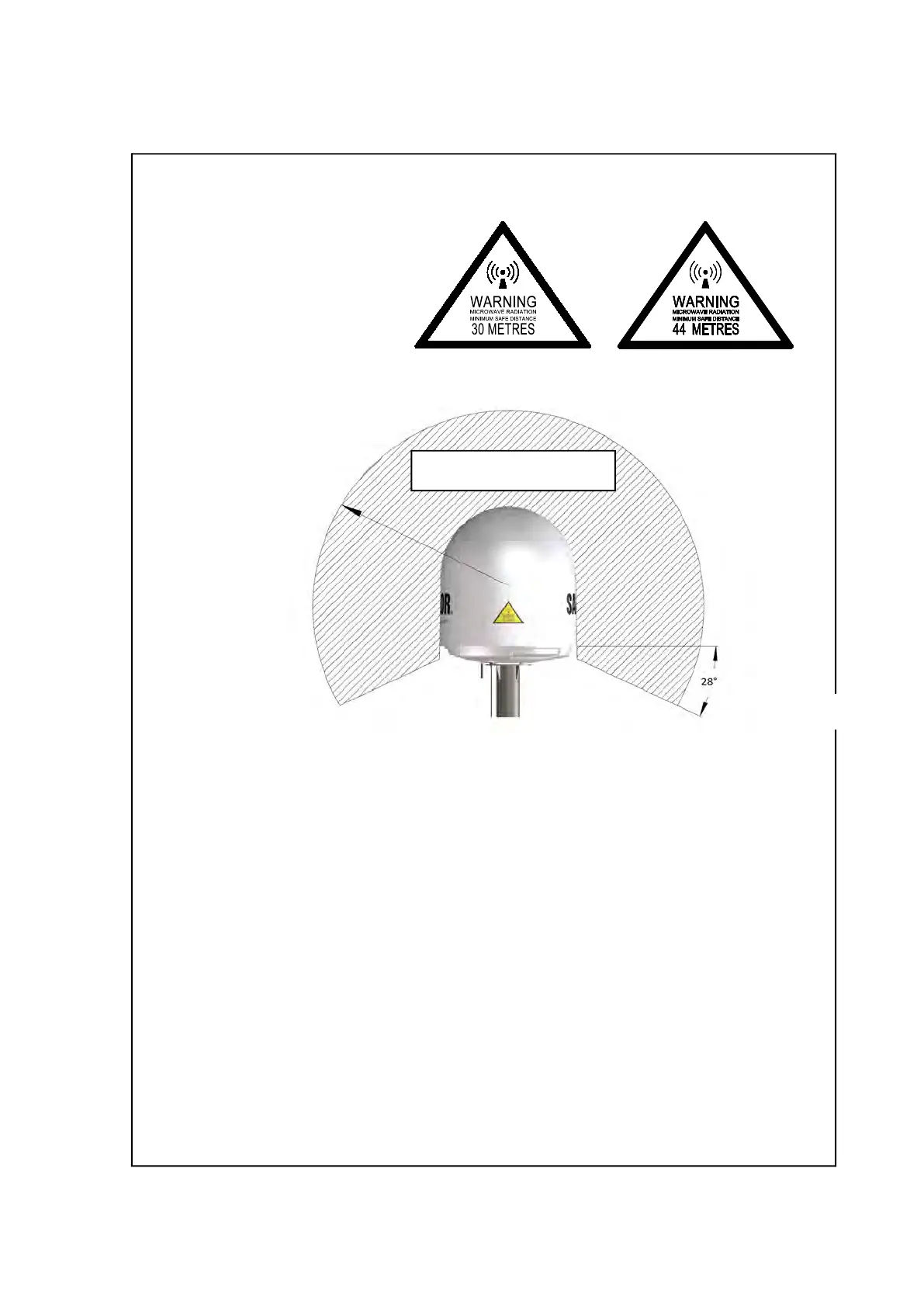

The minimum safety distance to
the antenna reflector on the
focal line is 30 m for SAILOR XTR
GX-R2 4.5W, and 44 m for SAILOR
XTR GX-R2 9.0W, based on a
radiation level of 10 W/m
2
. No
hazard exists >28° below the
antennaʼs mounting plane. Refer
to the drawing below.
No-transmit zones
In order to protect personnel no-transmit zones can be programmed. For further
information see Blocking zones – azimuth and elevation on page 2-5.
Distance to other equipment
Do not move the Above Deck Unit closer to radars than the minimum safe distance
specified in section Interference from radar, GPS/GNSS, L-band and other transmitters on
page 2-13 — it may cause damage to the Above Deck Unit.
Compass Safe Distance:
SAILOR 1000 XTR GX-R2 4.5W and 9.0W antenna (ADU): min. 140 cm (IEC 60945
SAILOR 600 XTR GX-R2 4.5W and 9.0W antenna (ADU): min. 140 cm (IEC 60945).
SAILOR 7516A BDU (Below Deck Unit): min. 30 cm (IEC 60945).
SAILOR 7023A GMU (GX Modem Unit): min. 40 cm (IEC 60945).
Service
User access to the interior of the BDU is prohibited. Only a technician authorized by
Cobham SATCOM may perform service - failure to comply with this rule will void the
warranty. Access to the interior of the Above Deck Unit is allowed. Replacement of certain
MICROWAVE RADIATION
