• 1 x Crane or telescope forklift
(min 1000 kg at 12 meters)
• 2 x 24 mm wrench
• 1 x 4 mm Allen key
• 16 x M5x16 bolts and washers
• 4x End-pieces
• 8 x M16x100 bolts, nuts and
washers
Procedure
1. Make sure, that safeguards are not installed in the ends of the Y-axes.
2. Lift the axis so it is levelled horizontally as in Error! Reference source not found..
3. Align the wheels and cogs on X-axis with the rails and racks on the Y-axis on both sides.
4. Carefully push the wheels in place (see Figure 8).
5. Push the entire X-axis into the middle of the Y-axis before you loosen the crane straps.
6. Mount all end-pieces and safeguards with two M16x100 bolts, nuts and washers

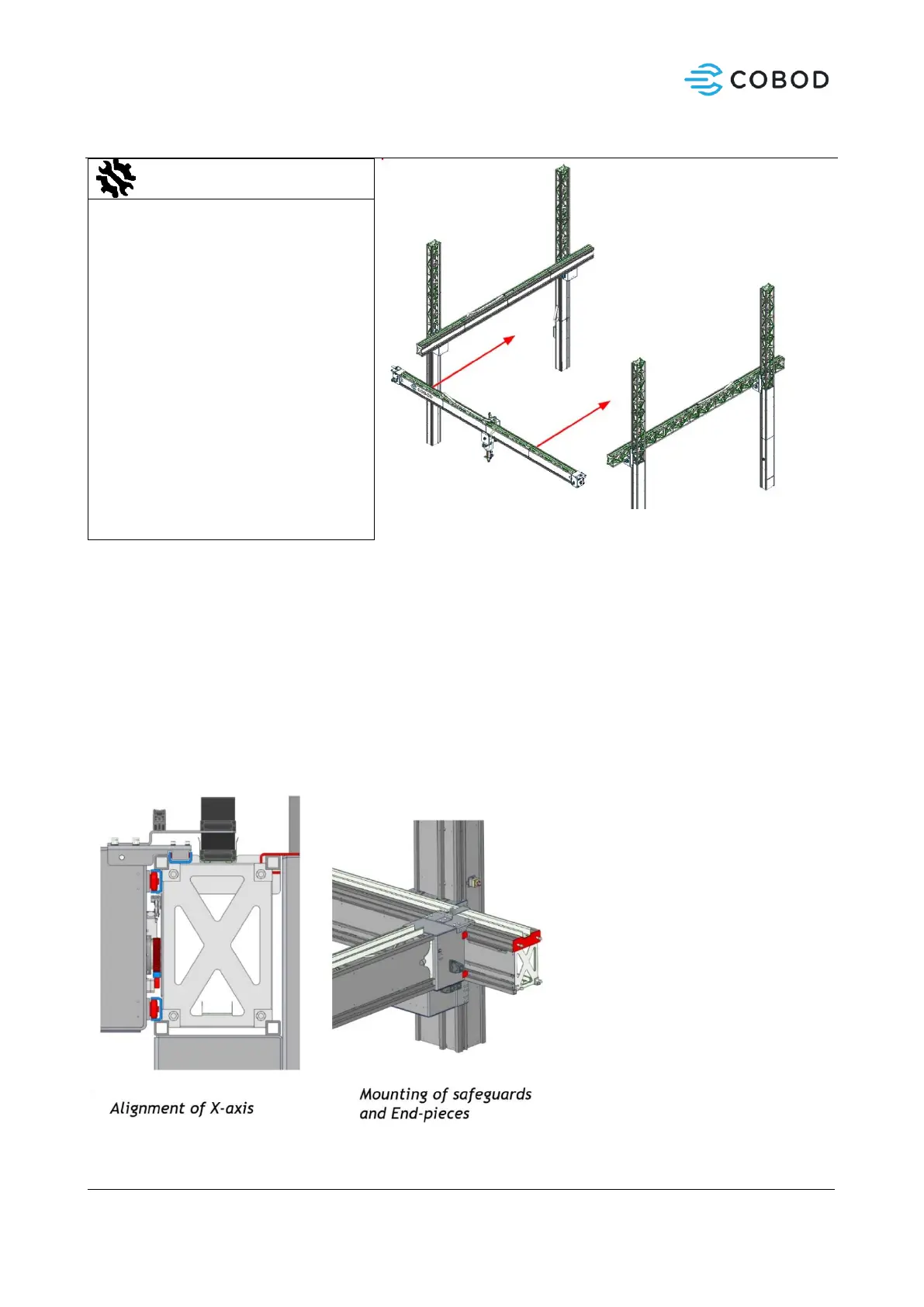

Figure 8: X-axis alignment and safeguard placement
