Mounting Instructions
1. Open the battery compartment on the side of the Door/window sensor, and insert
the 23A 12V battery
2. Use the double sided tape provided to mount the sensor on the door frame and the
magnet on the door.

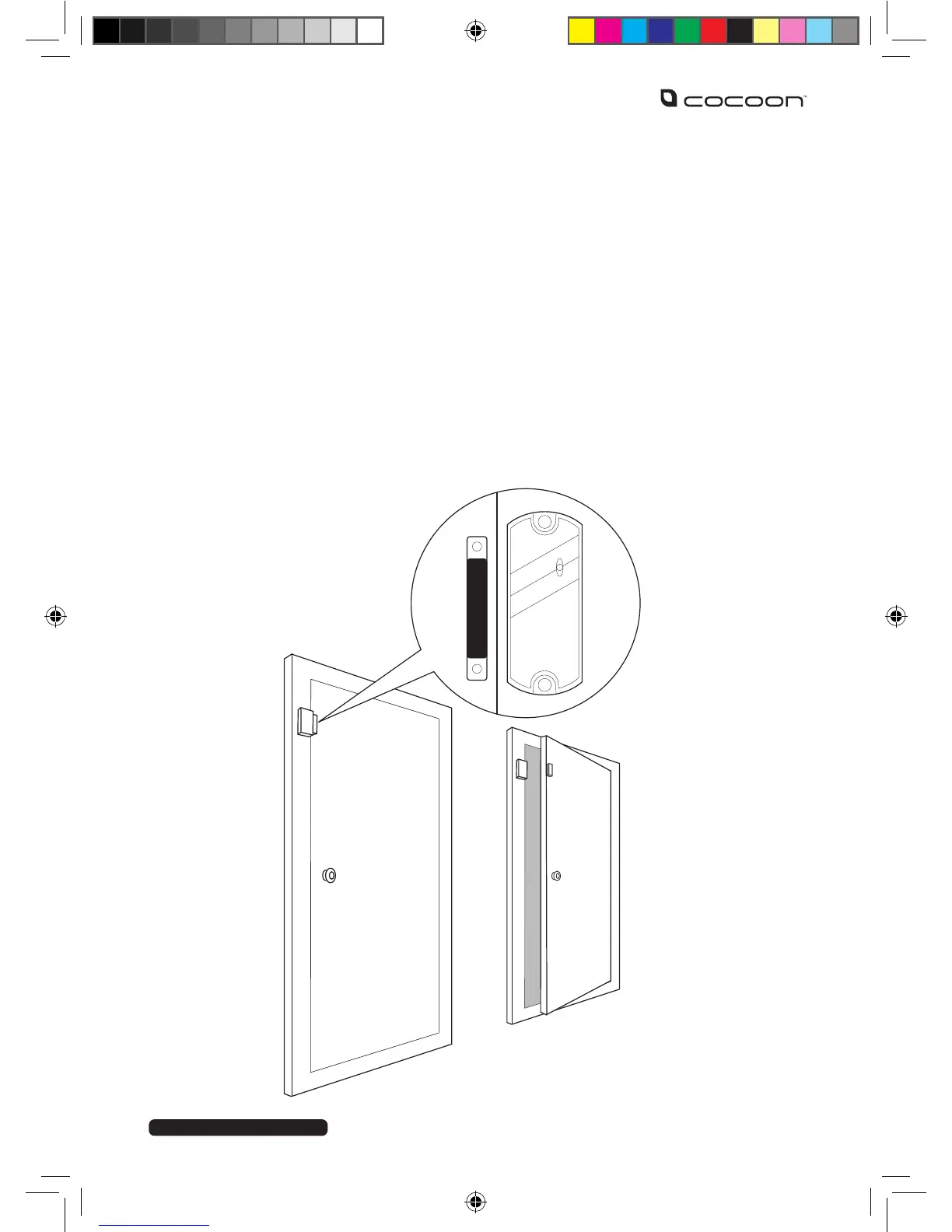

3. Make sure the magnet is on the correct side of the transmitter as shown in the
diagram.
Note: Mount the magnet no more than 1cm away from the transmitter.
Tip: Avoid mounting sensors in areas with a large quantity of metal or electrical wiring
as this can cause interference.
