TN855 CI-DSP-223 Telex (Vega) DSP Tone-Remote Adapter
MT-3/4 Radio Systems
TECHNICAL NOTES
Page 3 of 6
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN855, REV 12-0-0, © Nov 2018
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
A female DB25 connector on the back of the subrack (J10) can also be used for basic base connections to a Telex
DSP-223, using a straight-through male-to male DB25 cable as follows:
CBLC40-04225092 CABLE, DB25 MALE-DB25 MALE,3FT
WARNING: JU108 must be confi gured correctly or damage can occur. JU108 A for +13.8 Vdc / DSP-223, as
shown in Figure 2.

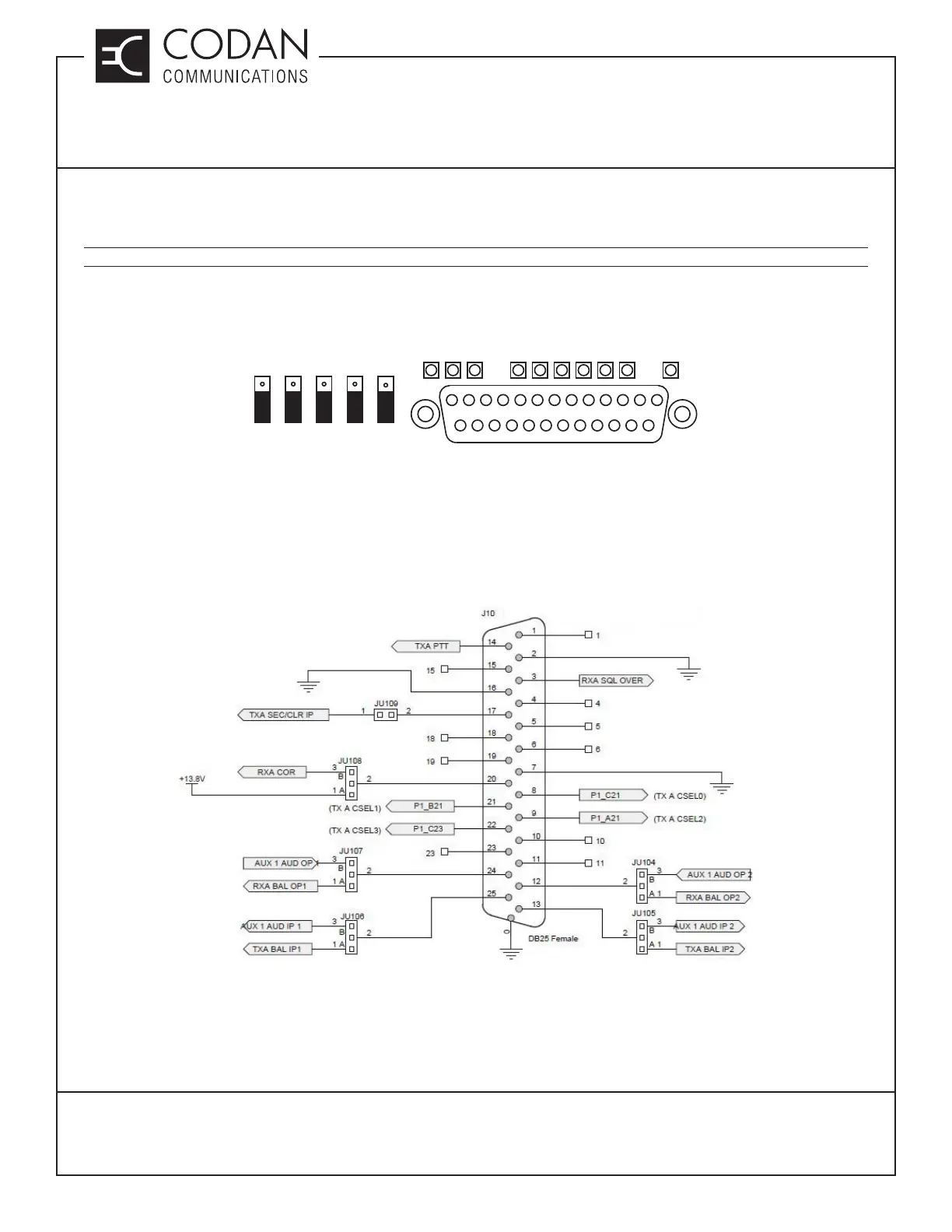

Figure 2: Jumper positions for DB25 connector
DB25 Connector (J10) Schematic
Figure 3: DB25 Connector Schematic Diagram
