TN652 CI-RC-4M-G2 Multiple Link Controller
MT-4 Radio Systems
TECHNICAL NOTES
Page 4 of 10
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN652, REV 3-0-0, © Nov 2018
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
Each link on the grid can be programmed separately for a diff erent confi guration. Three diff erent link confi gurations
are shown in Figure 4: COR Controlled Link, DTMF Controlled Link and a Conditional Link (with both CTCSS and
NAC conditions, as well as Channel Selection capability).

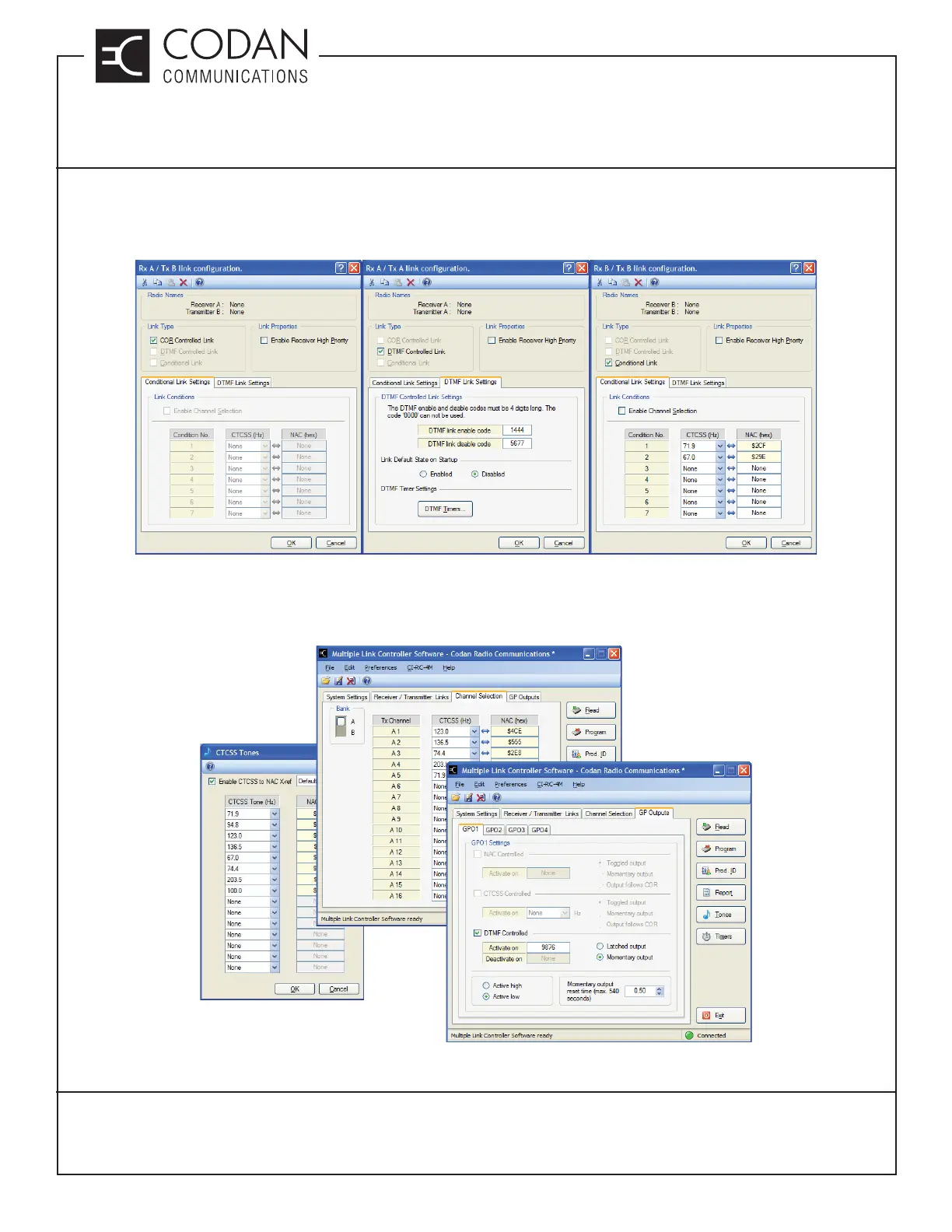

Figure 4: Link Confi gurations
Figure 5 shows the CTCSS selection window (CTCSS tones need to selected globally for the CI-RC-4M-G2),
Channel Selection window and General Purpose Output window.
Figure 5: CTCSS Tones, Channel Select and General Purpose Outputs
