Multiple Link Controller Programming:
The CI-RC-4M-G2 multiple link controller is software programmable using the MLCS (Multiple Link Controller
Software). The MLCS allows fl exible programming options for the radio system. A type A to 5 pin mini-type B USB
cable is used to connect the USB port of the computer to the USB port on the front panel of the controller. The
System Settings and Receiver / Transmitter Links windows are shown in Figure 3.

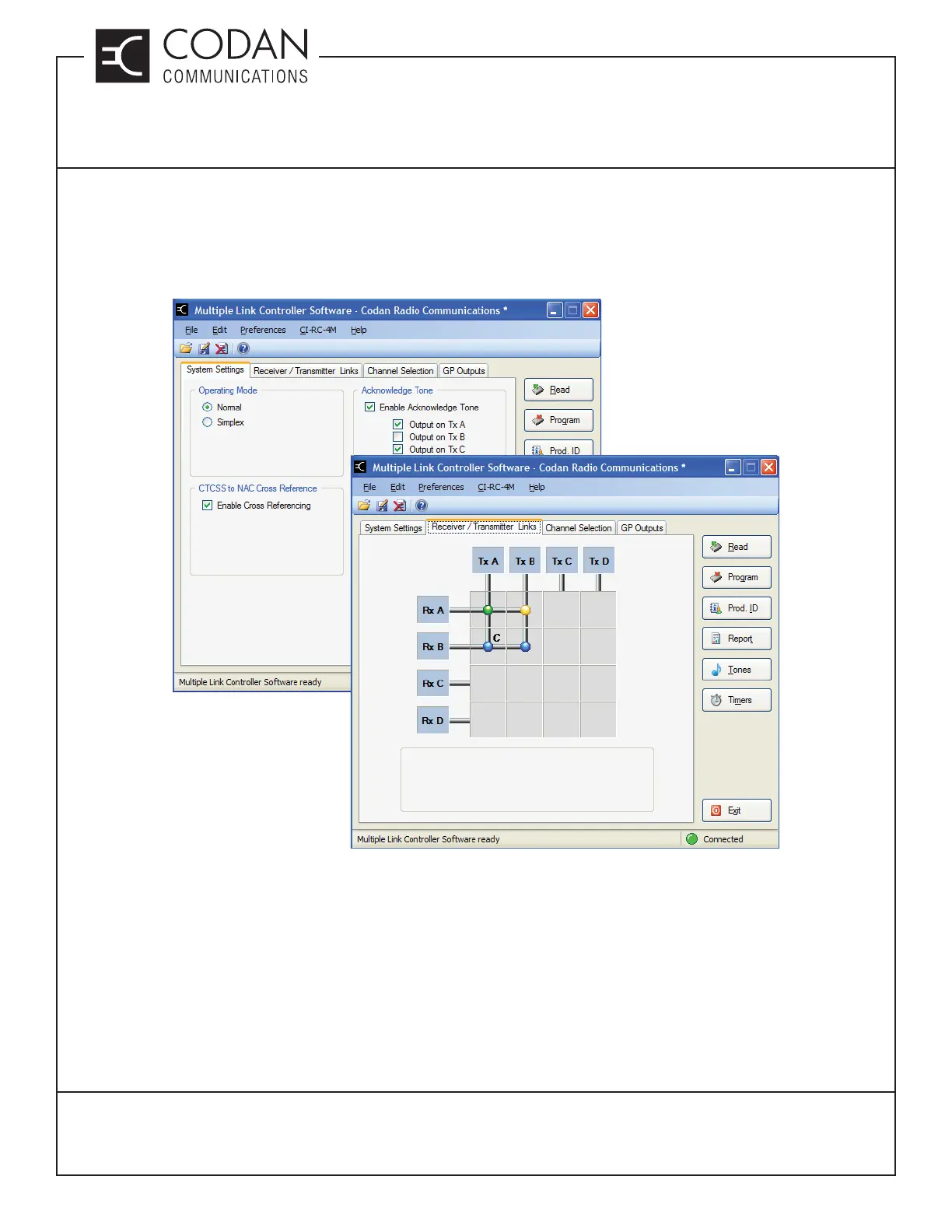

Figure 3: Sysytem Settings and Receiver / Transmitter Links
The Receiver / Transmitter Links window allows for a wide variety of complex repeater confi gurations using a link
confi guration grid. The grid uses color coding to indicate diff erent connection settings.
