TN661 UIC-5 Universal Interface Card
MT-4 Radio Systems
TECHNICAL NOTES
Page 2 of 6
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN661, REV 2-0-0, © Jan 2019
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
The UIC supports all of the following features:
• Channel and Bank control of receiver and transmitter modules (2 banks of 16 channels each).
• Detect the mode (analog or P25) of an inbound call on the receiver and report to the console.
• Receiver squelch selection (muted or unsquelched) controlled by the console.
• Clear the encryption keys from all encryption-equipped radio modules through the UIC’s front panel Zeroize Key
push button.
• Control and monitoring of 8 digital general purpose input and output (GPIO) signals from the console. The 4 inputs
are 10 mA max., 0 to +1 Vdc low / +2 to +13.8 Vdc high. The 4 outputs are 20 mA max., 0 Vdc low / +5 Vdc high.
• Control and monitoring of 8 analog GPIOs for use with external equipment. The 4 inputs are 0 to +3.3 Vdc, 3 k
impedance. The 4 outputs are 20 mA max., 0 to +3.3 Vdc. Analog I/O resolution is10 bits (3.22 mv / bit = 1 LSB).
• Programmable simplex mode operation.
• Local repeating under the control of the console, or automatically when the UIC is not connected to a console.
• Current draw of 200 mA maximum.
• Audio Reception and Transmission using IMBE™ (P25) or u-law PCM (analog).
• Passes all received P25 LCW and ESW data to the console (NAC, TGID, MFID, ALGID, KID, etc.).
• Full end-to-end digital encryption if supported by the console and subscribers.
• Outbound audio buff ering when transmitting P25 mode calls, with a programmable buff er length.
• supports DFSI v2 P25 Packet Data.
Console Systems
The UIC will interface with the following P25 DFSI consoles:
Avtec Scout
Catalyst IP FSI Gateway
InterTalk (Pantel)
Moducom UltraCom IP
Bosch / Telex C-Soft (P25 version)
Zetron Acom
Transmitter and Receiver Firmware Requirements
The UIC-5 requires that the MT-4E transmitter be fi rmware version 2.10.1 or later. The UIC-5 will work with any
MT-4E receiver fi rmware.

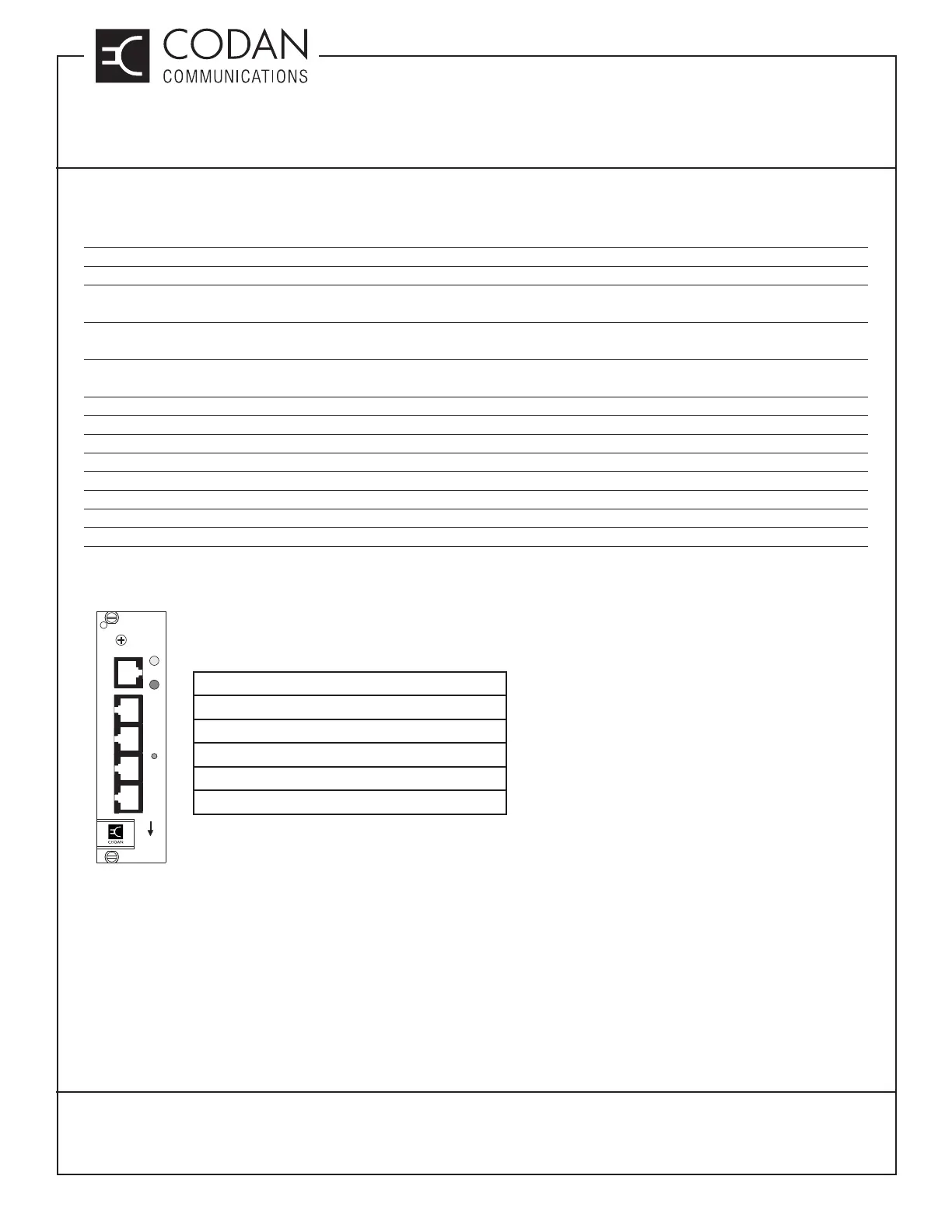

UIC
RX B
TX B
RX A
TX A
PULL DOWN
TO REMOVE
ETHERNET
ZEROIZE
KEY
