Code 2600 User Manual

C007964_01_CR2600_User_Manual

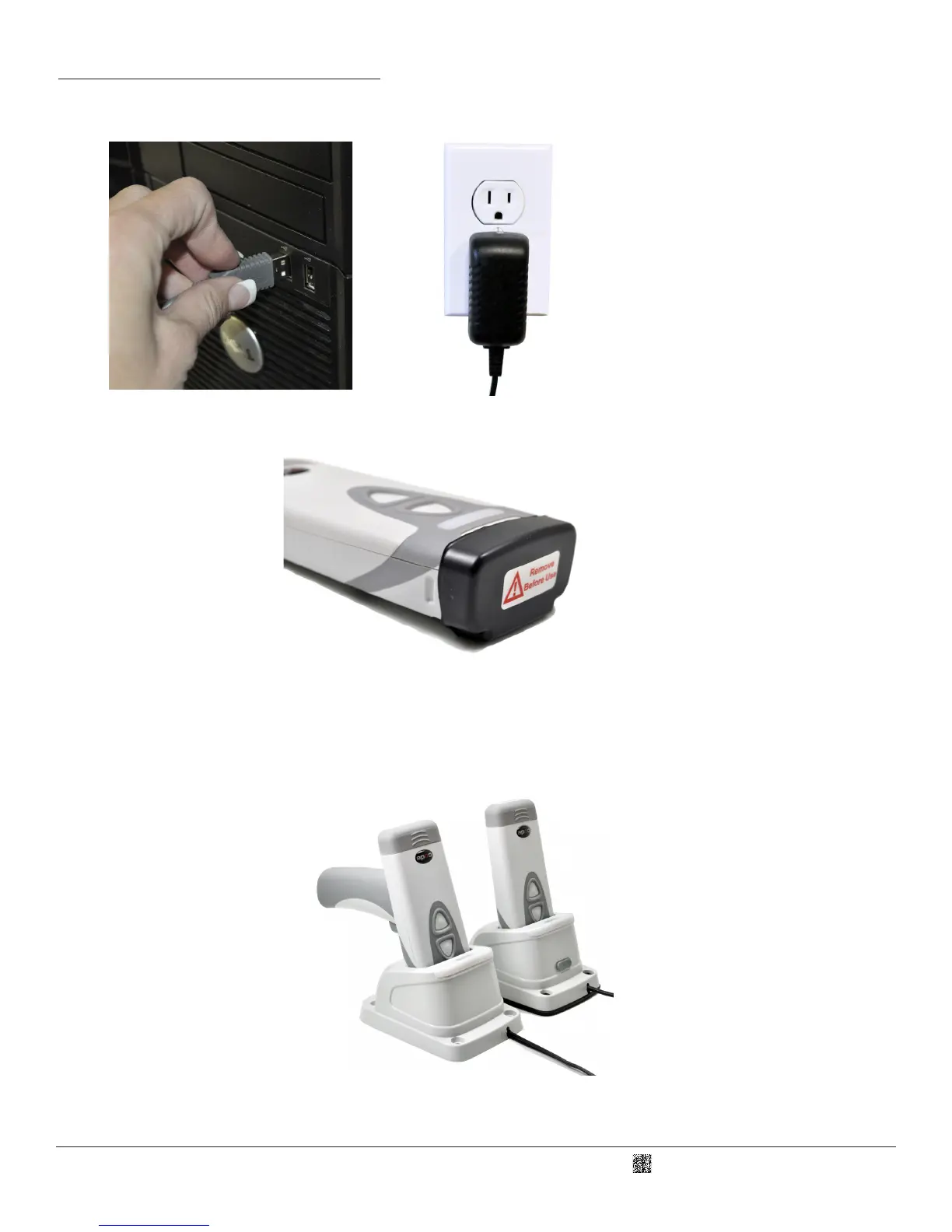

3.0 - Charging the CR2600 Cont.
2. Plug the USB cable into the computer’s USB port or the power adapter into the wall outlet.
3. Remove the plasc ‘Remove Before Use’ cap, and place the reader into the Charging Staon.
Note: Baeries ships with approximately 50% baery life and should be completely charged before inial use. Approximate me
to charge a depleted baery is 4 hours via USB cable, and 2 1/2 hours via AC power supply.
2

Code 2600 Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Voltage	5 VDC ± 10%
Resolution	4 mil
Interface	USB, RS232, Keyboard Wedge
Supported Barcodes	Code 39, Code 128, UPC/EAN, Interleaved 2 of 5, Codabar, MSI
Humidity	5% to 95% (non-condensing)
