1.3 - Reader Battery Installation
Attaching and Detaching the Lithium Ion Battery
The CR2 has an option to include a 1950 mAH Lithium Ion battery. To install battery, make sure the battery is in the
correct position (fi gure 1.1). Place the plastic tab of the battery into the reader (fi gure 1.2). Push the battery in and slide
the locking mechanism down (fi gures 1.3)
Charging the Lithium Ion Battery
The battery automatically charges everytime a USB or Powered RS-232 cable interface is attached to the unit and the
host is powered up.
Note: The RS-232 interface power adapter must be plugged into a wall socket for the unit to charge.
If you power-up the CR2 with a completely discharged battery it will take up to 10 minutes before the unit will become
operational.

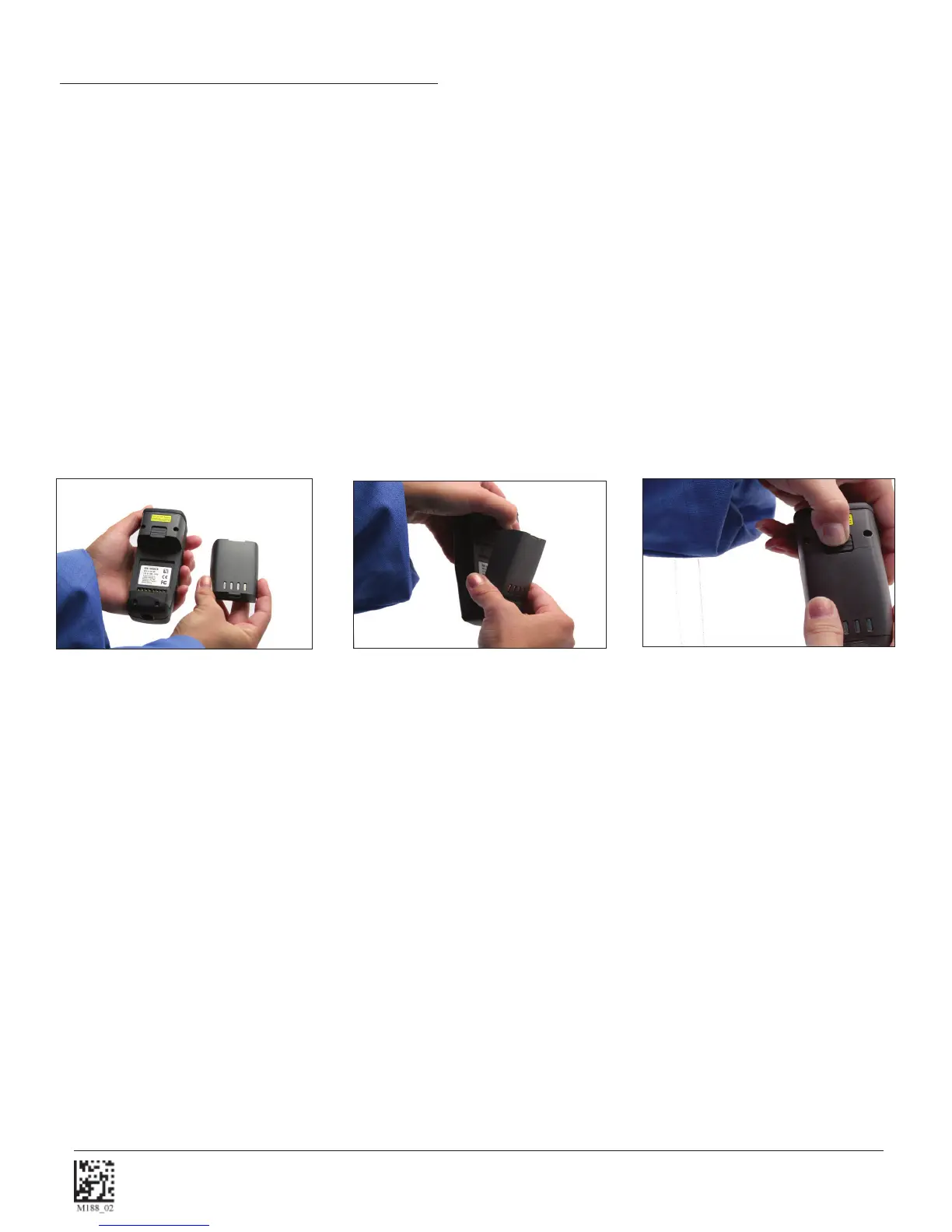

Figure 1.1
Figure 1.3
Figure 1.2
