C001537_15_CR2_User_Manual
22
Save Settings
1.7.9 - Con
fi
guration for Microsoft Bluetooth Stack Instructions
1.
Right click on the Microsoft Bluetooth Stack system tray icon, select “Open Bluetooth Settings”.
2.

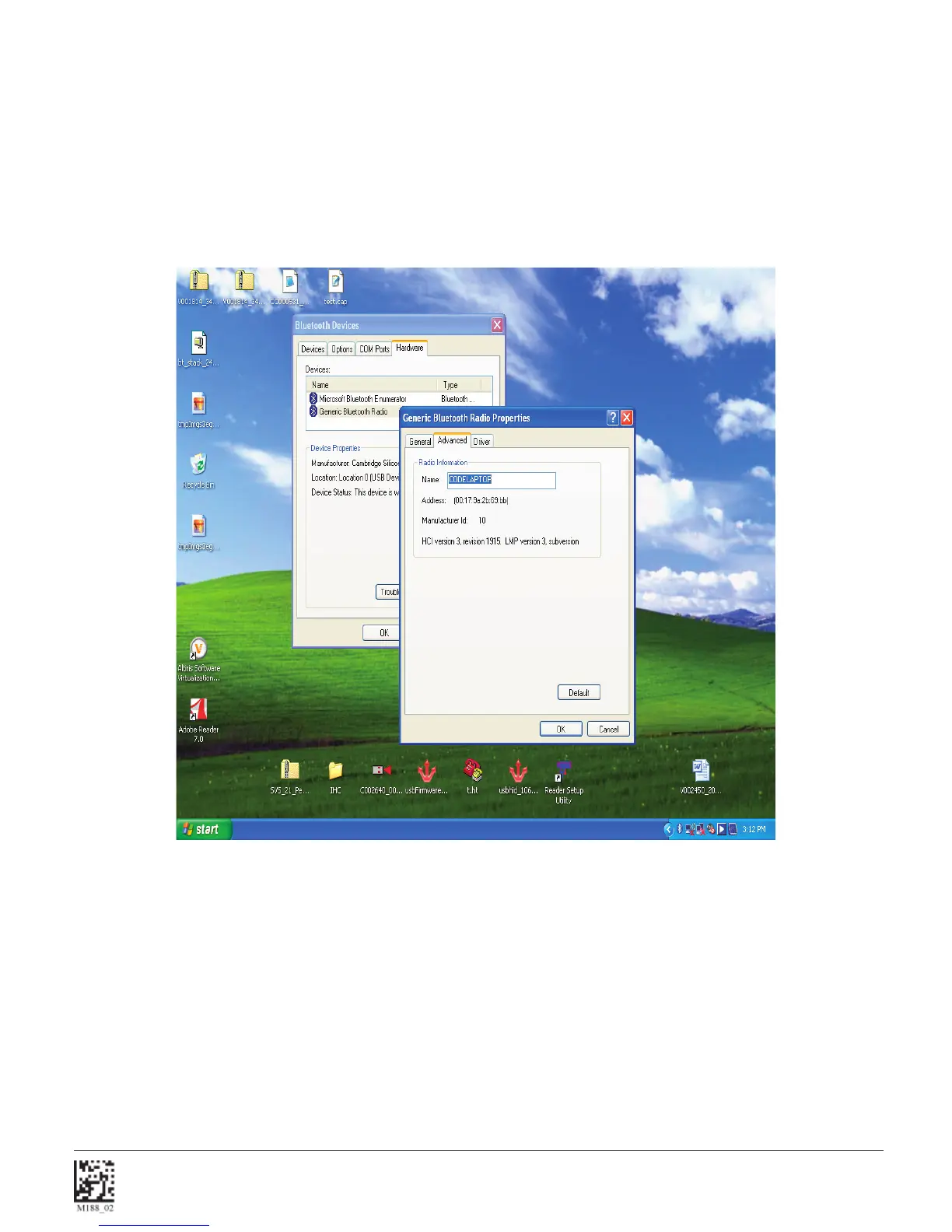

Go to the “Hardware” tab and select the “Generic Bluetooth Radio” and then click “Properties”. Next select the
“Advanced” tab. Note the
Address. For the example show below it is 00:17:9a:2b:69:bb.
27
29
Table of Contents
Default Chapter
2
Statement of Agency Compliance
2
Table of Contents
4
Chapter 1 - Getting Started
7
Introduction
8
Unpacking
9
Reader Battery Installation
10
Attaching Handles
11
Batch Operation
12
Introduction
12
Cabled Operation
14
CR2 as a USB Keyboard
15
Addional USB Communication Settings
16
Keyboard Support
16
PS/2 Cable Installation Guide
17
RS-232 (Serial) Cable Installation Guide
18
Additional RS-232 (Serial) Communication Data Bit Settings
19
Additional RS-232 (Serial) Communication Baud Rate Settings
19
Additional RS-232 (Serial) Communication Parity Settings
19
Cabled Reader - Time out Settings
19
Bluetooth Radio Operation
20
Introduction
20
Bluetooth Radio Auto Connect
22
Bluetooth Radio Auto Disconnect
22
Bluetooth Radio Time out Settings
23
Bluetooth Radio out of Range Notifi Cation Settings
23
Auto Save Last Bluetooth Address
23
Confi Guration for Belkin Bluetooth Manager Software (Version 1.4.2.10)
24
Confi Guration for Microsoft Bluetooth Stack Instructions
28
Installing Codexml Router Bluetooth Edition for Windows
30
CR2 Feedback Guide
31
Targeting and Reading Techniques
33
Imager Field of View and Resolution
34
Decode Zone
35
Chapter 2 - Optimization and Trigger Programming
36
Introduction
37
Global Trigger Optimization Matrix
38
Left Trigger Optimization Matrix
38
Left Trigger Programming
39
Right Trigger Optimization Matrix
39
Right Trigger Programming
39
Handle Optimization Matrix
40
Handle Trigger Programming
40
Continuous Trigger Optimization Matrix
41
Continuous Scan
41
Continuous Scan Settings
42
Continuous Scan - Sleep Time out
42
Continuous Scan - Trigger Delays
42
Continuous Scan - Duplicate Scan Delay
42
Motion Detection Scan Settings
42
Chapter 3 - CR2 Programming: Symbology Settings
43
Aztec Symbology
44
Codabar Symbology
44
Codablock F Symbology
44
Code 11 Symbology
44
Code 39 Symbology
45
Code 93 Symbology
45
Code 128 Symbology
46
Composite Symbologies
46
Data Matrix Symbology
46
Gocode Symbology
47
Interleaved 2 of 5 Symbology
47
Maxicode Symbology
47
Matrix 2 of 5 Symbology
48
Micro PDF417 Symbology
48
MSI Plessy Symbology
48
NEC 2 of 5 Symbology
48
Optical Character Recognition (OCR)
48
PDF 417 Symbology
49
Pharmacode
49
Postal Symbologies
49
QR Code Symbology
50
GS1 Data Bar ( Formerly RSS) Symbology
50
Telepen Symbology
51
Upc/Ean/Jan
51
Chapter 4 - Reader Feedback and Special Settings
52
Volume and Vibration Settings
53
Code Readability Index
53
Laser Settings
54
Reader Power off Settings
54
Reader ID and Firmware Version
55
Reader Settings Lock
55
Lock-Out Link Mode
56
Chapter 5 - Advanced Decode Performance
57
Set Targeting Tolerances
58
Windowing
59
Mirror Decoding
60
Chapter 6 - Adding a Prefi X or Suffi X and Reader Text Commands
61
Prefi X Settings
62
Suffi X Settings
62
Erase Prefi X and Suffi X Settings
63
Reader Text Commands
63
Chapter 7 - CR2: Maintenance and Troubleshooting
64
Reset Reader to Factory Defaults
65
General Safety Information
65
Warranty
66
CR2 Accessories
67
Frequently Asked Questions
67
CR2 Maintenance
67
