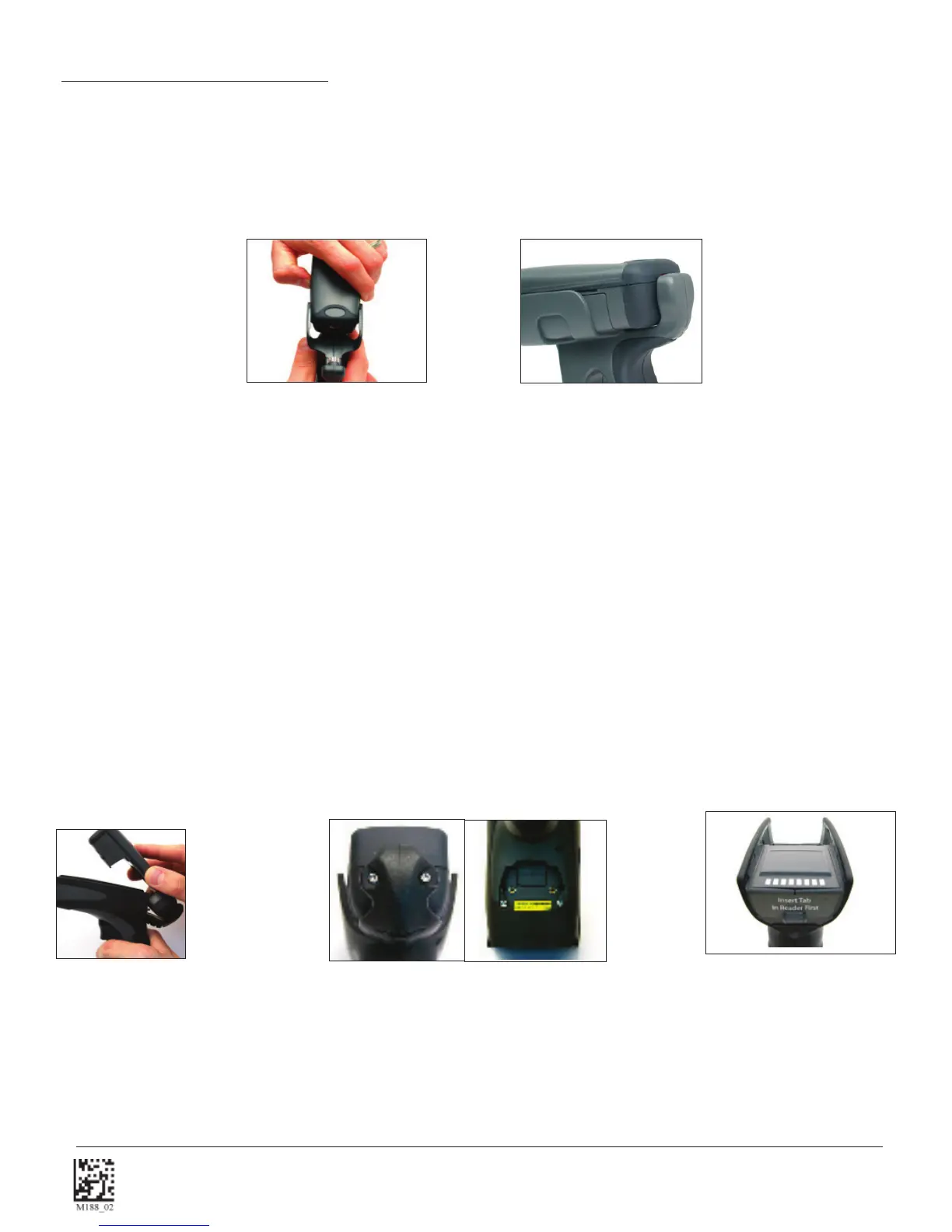

1.4 - Attaching Handles
H1 - Handle
1. Place the CR2 in the cradle of the handle and slide the unit back (Figure 1.4).
Be careful not to place fi ngerprints on the front glass when attaching handle.
2. Once the 8-pin DIN connector of the handle begins to enter the opening in the back of the unit, fi rmly
press the unit back until the unit is fl ush against the handle (Figure 1.5).
Figure 1.4
Figure 1.5
H2 - Ruggedized Cabled Handle
1. Make sure the reader has no battery or battery blank installed.
2. Insert the reader’s 8-pin DIN connector into the fl exable connector at the back of the H2 handle (Figure
1.6).
3. The reader ‘snaps’ onto the H2 handle utilizing the battery compartment.
4. The reader can be further secured to the handle with two threaded screws through the fl exible connector
and two more threaded screws on the underside of the reader and handle (Figure 1.7).
BH1 or BH2 Battery Handle
1. Make sure the reader has no battery or battery blank installed.
2. Insert the tab on the back of the BH1 or BH2 Handle into the reader’s recessed slot typically utilized to
secure the battery in place on the reader (Figure 1.8).
3. The reader ‘snaps’ to the handle utilizing the battery compartment (Figure 1.6). The reader will ‘quick
release’ from the handle to accommodate quick and easy battery charging.
4. Optionally, the reader can be further secured to the handle with two threaded screws on the underside of
the reader and handle (Figure 1.7).
Figure 1.8
Figure 1.7
Figure 1.6
