Cognex In-Sight 1720 Series User Manual

Installing In-Sight
®
1720 Series Wafer Readers
9
7. For Non-DHCP networks, click the “Use the following IP address” radio button
(Figure 2-5). The IP address, Subnet Mask, Default Gateway, Preferred DNS server
and Alternate DNS server fields, which are grayed-out, become active.

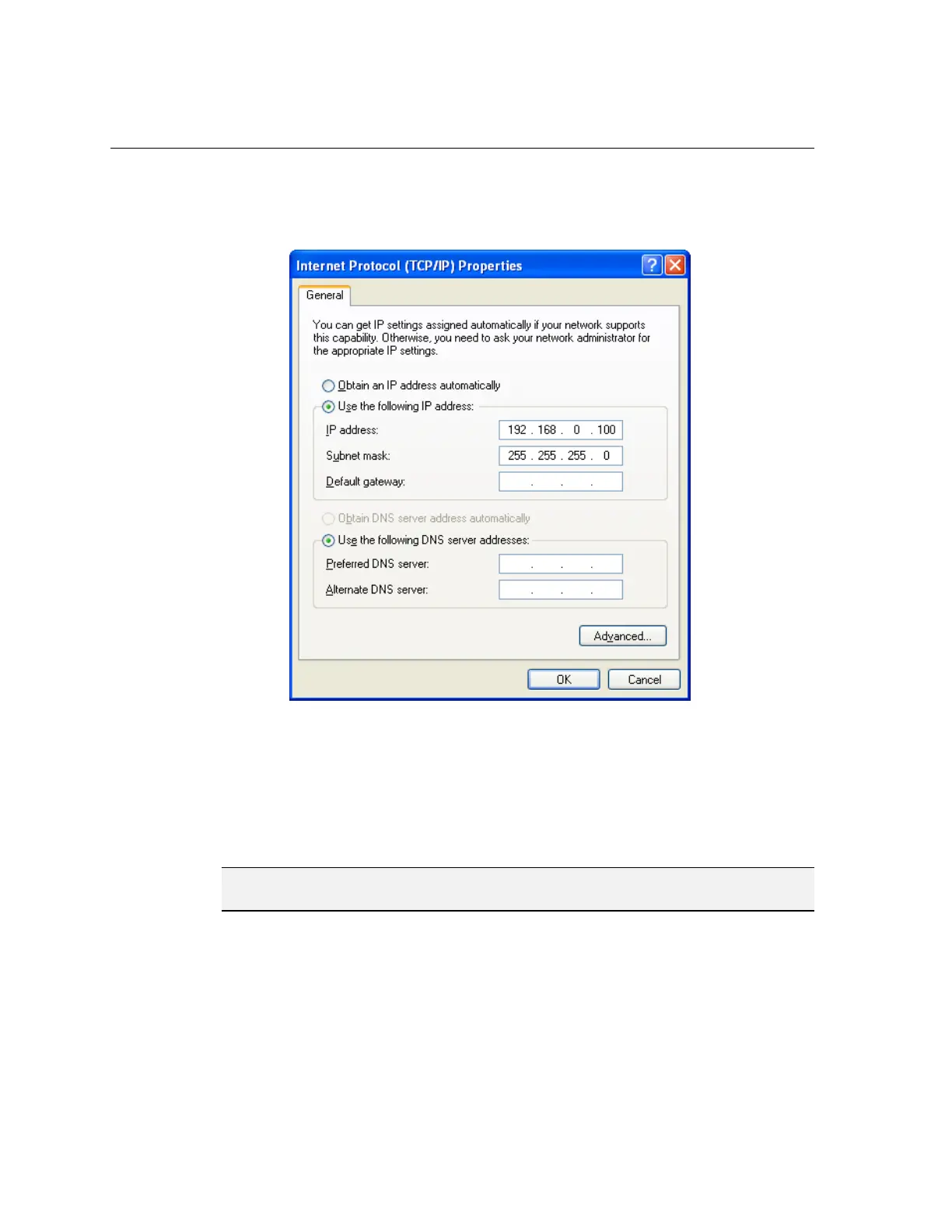

Figure 2-5: Select Network Protocol Dialog
a. Enter an appropriate IP address.
b. Enter an appropriate Subnet Mask. The Subnet Mask defines which portion of
the wafer reader’s IP address refers to the network and which part refers to the
host. The network portion of the IP address is the same for all hosts on the same
subnet, and the remainder is unique to each host. The default Subnet Mask
setting of 255.255.255.0 is usually appropriate.
NOTE Consult your network administrator to determine the appropriate Subnet Mask, Preferred DNS
server and Alternate DNS server.
8. Click OK.
9. Click Close, then restart Windows if prompted to do so.
