Coinco BA30 - Maintenance (Continued); Removing the Inlet Mask; Removing Mounting Frame and Grounding Spring; Removing Chassis from Mainframe

11
SECTION 4: MAINTENANCE
Removing the Inlet Mask
(see Figure 8 or 9)
Using a Phillips screwdriver, remove the three screws
that secure the mask to the mounting frame.
Removing the Mounting Frame and Static
Grounding Spring (see Figure 8 or 9)
Using a Phillips screwdriver, remove the screws that
attach the mounting plate and grounding spring to the
main frame.

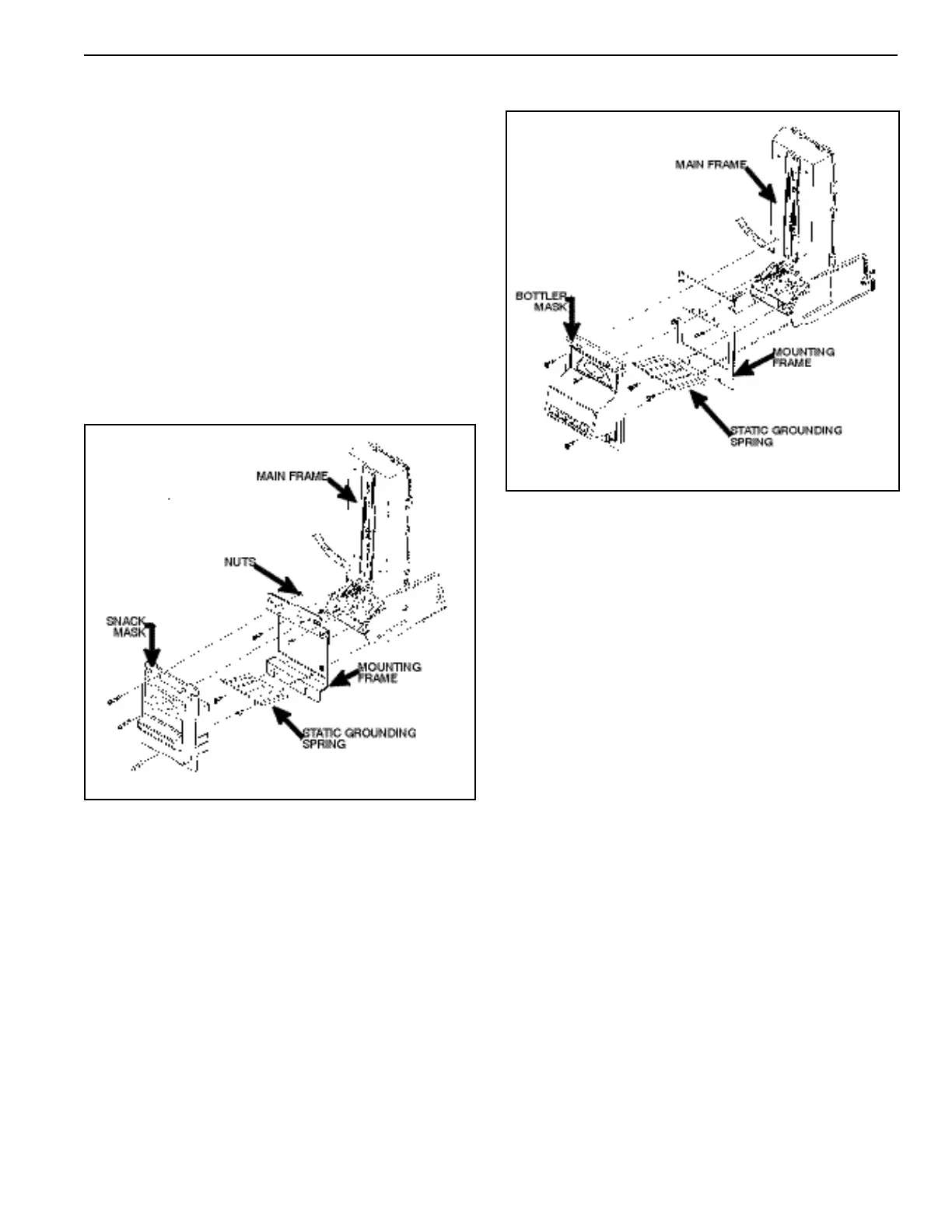

Figure 8
BA30B/BA32B
Figure 9
BA30S/BA32SA
Removing the Chassis from the Main-
frame
Free the bill box switch (if equipped) from the main
frame by sliding it toward the bill box area until it clears
the main frame. Let the switch hang. Remove the web
wrap or spiral wrap from the chassis harness. Spread the
main frame apart to release the two locating pins of the
chassis from the main frame then pull down on the
chassis. Carefully feed the chassis harness through the
opening in the main frame. Pull the chassis out through
the lower main frame opening.
