12
Figure 12
Removing the Encoder Sensor and
Stacker Board (see Figure 12)
Free the encoder sensor from the top of the transport
motor gear case assembly. Remove the Phillips screw
that secures the stacker board to the chassis and remove
the stacker board.
SECTION 4: MAINTENANCE

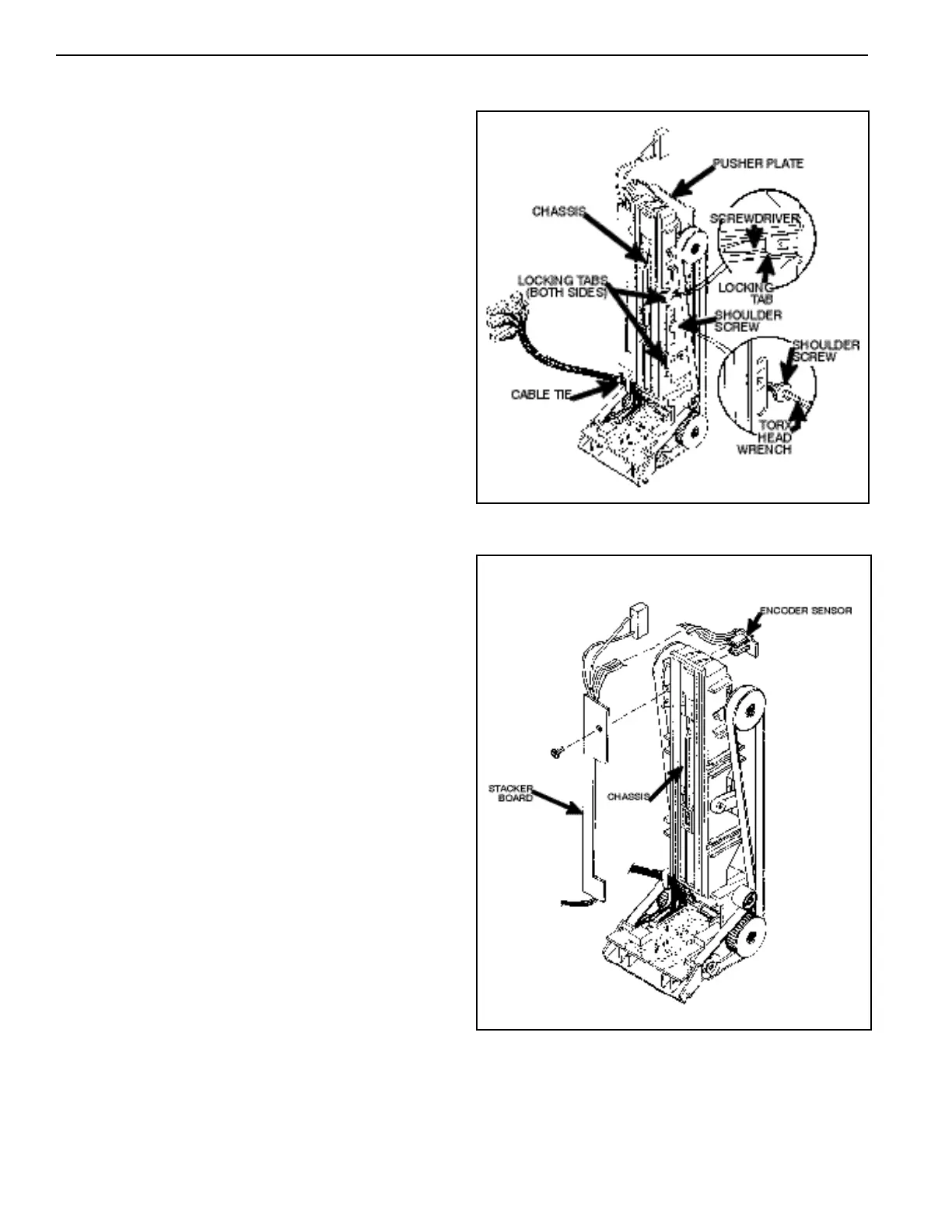

DISASSEMBLING THE CHASSIS
Removing the Pusher Plate from the
Chassis (see Figure 11)
Cut the cable tie that secures the chassis harnessing.
Remove the two T15 Torx head shoulder screws that
secure the pusher plate to the stacker gear box assembly.
Pull the pusher plate straight out until the locking tabs of
the stacker slides catch the chassis. Using a small
screwdriver, release the four tabs and remove the pusher
plate.
NOTE: Early models used 1/8" hex shoulder screws.
Figure 11
