Page 6 800 Series
SECTION 2: INSTALLATION

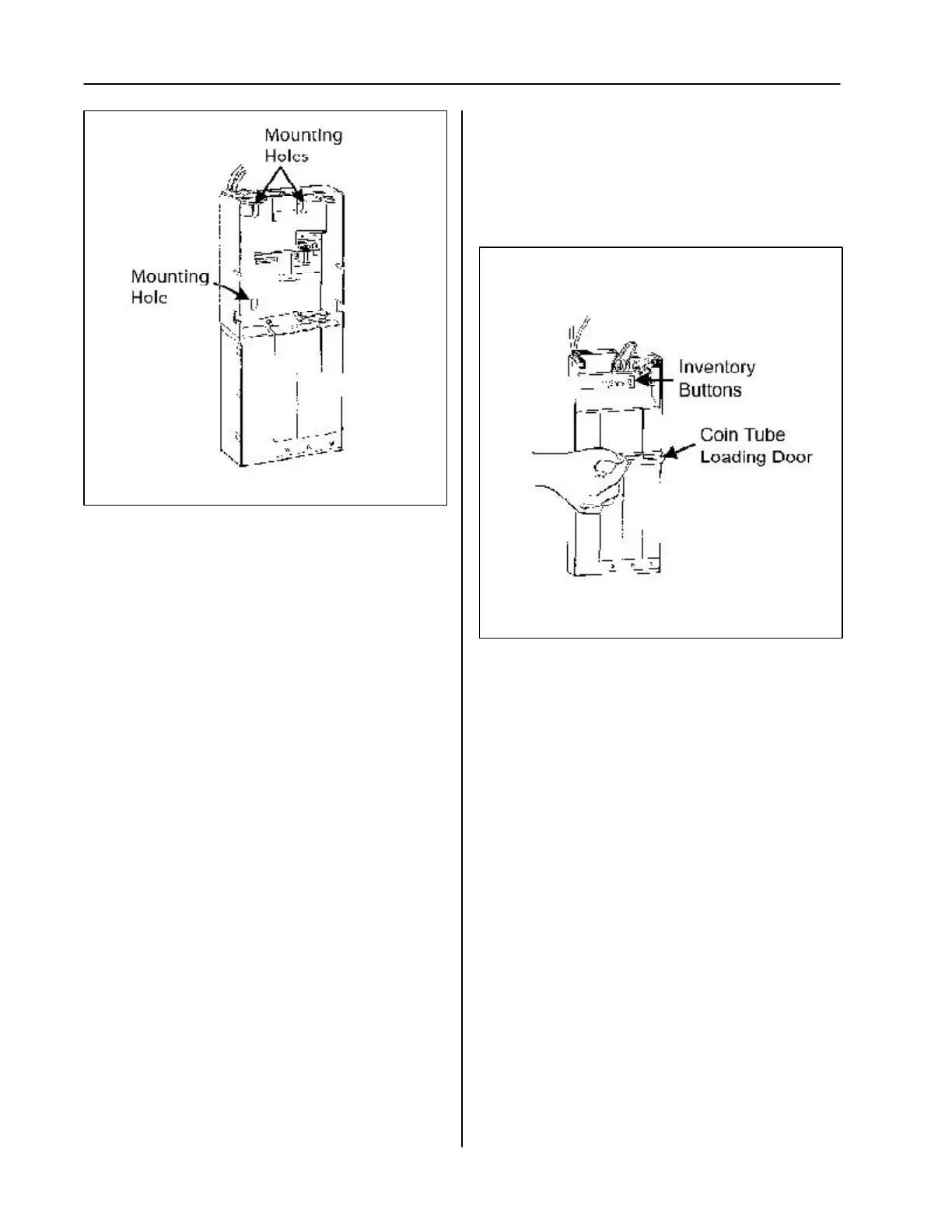

Figure 3
Figure 4
8. Press the top of the acceptor into the
changer housing until the acceptor latches
and locks.
9. If coin tube loading door is not locked
(additional option) hand load the four coin
tubes (see Figure 4). Tilting the coin tube
loading door open, load the four coin tubes.
Make sure all coins lie flat and that each
tube is filled at least to the 20% mark.
Payout at least two coins from each tube to
set tube counters.
Note: Hand loading the tubes will not give
an accurate audit reading. If audit is
required, the tubes should be loaded in Fill
mode see relevant section of this manual for
further details.
10. Check to make sure the tube cover and
acceptor studs are properly installed.
11. Test the coin changer with a variety of
coins to ensure proper operation.
