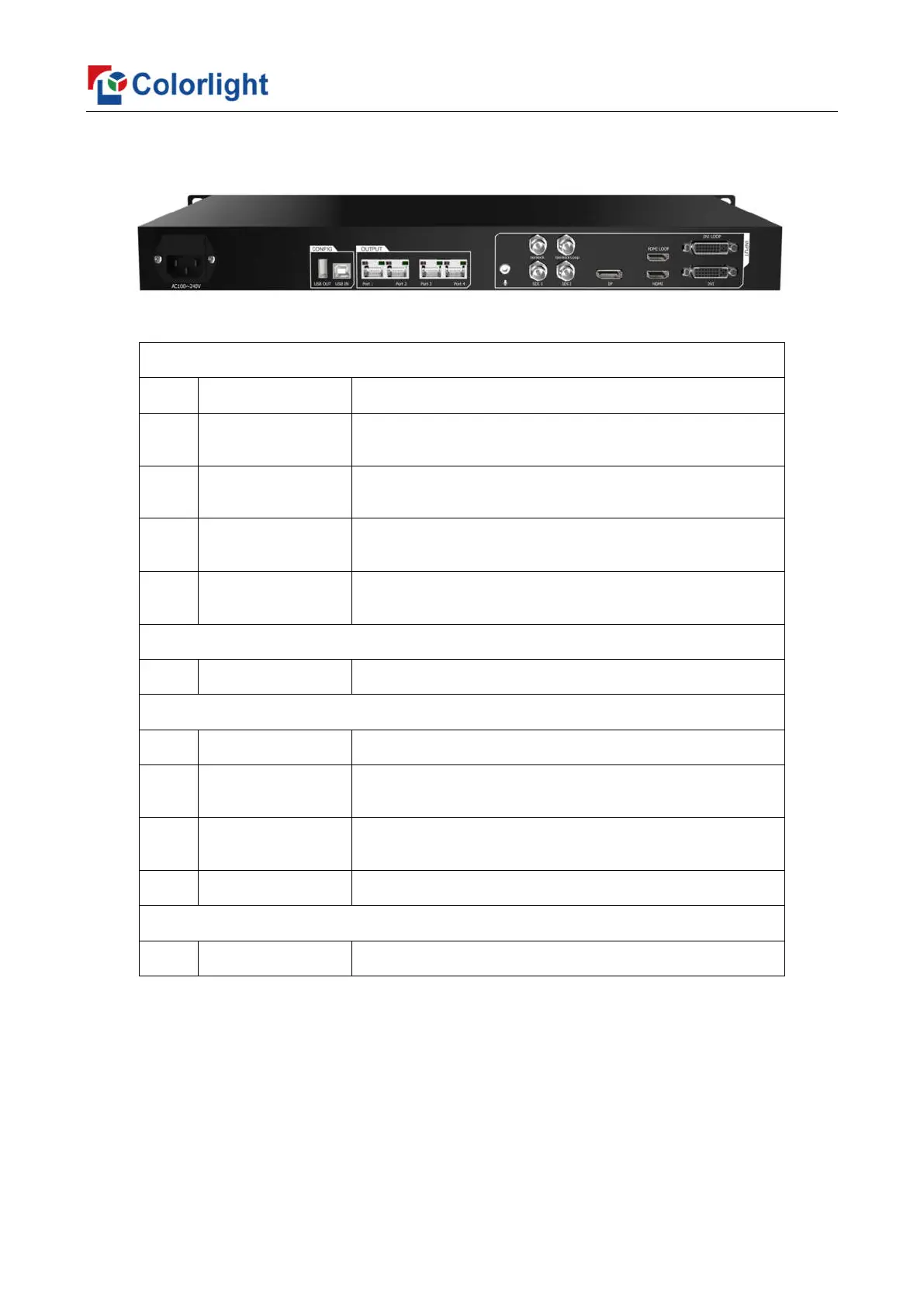

Back Panel
Input Interface
1 SDI 2 SDI inputs, 1080P
2 DP
DP input, VESA Standard, support input resolution up to
1920*1200@60Hz
3 HDMI
HDMI input (with loop), EIA/CEA-861 Standard, support
1920*1200@60Hz, support HDCP
4 DVI
DVI input (with loop), VESA Standard (support
1920*1200@60Hz), support HDCP
5 AUDIO
Audio input, input audio signal and transmit to the
multifunction card
Output Interface
1 Port1/2/3/4 RJ45, 4 Gigabit Ethernet outputs
Controlling Interface
1 USB OUT USB output, cascading with next controller
2 USB IN
USB input, which connects with PC to configure
parameters
3 Genlock
Genlock signal input ensures synchronism of display
4 Genlock Loop Genlock synchronous signal loop output
Power
1 AC 100~240V AC Power Interface
