Pwr management of splitted group
Important setpoints: Control group, GroupLinkLeft, GroupLinkRight

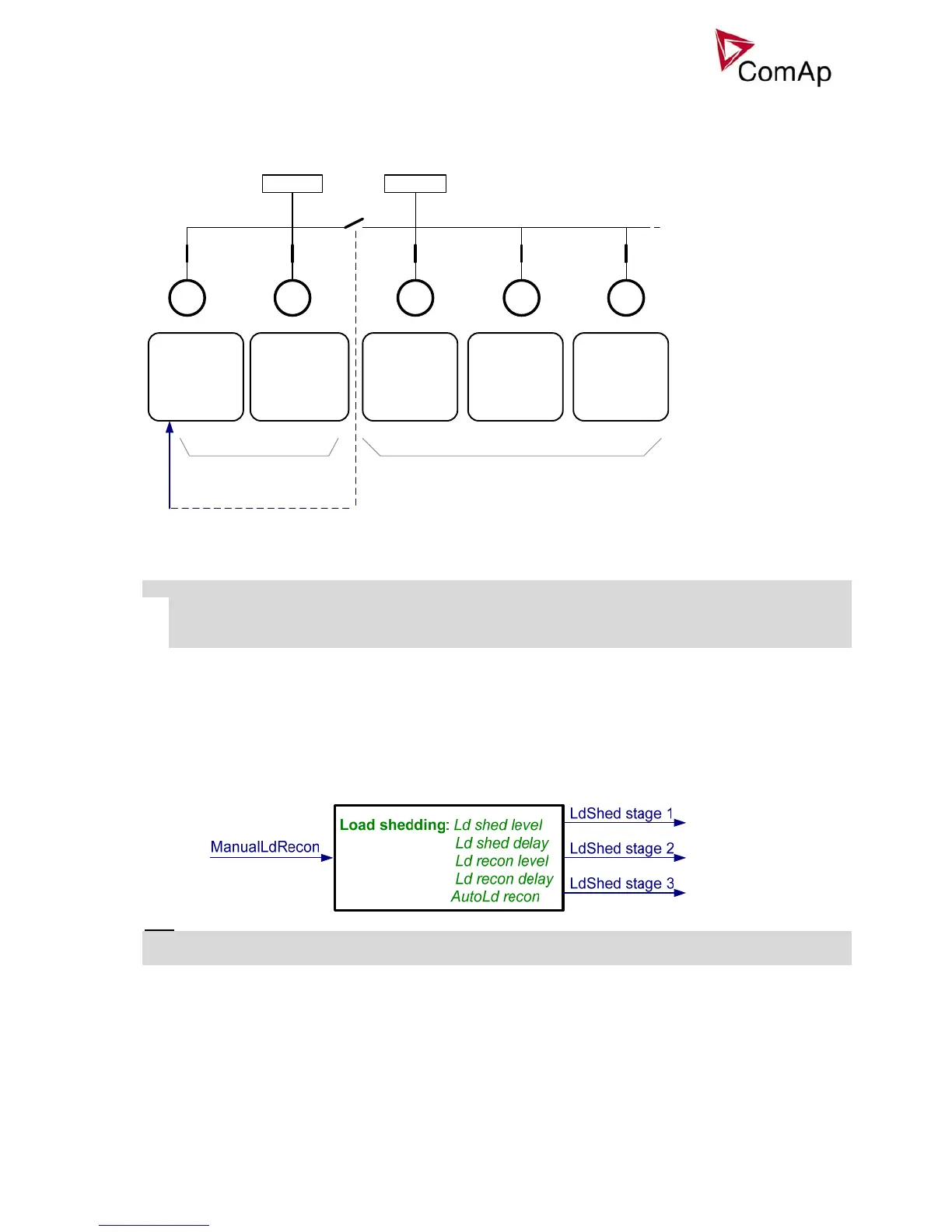

When a Bus-tie disconnects the gen-set group the Power management can operate separately on each of
them.
G1 G2 G3 G4 G5
LOAD1 LOAD 2
Basic settings:
Contr.addr = 1
Pwr management:
Control group = 1
GroupLinkLeft = 1
GroupLinkRight = 2
BTB
BI Group link
1.controller
2.controller
3.controller 4.controller 5.controller
Basic settings:
Contr.addr = 2
Pwr management:
Control group = 1
GroupLinkLeft = C
GroupLinkRight = C
Basic settings:
Contr.addr = 3
Pwr management:
Control group = 2
GroupLinkLeft = C
GroupLinkRight = C
Basic settings:
Contr.addr = 4
Pwr management:
Control group = 2
GroupLinkLeft = C
GroupLinkRight = C
Basic settings:
Contr.addr = 5
Pwr management:
Control group = 2
GroupLinkLeft = C
GroupLinkRight = C
Control group 2.
Control group 1.
BTB feedback
Load shedding
All LOAD SHED outputs are activated (closed) to trip the unessential load when gen-set goes to island:
a) When GCB is closed after mains fail and gen-set starts in AUT mode.
b) When MCB opens from parallel to mains operation in AUT mode.
c) Before MCB is opened in MAN mode by button.
The load shedding function is active in all controller modes except OFF.
Load shedding has three steps and each step is linked with its own Load shed x binary output. There is only
one load shed level and delay for all three steps as well as recon level and delay. Load shed can only move
from one step to the next, e.g. No LoadShed to LdShed S1 to LdShed S2 to LdShed S3 and vice versa.
If manual reconnection of the load is desired, the AutoLd recon setpoint needs to be disabled (AutoLd recon
= DISABLED) and the MAN load recon binary input needs to be configured.
Rising edge on this input resets the controller to a lower stage, but only if the load is under the Ld recon level
at that moment.
Hint:
If no Load Shedding outputs are configured, there is no record to history and no scrren timer indication of the
activity of this function.
