Fuel Pump
Output closes when the value of Fuel Level lies under the value of Fuel Pump ON setpoint and opens
when value of Fuel Pump OFF is reached.
Hint:
Fuel pump function is internally connected to analog input 3 to monitor the actual fuel level in tank. It is
a prerequisite for this function to use a fuel level sensor at this analog input.
Temp Switch
This switch is assigned to the controller’s analog input 2 – commonly used for water temperature
sensing. The setpoints TempSwitch ON and TempSwitchOFF for on and off level adjustment are
located in the setpoint group Engine Params. Typical usage for this binary output can be activation of

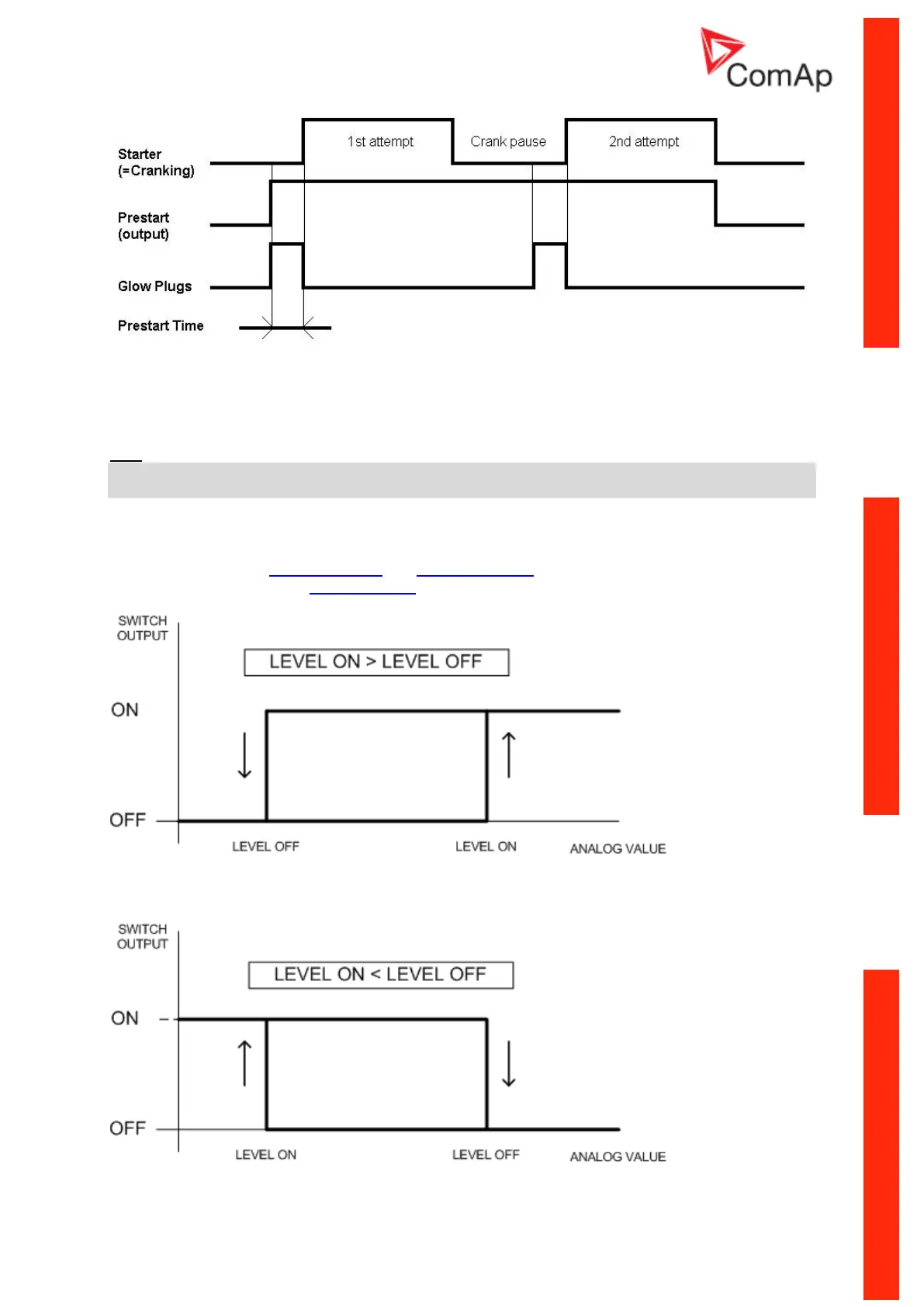

fans or heaters. The output behaves based on the setpoint adjustment as described on picture lower:

ComAp intelilite nt amf25 Specifications

General

Communication Ports	RS232, RS485, USB
Power Supply	8-36 VDC
Number of Digital Inputs	8
Number of Digital Outputs	8
Number of Analog Inputs	3
Number of Analog Outputs	2
Display	LCD with backlight
Supported Protocols	Modbus
Operating Temperature	-20°C to +70°C
Humidity	95% non-condensing
Weight	0.4 kg
Protection	IP65 (front panel)
Controller Type	AMF Controller
Storage Temperature	-30 to +80 °C
