Power Switch
This switch is assigned to the gen-set active power. The setpoints PowerSwitch ON [kW] and
PowerSwitch OFF [kW] for on and off level adjustment are located in the setpoint group Engine
Params. Typical usage for this binary output can be switching of dummy load. The output behaves

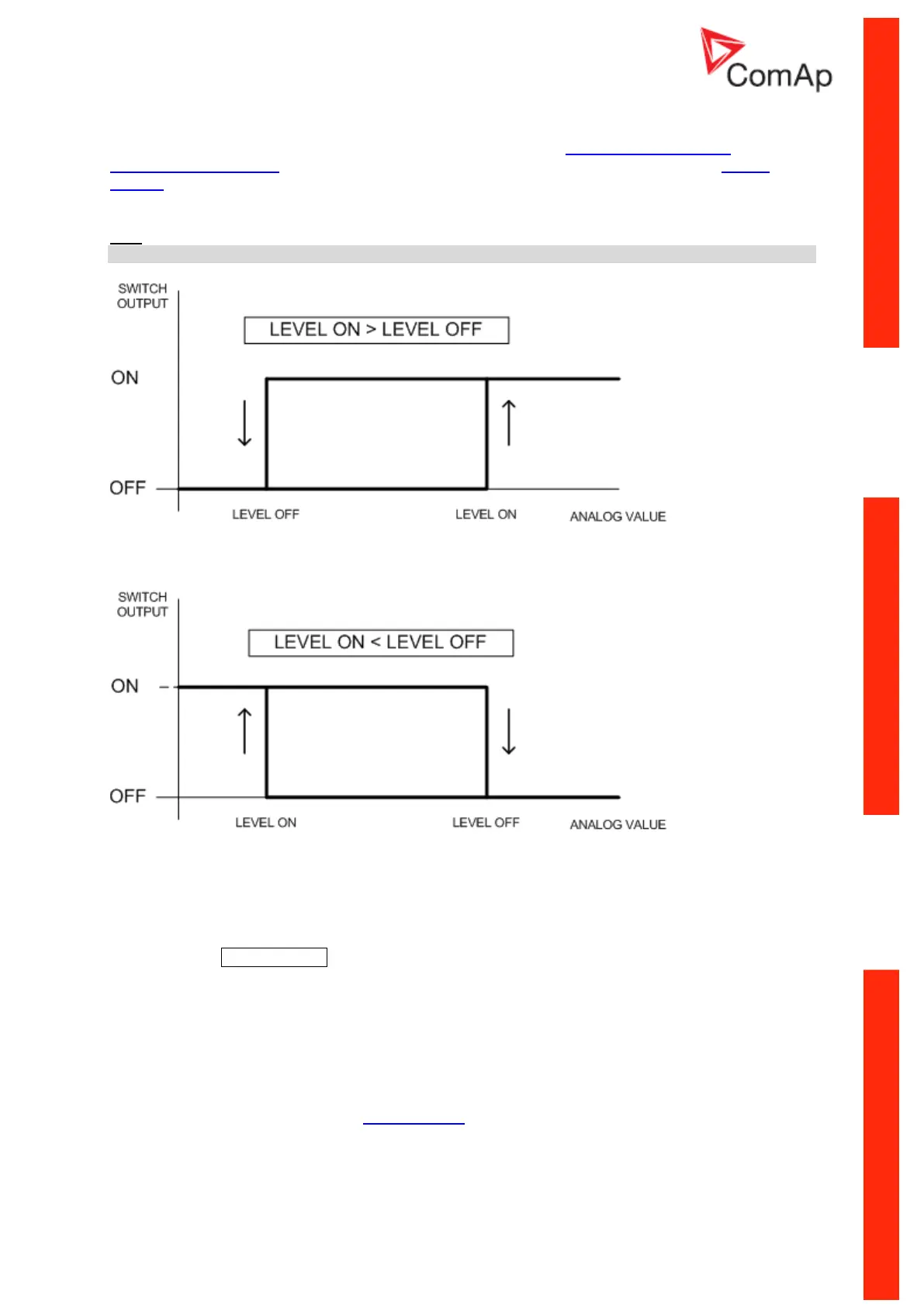

based on the setpoint adjustment as described on picture lower:
Hint:
Power switch function and corresponding binary output is activated 30s after the engine is running.
Maintenance
Output closes if the Maintenance alarm activates, i.e. the gen-set has been running for more than
Engine Protect: WrnMaintenance.
The output opens, if
alarm is not active and
FAULT RESET is pressed
Ctrl HeartBeat
Output signalizes Watchdog Reset. In a healthy state it blinks at 500ms : 500ms rate. When Watchdog
Reset occurs, it stops blinking.
DualAMFCtrlOut
Control output for Mutual Standby Application. This binary output of controller 1 must be configured
and interconnected with binary input DualAMFCtrlIn of controller 2 for correct Mutual Standby function
Mode OFF
The output is closed, if OFF Mode is selected.
