InteliPro, SW version 1.4, ©ComAp – April 2014
InteliPro 1.4 Comprehensive Guide - rev. 1
Power supply
The unit is designed for 8 - 36 VDC (typically 24V or 12V battery, battery charger or inverter) power
supply. Use secured power supply voltage to assure operation of the InteliPro protection relay even
during power supply outages! In case that no suitable DC supply circuits are available on-site, we
recommend to use an appropriate inverter AC to 24 VDC. In case of need, ask ComAp technical
support at support@comap.cz for recommendations.
Recommended wiring

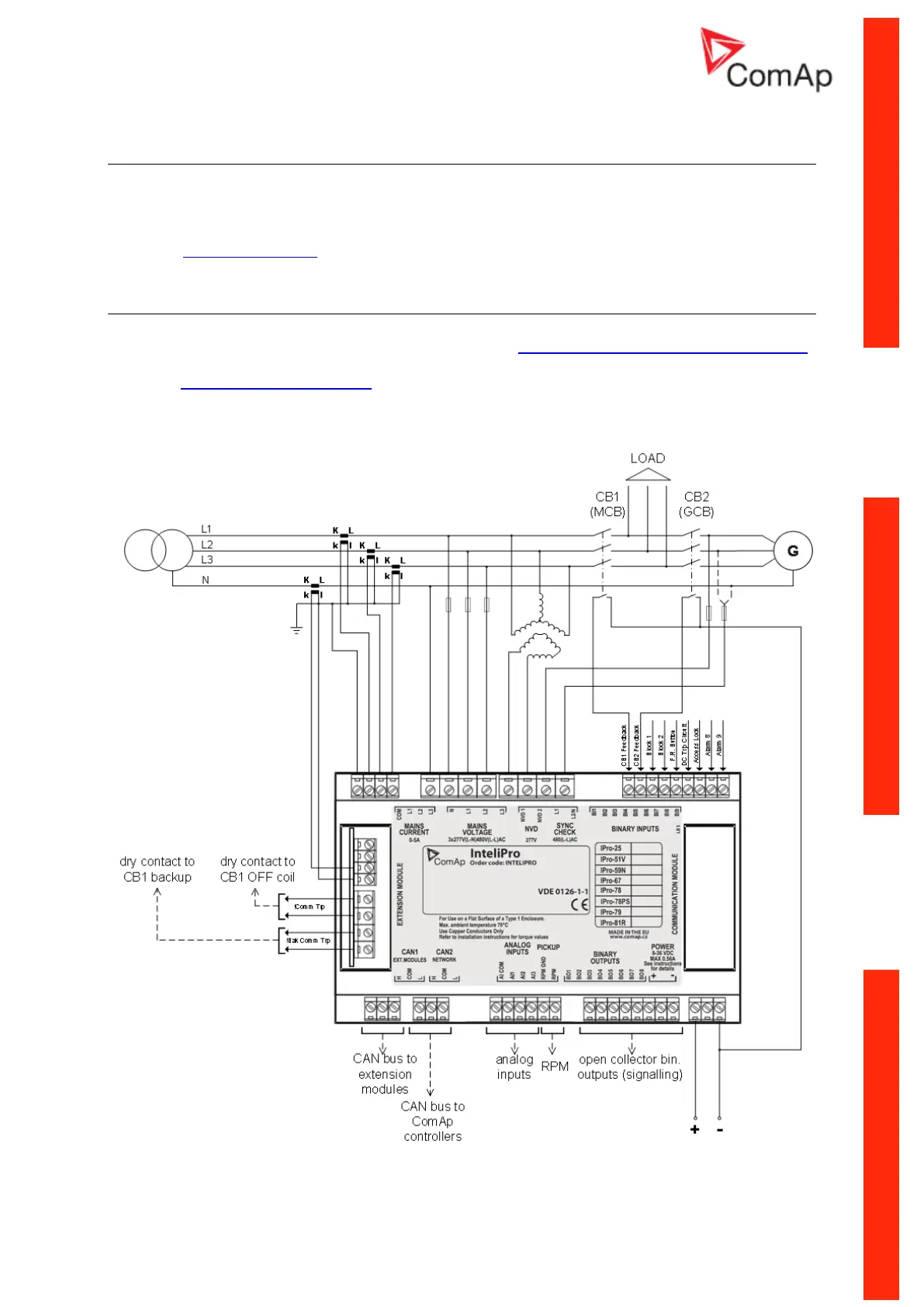

In the diagram below, see the typical wiring of the InteliPro unit inputs and outputs. The wiring is to be
considered as an example for the default configuration and operation mode with 1 common trip output.
The relay contacts of Relay Card CT2-REL2 module can be reconfigured to Trip 1 and Trip 2 outputs
in case of operation with 2 trip outputs, as well as any inputs and outputs can be reconfigured to the
particular needs of the application.
An OFF coil of a circuit breaker is to be wired to terminals RE11 and RE14 or to terminals RE21 and
RE24 on extension module.
