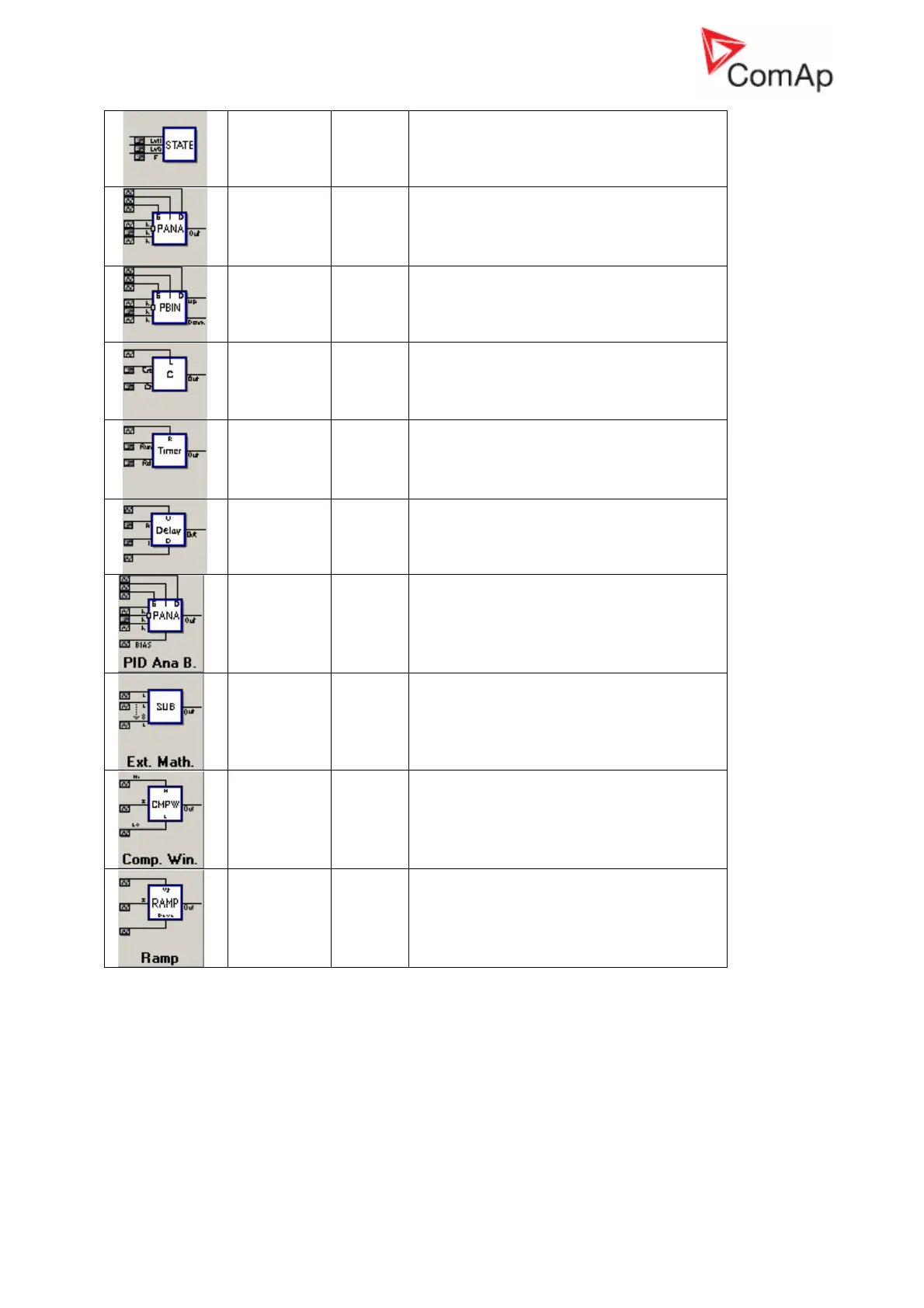

ForceProtect
4 Adjustable protection levels, based on PLC
evaluation
PID Ana
4 PID control loop with analog output
PID Bin
4 PID control loop with binary output
Counter
4 Edges counter
One limit
Binary output
Timer
4 Periodic signal generator
Binary output
Analog input
Delay
16 Adjustable rising and falling edge delay
PID control
with Analog
output and
adjustable
Bias
4
PID
Analog output jumps to adjustable Bias
value when Gate input is active (instead
zero as before) and starts from Bias.
Ext. Math. 8
Math functions with expandable number of
inputs up to 8.
Selectable: ADD, AVG, MAX, MIN
Eight analog inputs, one analog output.
Comp. Win. 16
Window comparator
Analog input, two limits, analog output.
Binary output is active when input is within
limits.
Ramp 4
Analog input, analog output.
Two setpoints for Ramp-up and down speed
(in number of units per second).
Enable-Up, Enable-Down: Ena/Disables the
ramp.
