History and Alarm list records
Record Reason
MAPControlFls MAP or MAT not configured or sensor fail
Stp O2 limit O2 is out of range when gen-set power > Low MAP power
Sd MAPCtrlFail MAP is out of range during active AFR control
Wrn Misfire Active BI Misfiring
Sd Misfire Misfiring protection was active 6x in one hour
Sd MisfireTO After Misfiring timeout
Wrn Knocking Active BI Knocking
Sd KnockingTO After Knocking timeout
Sd Knocking Knocking protection was active 6x in one hour
Sd GasVTest Gas valve test shut down
Dongle incomp Corresponding AFR dongle is missing

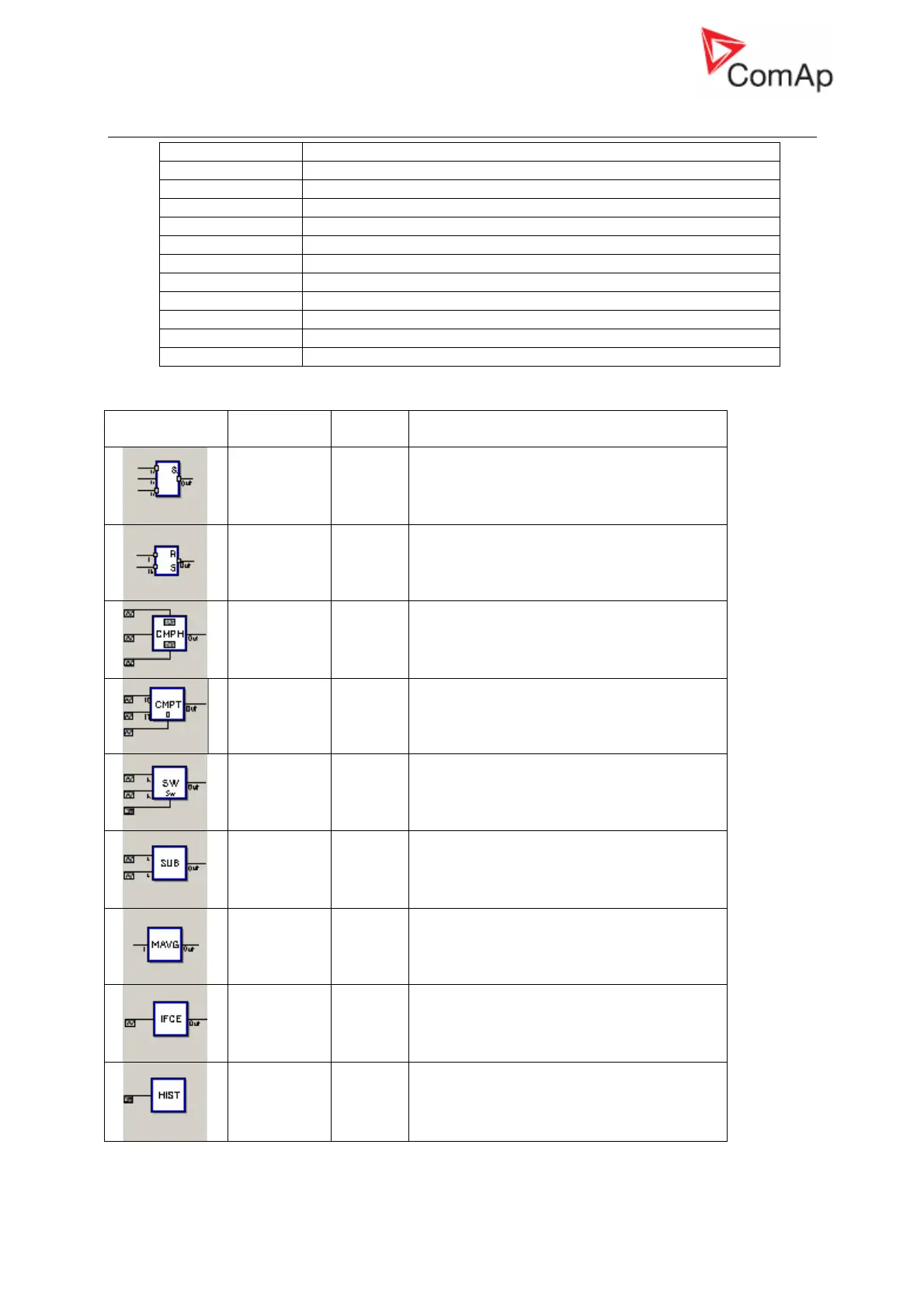

Number of programmable functions of IS-NT-AFR branch
Config item
Selection
available IS-NT
Note
Log Func I. 64 AND, OR
2 to 8 inputs
Binary output
Log Func II.
16 XOR, RS (flip-flop)
2 inputs
Binary output
Comp Hyst
16 Analog input
Two limits
Binary output
Comp Time
8 Analog input
One limit + delay
Binary output
Ana Switch
16 Two analog inputs
Analog output
Binary input as selector
Math Func
16 ADD, SUB, ABS, AVG, MAX, MIN
Two analog inputs
Analog output
Mov Avg
2
Analog input
Analog output
Performs averaging (filtering) of the input
value with selectable weight and period
InterpolFunc
2 Linear interpolation
Analog input
Analog output
ForceHistory
4 Binary input causes history record when
changes from 0 to 1
