ComAp IS-NT-BB

IGS-NT Installation Guide
136
AVRi+
AVRi-
18VAC
From
generator
OUT2
OUT1
iG-
AVRi
iG
-
AVRi
TRANS
230/400VAC
0VAC
AVRI COM
AVRI OUT
6
8

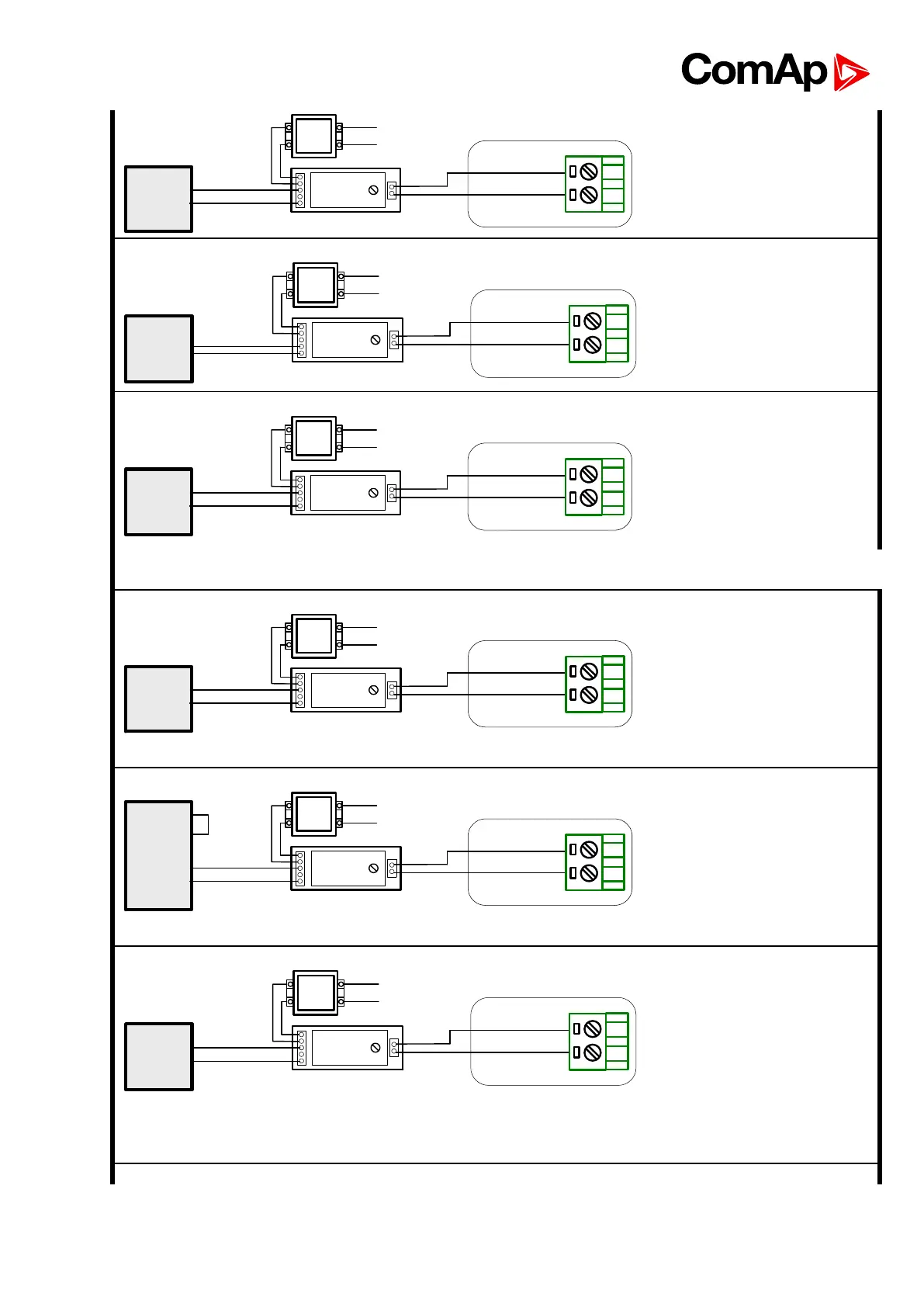

Volt/PF ctrl:
AVR DCout bias = 50%
VoltRegChar = POSITIVE
MarelliGenerators MARK 5 (M16FA655A)
AVRi+
AVRi-
18VAC
From
generator
OUT1
AVRi
230/400VAC
0VAC
AVRI COM
AVRI OUT
IG- AVRi
TRANS
IG-
COM
P
Q
AVRi trim to ¼ position
Volt/PF ctrl:
AVR DCout bias = 15%
VoltRegChar = POSITIVE
KATO KCR 360
AVRi+
AVRi-
18VAC
From
generator
OUT2
OUT1
iG-
AVRi
iG
-
AVRi
TRANS
230/400VAC
0VAC
AVRI COM
AVRI OUT
6
8
Volt/PF ctrl:
AVR DCout bias = 50%
VoltRegChar = POSITIVE
KATO KCR 760
AVRi+
AVRi-
18VAC
From
generator
OUT2
OUT1
iG-
AVRi
iG
-
AVRi
TRANS
230/400VAC
0VAC
AVRI COM
AVRI OUT
R1
R2
AVRi trim to minimum
position (fully
counterclockwise)
Volt/PF ctrl:
AVR DCout bias = 45%
VoltRegChar = POSITIVE
KATO K-65-12B
AVRi+
AVRi-
18VAC
From
generator
OUT2
OUT1
iG-
AVRi
iG
-
AVRi
TRANS
230/400VAC
0VAC
AVRI COM
AVRI OUT
3
2
7
4
AVRi trim to minimum
position (fully
counterclockwise)
Volt/PF ctrl:
AVR DCout bias = 50%
VoltRegChar = POSITIVE
ENGGA WT-2
AVRi+
AVRi-
18VAC
From
generator
OUT1
AVRi
230/400VAC
0VAC
AVRI COM
AVRI OUT
IG- AVRi
TRANS
IG-
OUT2
A-
A+
Volt/PF ctrl:
AVR DCout bias = 50%
VoltRegChar = POSITIVE
ENGGA WT-3
