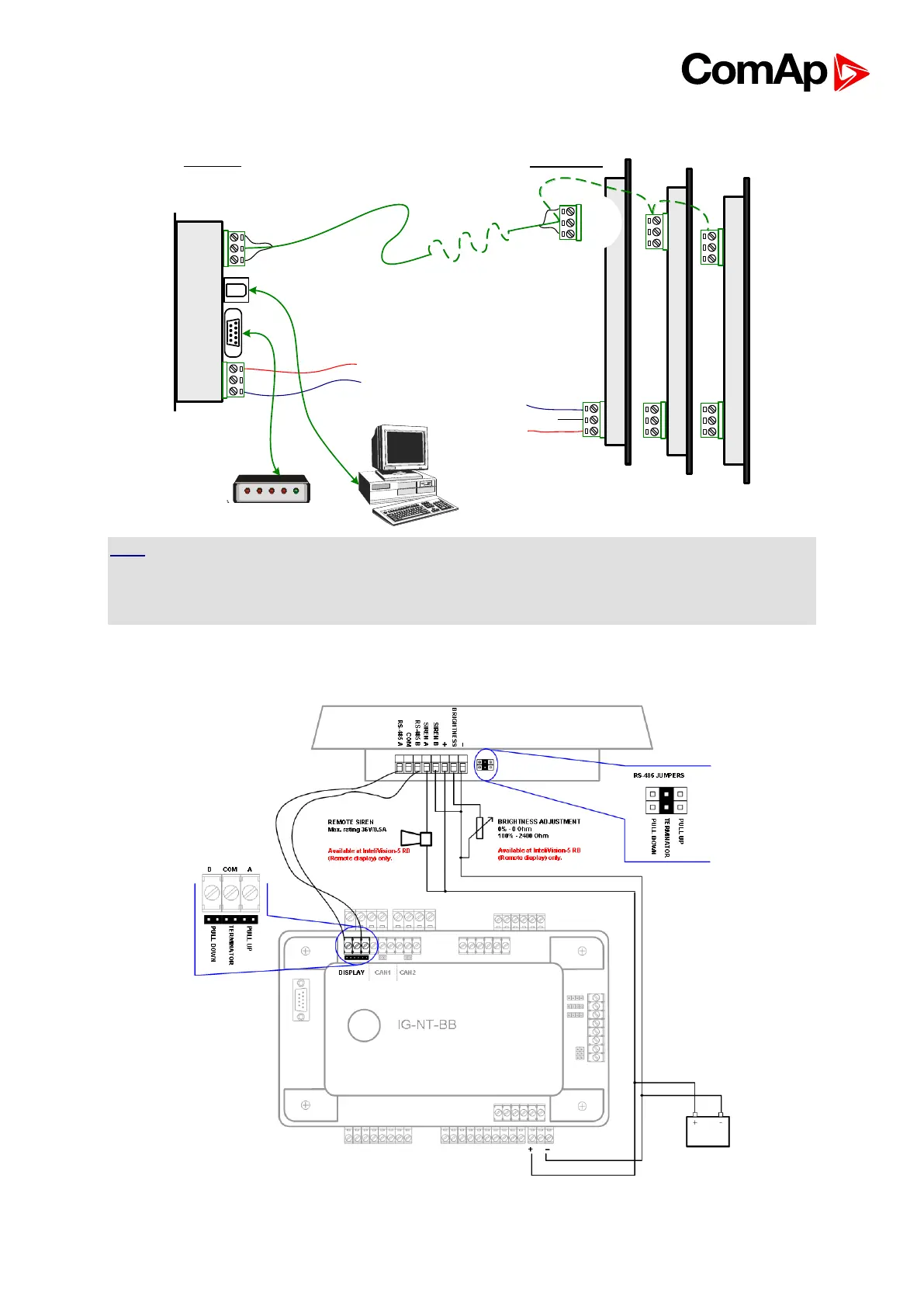

6.1.6.3. Multiple Remote Displays
IS-NT- BB
IS-DISP
A1
COMR1
B1
IS- DISPLAY
IS-NT-BB
RS485
Wire length:
up to 1000 meters
POWER
0 VDC
USB
RS232
USB
MODEM / GSM
GenConfig
InteliMonitor
POWER
8-36 VDC
0 VDC
IS-DISPLA
Y
A1
COMR1
B1
IS-DISPLAY
IS-DISPLAY
BI:Alternative brightness
8-36 VDC
HINT
The state of BI Alternative brightness only influences the particular display.
IS-NT-BB unit doesn’t include internal display. For IG/IS-NT hardware options consult IGS-NT-
x.y-Application guide.pdf.
