IGS-NT Combi, SW Version 3.0, ©ComAp – May 2013
IGS-NT-Combi-3.0 Reference Guide.PDF
101
ï‚· IM3 CT INPUT: Reactive power from the mains is calculated from the
mains L3-N voltage and the current measured at the controller Im3
terminal and then multiplied by 3.
ï‚· ANALOG INPUT: Rective power from the mains is measured by an
external device and passed the controller via analog input PFCtrl:I/E-Qm.
NOTE:
If the reactive power is measured, then the measurement method should match
the method used for active power measurement, i.e. if the setpoint I/E-Pm meas is
set to IM3 CT INPUT, the I/E-Qm meas should not be set to ANALOG INPUT and
vice versa.
Setpoint: PeakLevelStart
Group
Process control
Range [units]
PeakLevelStop .. 32000 [kW]
Related FW
3.0
Force value
possible
YES
Description

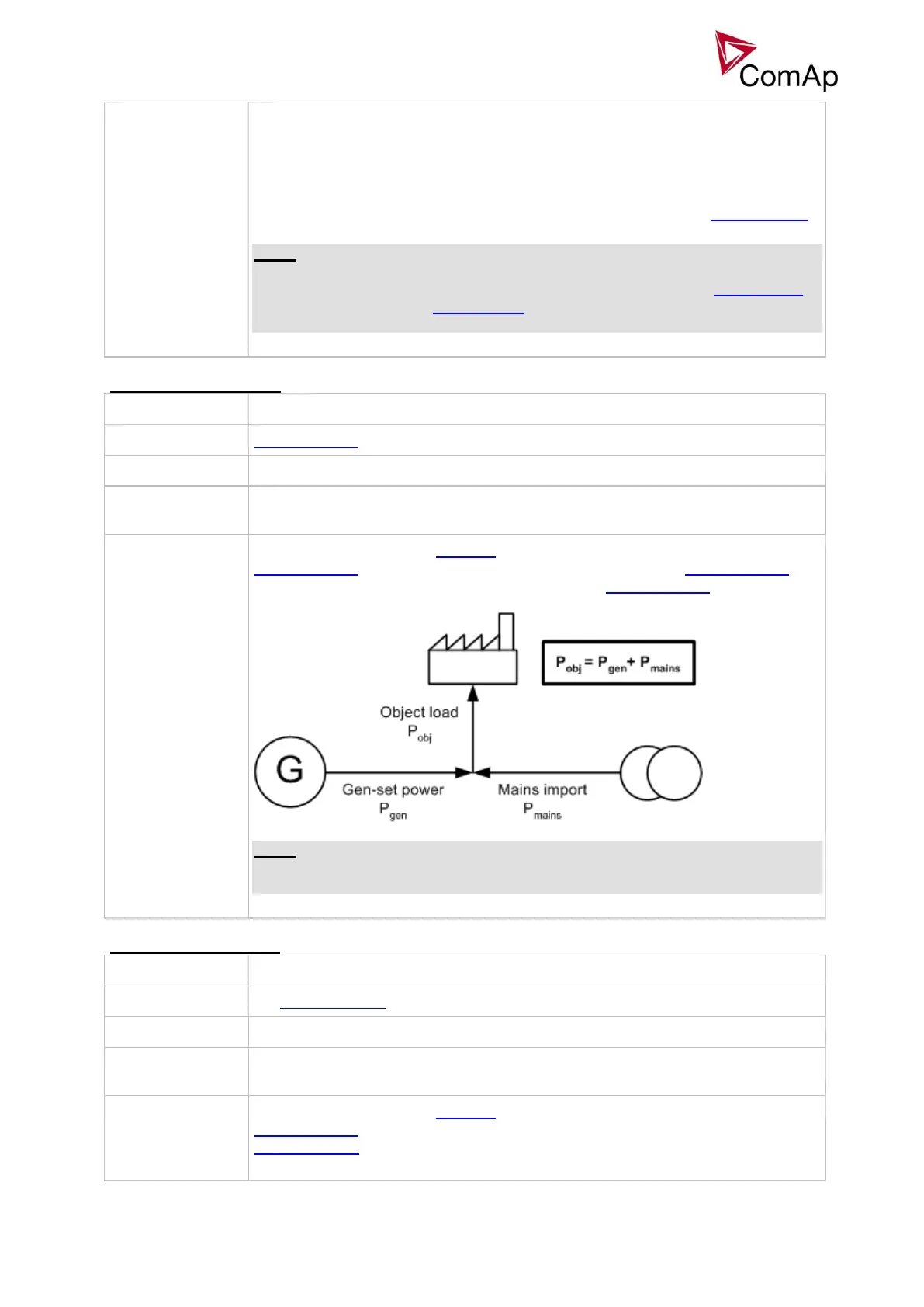

If the object consumption (Object P) exceeds this setpoint for time longer than
PeakAutS/Sdel, the gen-set starts automatically. Adjusting the PeakAutS/Sdel to 0
(OFF) disables the autostart. See also the setpoint PeakLevelStop.
NOTE:
The actual setpoint units and range depend on setting of the Power format in
GenConfig.
Setpoint: PeakLevelStop
Group
Process control
Range [units]
0 .. PeakLevelStart [kW]
Related FW
3.0
Force value
possible
YES
Description
If the object consumption (Object P) drops below this setpoint for time longer than
PeakAutS/Sdel, the gen-set stops automatically. See also the setpoint
PeakLevelStart.
