IGS-NT Combi, SW Version 3.0, ©ComAp May 2013
IGS-NT-Combi-3.0 Reference Guide.PDF
111
generator voltage in at least one phase exceeds 85% of the nominal
voltage. It opens when the generator voltage in all phases drops below
50% of the nominal voltage.
While the gen-set is running, MCB is open and GCB is closed, then the
position of the output is given by an internal algorithm, which ensures, that
always exactly one gen-set connected to the bus has the neutral
contactor closed.
NOTE:
Functional CAN2 communication between the controllers is required for
this function.

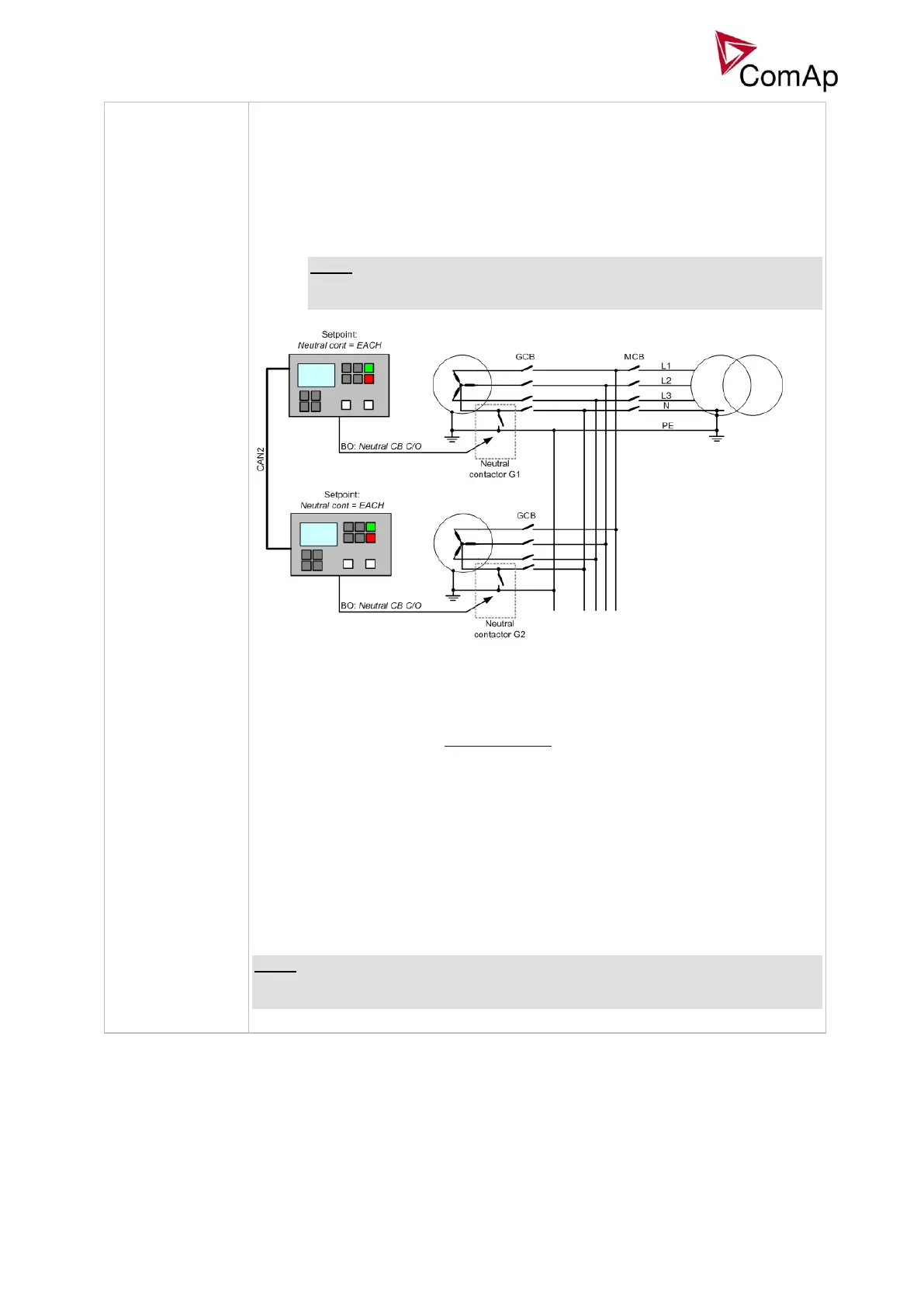

PRINCIPIAL SCHEME OF A SITE IF NEUTRAL CONT = EACH
The COMMON option should be used if there is one common neutral contactor for
the whole site. The outputs Neutral CB C/O from all controllers are combined
together and the combined signal is used to control the breaker. Three-pole GCB
must be used for this case.
The output is always opened while the gen-set is not running.
The output is always opened while the MCB is closed.
While the gen-set is running the output closes when generator voltage in
at least one phase exceeds 85% of the nominal voltage. It opens when
the generator voltage in all phases drops below 50% of the nominal
voltage. That means if at least one gen-set in the site is running and
having proper voltage, the neutral breaker is closed.
NOTE:
If there are more logical groups the "common" option is related to the group. That
means one common neutral contactor is expected for each group.
