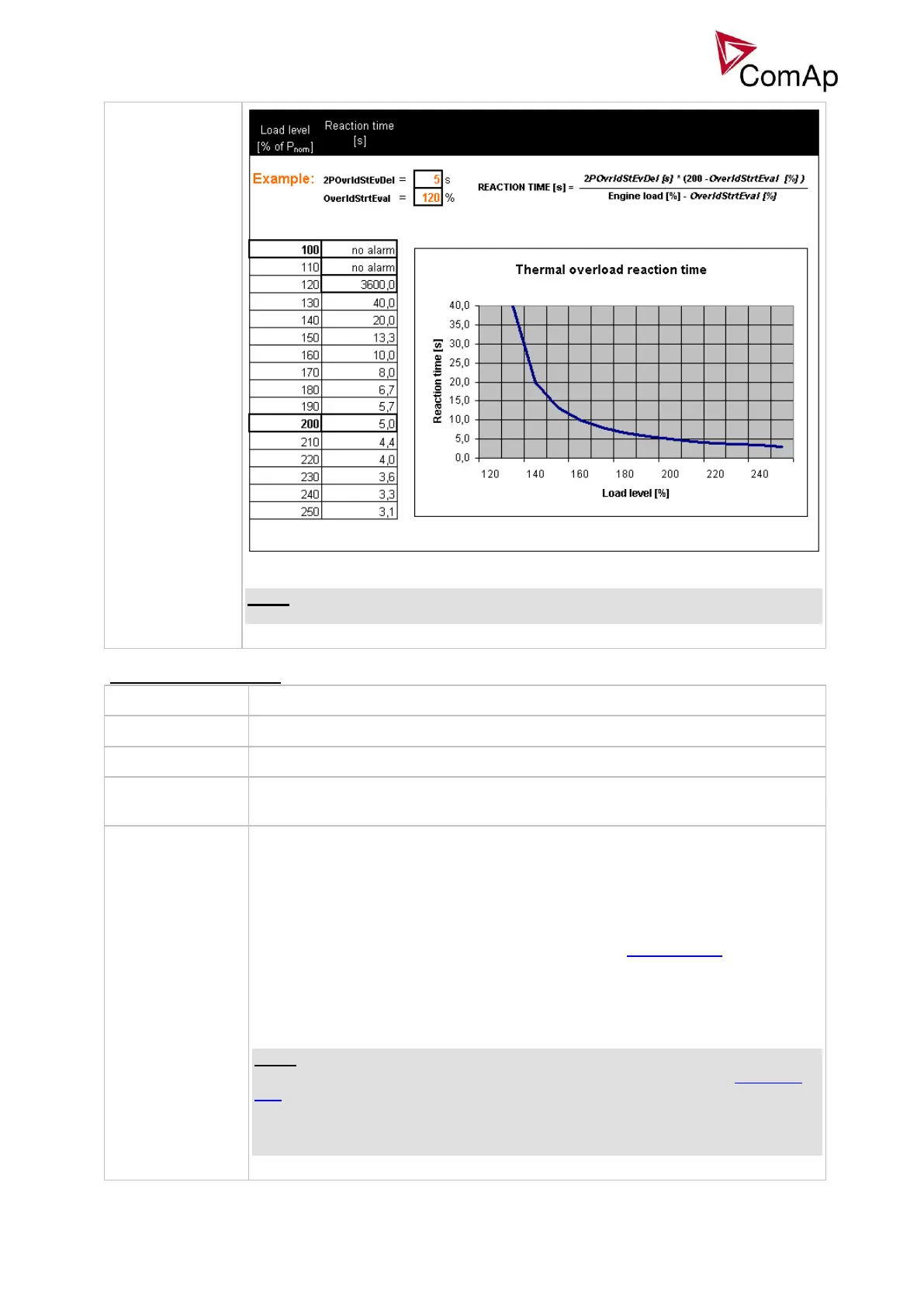

EXAMPLE OF THERMAL OVERLOAD PROTECTION CURVE
NOTE:
The thermal overload protection is Breaker open and cool down (BOC) type.
This setpoint is used for adjusting of the lower limit of the requested gen-set
power in parallel to the mains operation. If the requested load (given by the active
load control mode, e.g. Baseload, Import/Export etc.) is below this limit the
requested load is limited to the level adjusted by this setpoint.
The only situation, where the Min Power PtM is ignored, is the warming procedure
after the gen-set is synchronized to the mains, i.e. the Warming load can be
adjusted also below the sepoint Min Power PtM.
This setpoint is also used as the requested load level if a protection of Low power
type is active.
NOTE:
Note that if InteliMains is used and it is in active control mode (i.e. the SysLdCtrl
PtM is set to LDSHARING) this setpoint is not considered and minimal power in
parallel to Mains operation is given by ProcessControlMinPwr PtM is used to
determine minimal power of each gen-set in the group in percentage of its nominal
power.
