COMBA mBDA OD Series - Combiner Connectors

INSTALLATION GUIDE FOR mBDA OD SERIES
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 25
SIM
OMT
RUN
MOD
MOD
RUN
OMT
SIM

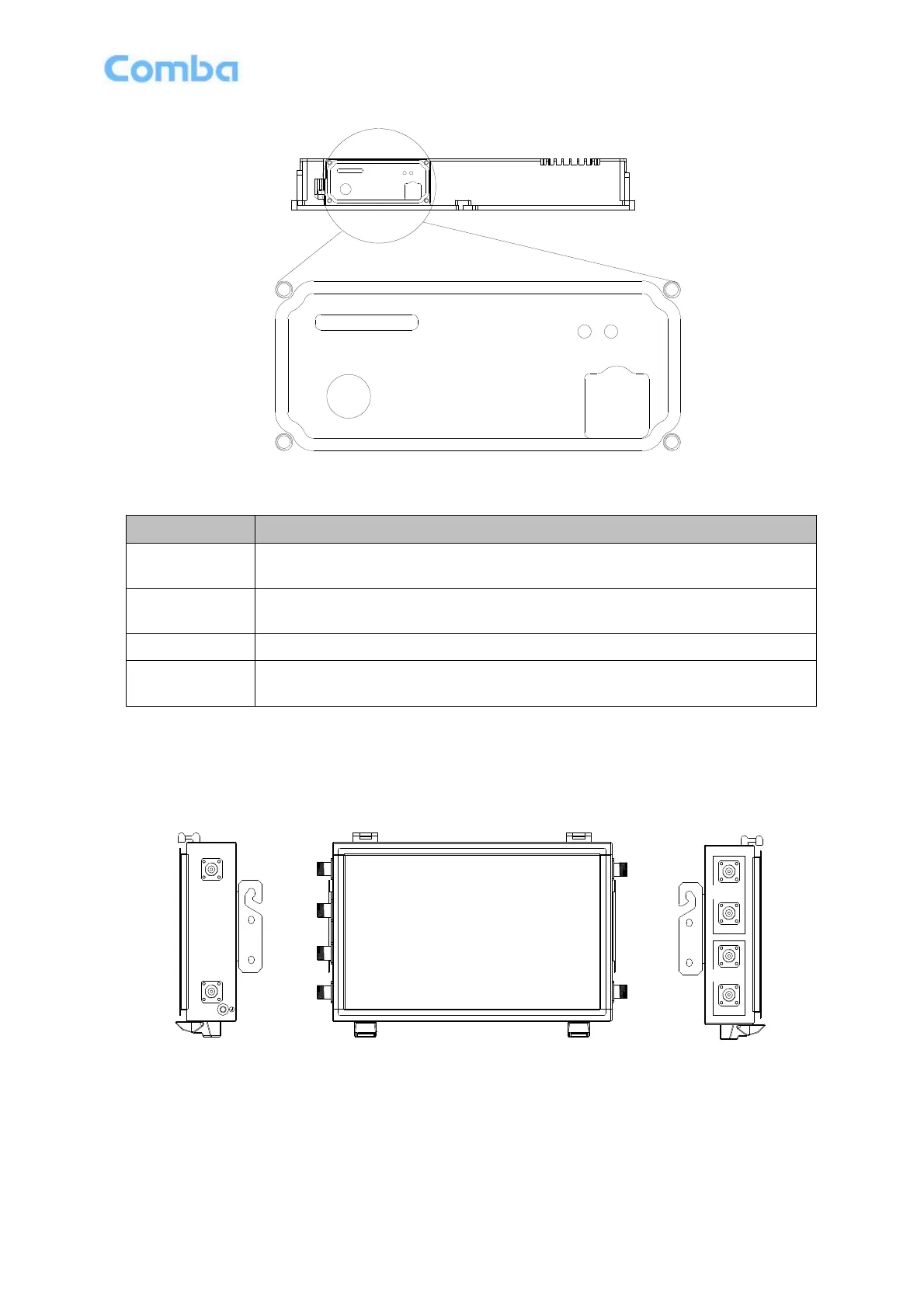

Figure 17: Operation Window
Table 5: Operation Window
Identifier
Descriptions
RUN
Green LED, Operation indicator flashes every second to indicate MCU normal
operation.
MOD
Red LED, Modem status indicator. Flashes during initiating, and go off after that.
If the indicator is continuous on then the initiating fails, modem type only.
OMT
RJ45 connector for local commissioning.
SIM
SIM Card Socket can be inserted SIM card for remote connection, modem type
only.
3.4.2 COMBINER CONNECTORS
The combiner is designed for dual-band mBDA. All cable entries from the right or left of the enclosure, as
shown in the following figure.
MT
DT
DT
MT
1710-2170
1710-2170
806-960
806-960
Figure 18: Combiner Connectors
