COMBA mBDA OD Series - DRIP-LOOP

INSTALLATION GUIDE FOR mBDA OD SERIES
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 23

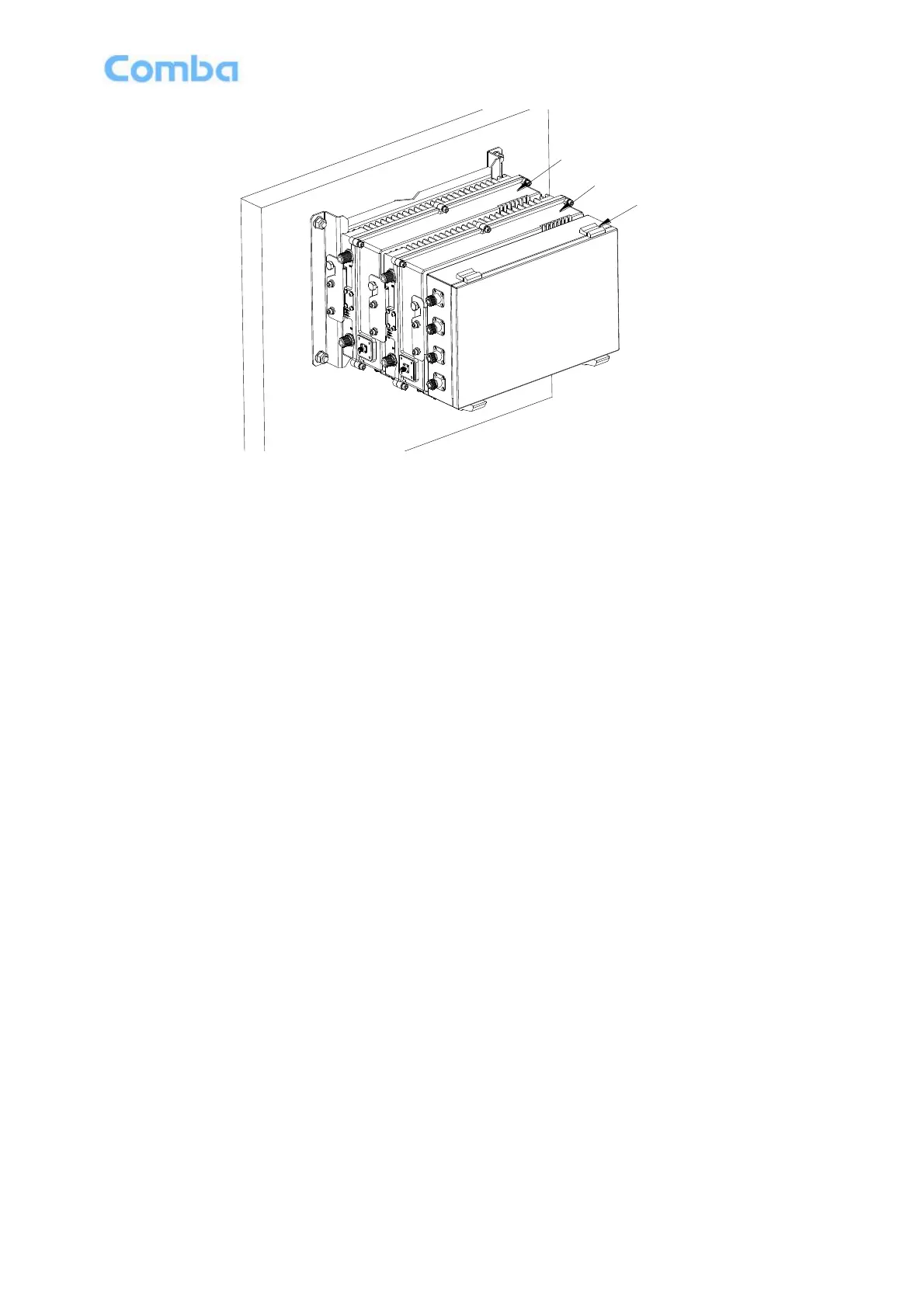

The Fist mBDA
The Second mBDA
Combiner
Figure 15: Finish Installation
3.3.6 DRIP-LOOP
Comba recommends that every horizontal cable entry to the equipment forms a 'U' before its entry to the
equipment. Water on the cable will drip down at the bottom of the loop and will not accumulate at the
equipment connectors.
3.4 EQUIPMENT CONNECTORS
3.4.1 mBDA CONNECTORS
The mBDA is designed for all cable entries from the right or left of the enclosure, as shown in the following
figure.
