COMBAT CUHA - Dimensions Etc. CUHB... 340 to 380

Page 8
UNIT HEATER

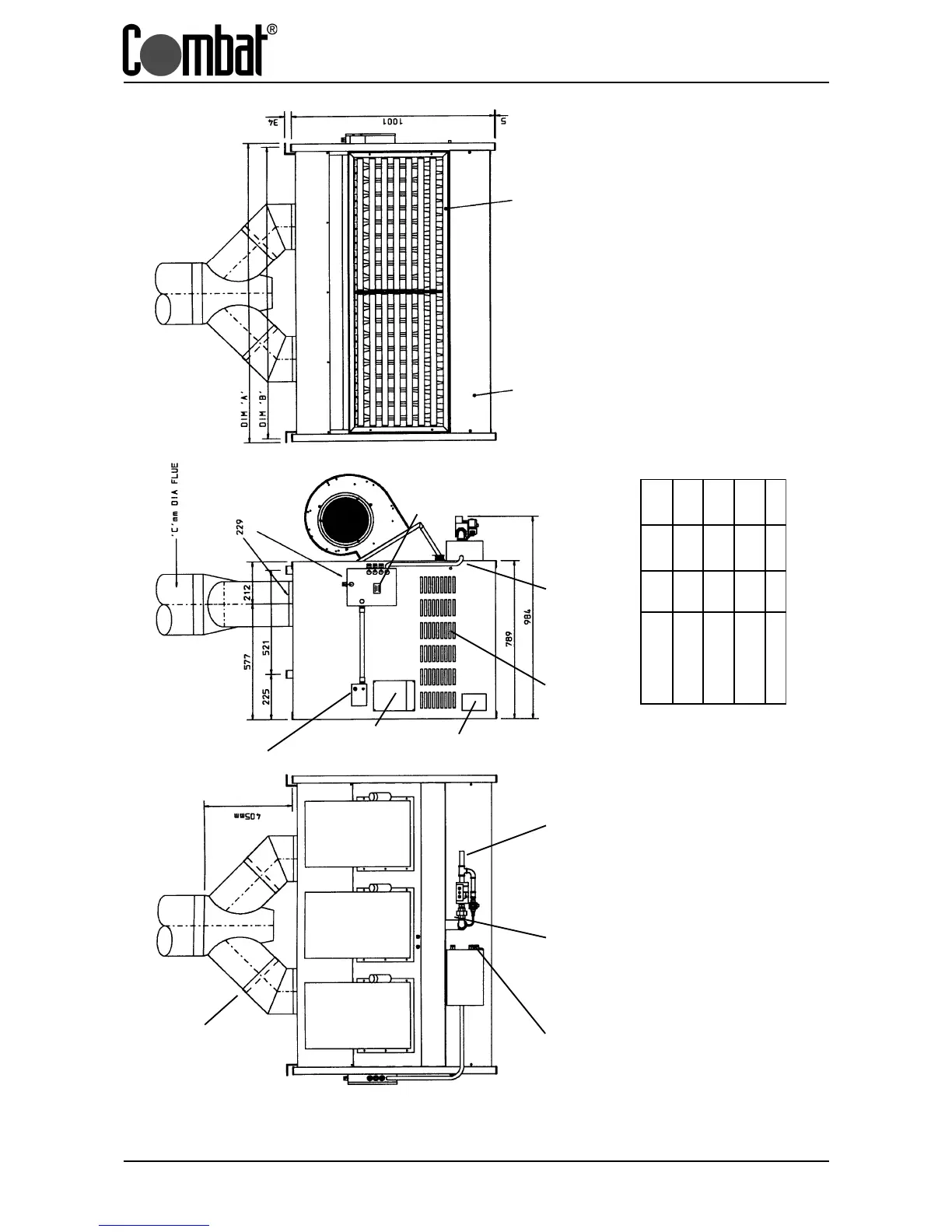

Fig 2.4 Dimensions etc. CUHB... 340 to 380
Air Deflection GrilleBurner Compartment
Electrical Supply via Cable Gland
WARNING ! Isolate Before Removing Cover
Combustion
Air Slots
Access to Second Limit Thermostat
Data Plate
Lighting Instructions
Gas Connection
Pilot viewing via cut out
Electrical Connections for Main Fan, Gas Valve and Interrupter Relay
Honeywell Combina- tion Fan/ Limit Stat.
Model
Ref.
340
380
A Width
mm
(ins)
1359
(53½)
1499
(59)
B Support
Spacing
mm
(ins)
1319
(52)
1459
(59)
C Flue Dia.
mm
(ins)
305
(12)
305
(12)
Weight kg 276 276
Flue Connections Assembled on Site
