COMBAT CUHA - Dimensions Etc. CUHC... Models 340 to 380 Range

Page 10
UNIT HEATER

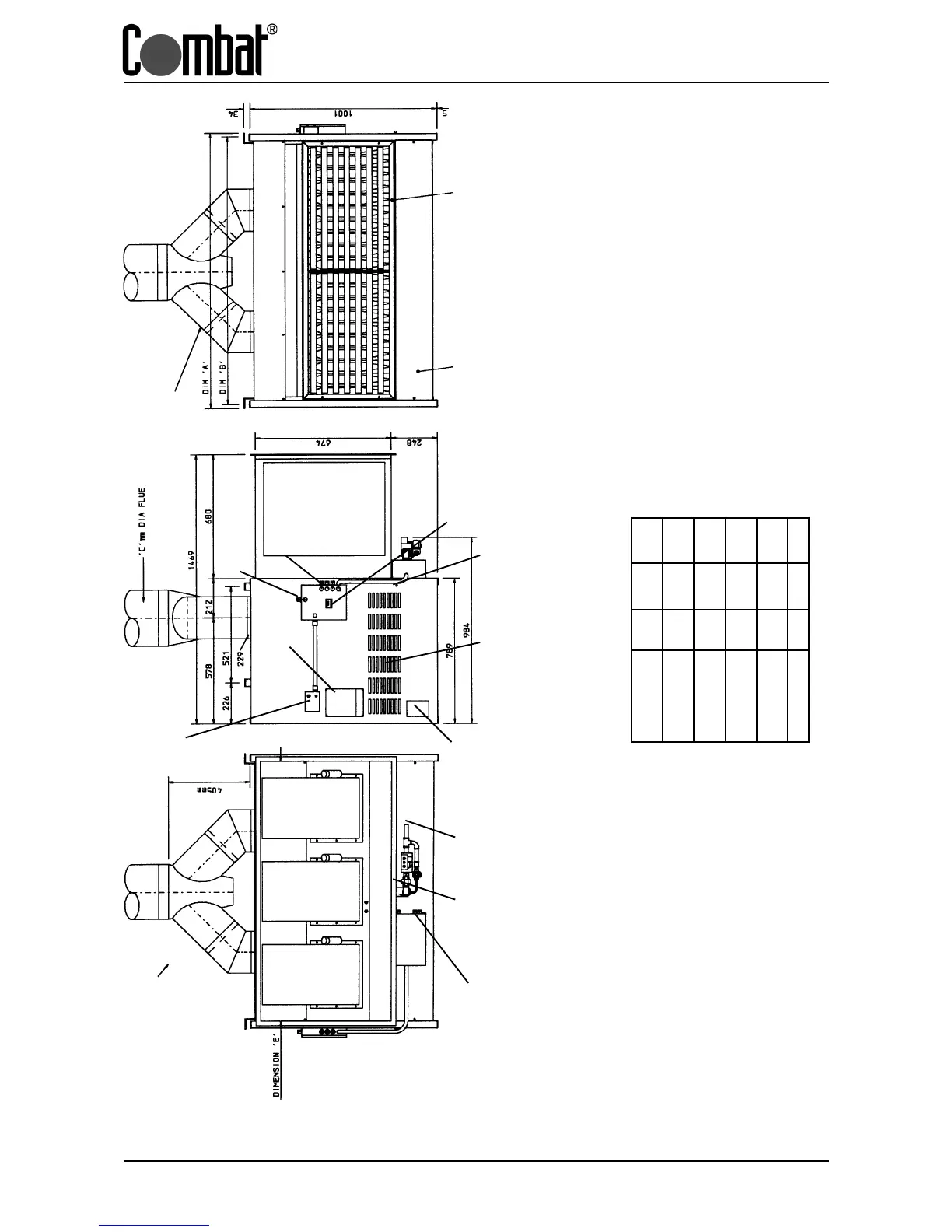

Fig 2.6 Dimensions etc. CUHC... Models 340 to 380 Range
WARNING ! Isolate Before Removing Cover
Electrical Supply via Cable Gland
Honeywell Combina- tion Fan/ Limit Stat.
Access to Second Limit Thermostat
Combustion Air Slots
Air Deflection GrilleBurner Compartment
Data Plate
Lighting Instructions
Gas Connection
Pilot viewing via cut out
Electrical Connections for Main Fan, Gas Valve and Interrupter Relay
Model
Ref.
340 380
A Width
mm
(ins)
1359
(53½)
1499
(59)
B Support
Spacing
mm
(ins)
1319
(52)
1459
(59)
C Flue Dia.
mm
(ins)
305
(12)
305
(12)
E Duct
Spigot Width
mm
(ins)
1277
(50¼)
1417
(55¾)
Weight kg 303 304
Flue Connections Assembled on Site
