COMBAT CUHA - Dimensions Etc. CUHC... 60 to 300

Page 9
UNIT HEATER

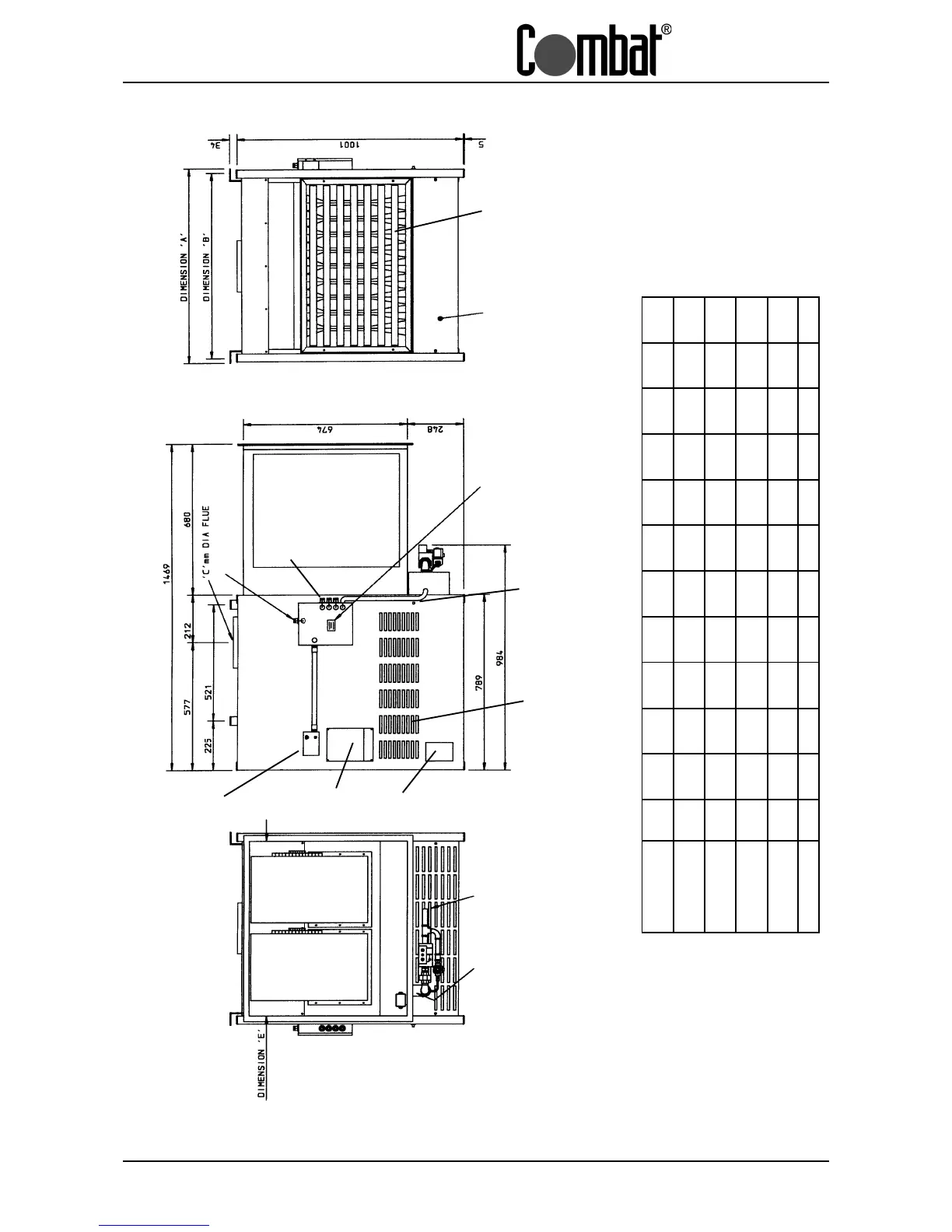

Fig 2.5 Dimensions etc. CUHC... 60 to 300
Air Deflection Grille
Burner Compartment
WARNING ! Isolate Before Removing Cover
Access to Second Limit Thermostat
Combustion Air Slots
Honeywell Combina- tion Fan/ Limit Stat.
Electrical Supply via Cable Gland
Lighting Instructions
Data Plate
Gas Connection
Pilot viewing via cut out
Electrical Connections for Main Fan, Gas Valve and Interrupter Relay
Model
Ref.
60 80 100 120 140 160 180 200 240 280 300
A Width
mm
(ins)
519
(20½)
519
(20½)
589
(23)
589
(23)
729
(28½)
729
(28½)
869
(34)
869
(34)
1009
(39¾)
1219
(48)
1219
(48)
B Support
Spacing
mm
(ins)
479
(18)
479
(18)
549
(21¾)
549
(21¾)
689
(27¼)
689
(27¼)
829
(32¾)
829
(32¾)
969
(38¼)
1179
(46½)
1179
(46½)
C Flue Dia.
mm
(ins)
178
(7)
178
(7)
178
(7)
178
(7)
178
(7)
178
(7)
229
(9)
229
(9)
254
(10)
254
(10)
254
(10)
E Duct
Spigot Width
mm
(ins)
438
(17¼)
438
(17¼)
508
(20)
508
(20)
648
(25½)
648
(25½)
788
(31)
788
(31)
928
(36½)
1137
(44¾)
1137
(44¾)
Weight kg 128 128 148 148 169 169 191 201 243 295 295
