41SAB000 – Base with sounder

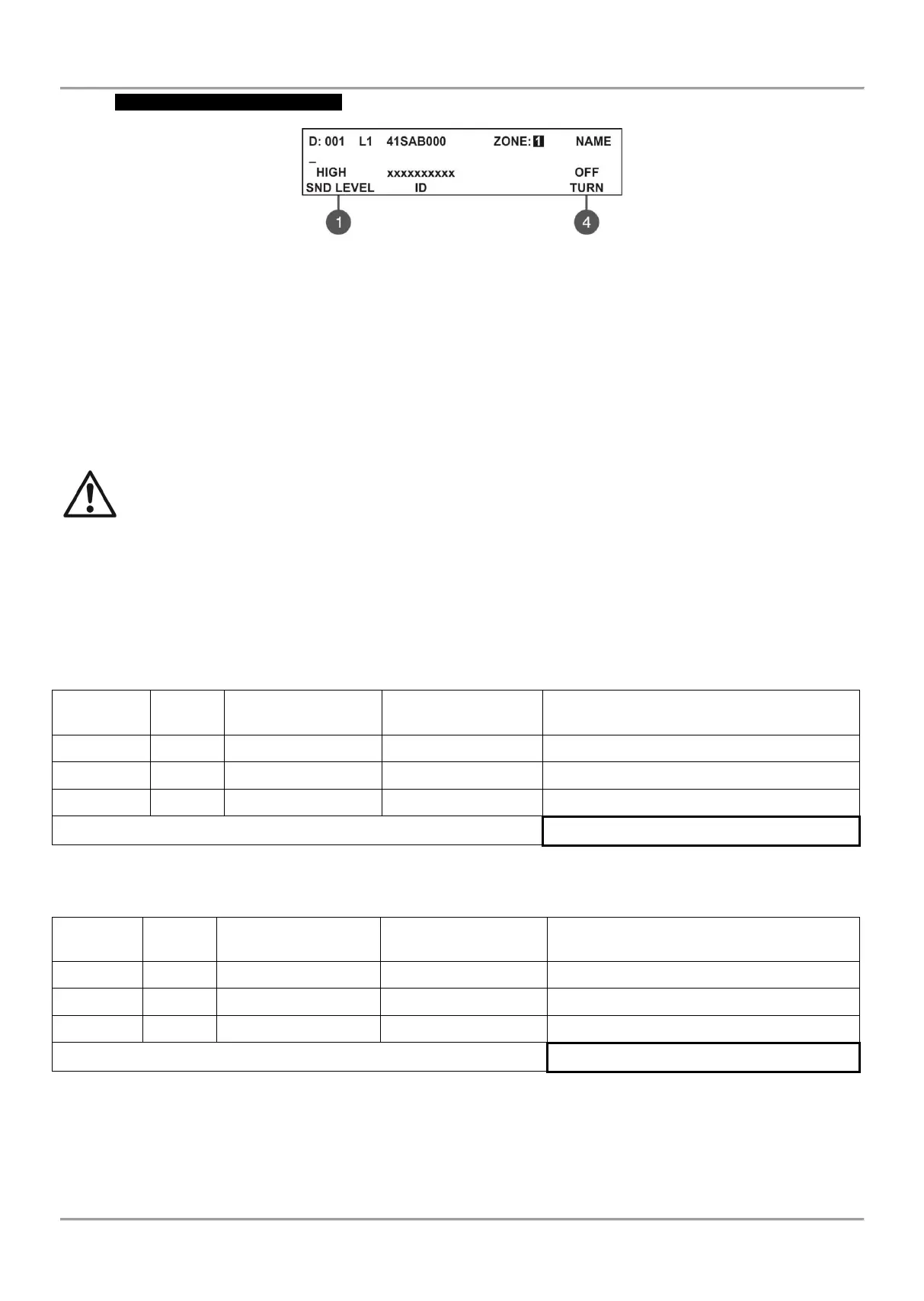

Use the functional buttons to set the following specialized parameters:
(1) SND LEVEL – Every pressing of the button alternatively changes the sound level between HIGH/ LOW – as this
depends on the number of the connected sounders to the loop:
- HIGH – Set in those cases when the number of the connected sounders* to the loop is up to 30.
- LOW – Set in those cases when the number of the connected sounders* to the loop is up to 100.
* Sounders 41SAB000
(4) ON/ OFF TURN – Press to switch on/ off the sound of the sounder when checking for double addresses or finding
the place of installation.
Attention: It is possible to connect different type of sounders to the loop at the same time, but the total
consumption of the sounders in the loop must be up to 300mA!
Note: The automatic detectors mounted to bases 41SAB000 are assigned at separate addresses in the control panel!
To calculate the total consumption of the sounders in the loop and to define the proper sound level, you can use the
Table a below, as fill in the number of the used sounders according their type.
Table 1 for calculation of the total consumption of the sounders in the loop with defined sound level and set ALARM
and/or EVACUATE TONE type 27 (see item 7.6.6 Sounders Mode):
Total consumption, mA
(HIGH + LOW)
Consumption of the sounders in the loop:
Table 2 for calculation of the total consumption of the sounders in the loop with defined sound level and set ALARM
and/or EVACUATE TONE other type sound (see item 7.6.6 Sounders Mode):
Total consumption, mA
(HIGH + LOW)
Consumption of the sounders in the loop:
