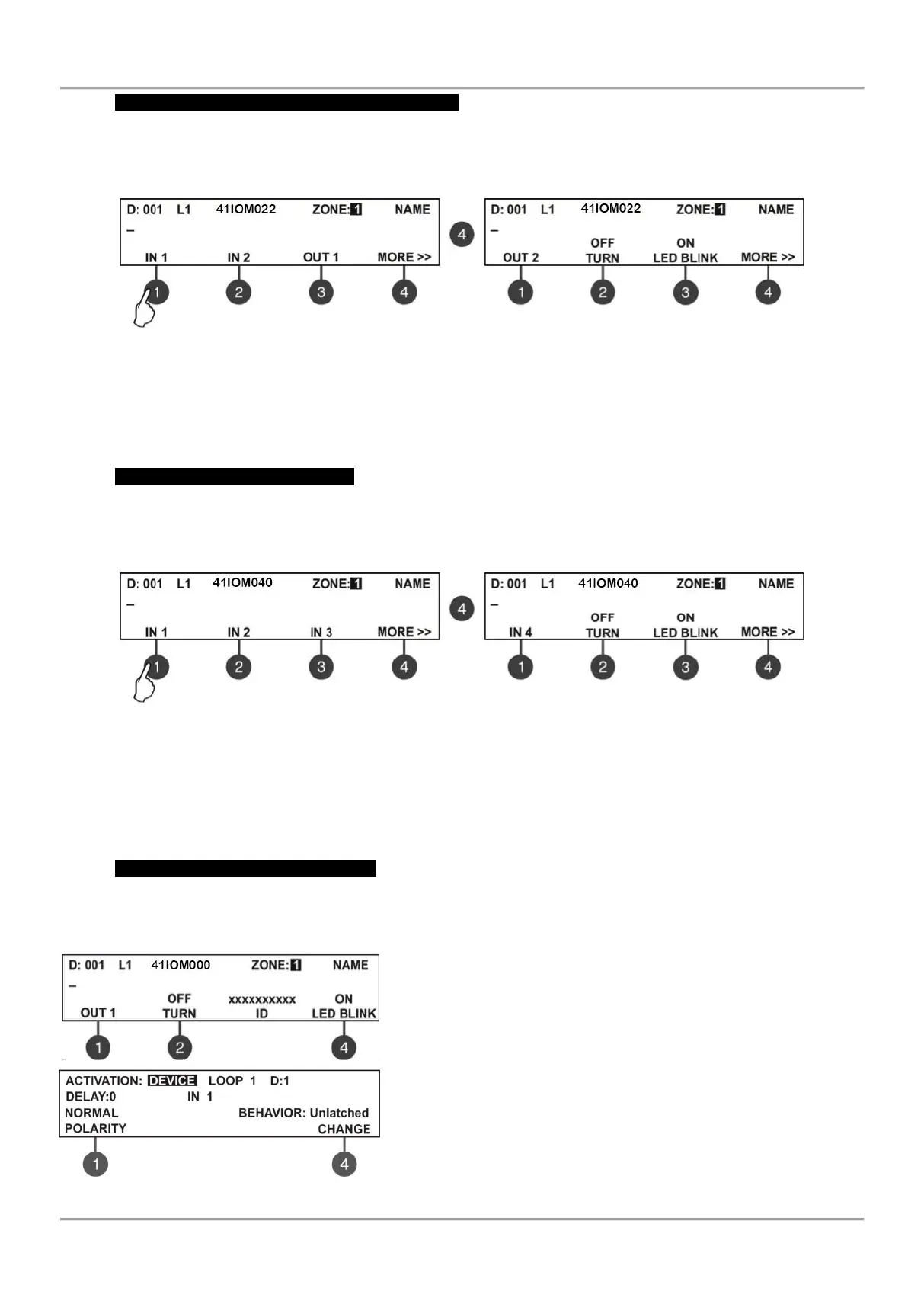

41IOM022 – Module with 2 inputs and 2 outputs
The programming is same for all of inputs and outputs. Use the functional buttons to select an input or output number.
To program OUT 2 you have to press button MORE >>. To see the ID number of the module press MORE >> button
again.
Use the functional buttons to set parameters for inputs and outputs.
For the settings of the IN 1/ 2 refer to the submenu of 41IOM010.
For the settings of the OUT 1/ 2 refer to the submenus of 41IOM004.
To associate IN 1/ 2 for operation in a group, press button (2) GROUP in the screen of the respective input number. In
the editing field enter the group number using the up/ down arrow buttons.
41IOM040 – Module with 4 inputs
The programming is same for all of the inputs. Use the functional buttons to select an input number.
To program IN 4 you have to press button MORE >>. To see the ID number of the module press MORE >> button
again.
Use the functional buttons to set parameters for the inputs.
For the settings of the IN 1/ 2/ 3/ 4 refer to the submenu of 41IOM010.
To associate IN 1/ 2/ 3/ 4 for operation in a group, press button (2) GROUP in the screen of the respective input
number. In the editing field enter the group number using the up/ down arrow buttons.
41IOM000 – Module potential output
The modules is used for connection of conventional sounders, providing interface connection between a zone with
conventional sounders and Atena Easy fire alarm panel. Use the functional buttons to set the following specialized
parameters:
(1) OUT 1 – Set the parameters for the output – see the description of
module 41IOM004.
(1) POLARITY - Use this button to set the type of operation of the
module’s relay. Every pressing of the button changes alternatively the
polarity type:
- NORMAL POLARITY - The module’s relay will switch on when
receiving of activation signal and will switch off when the signal is
lost.
- INVERTED POLARITY - The module’s relay will switch on when the
signal is lost and will switch off when receiving of activation signal.
