Comelit 6801W - Description

3

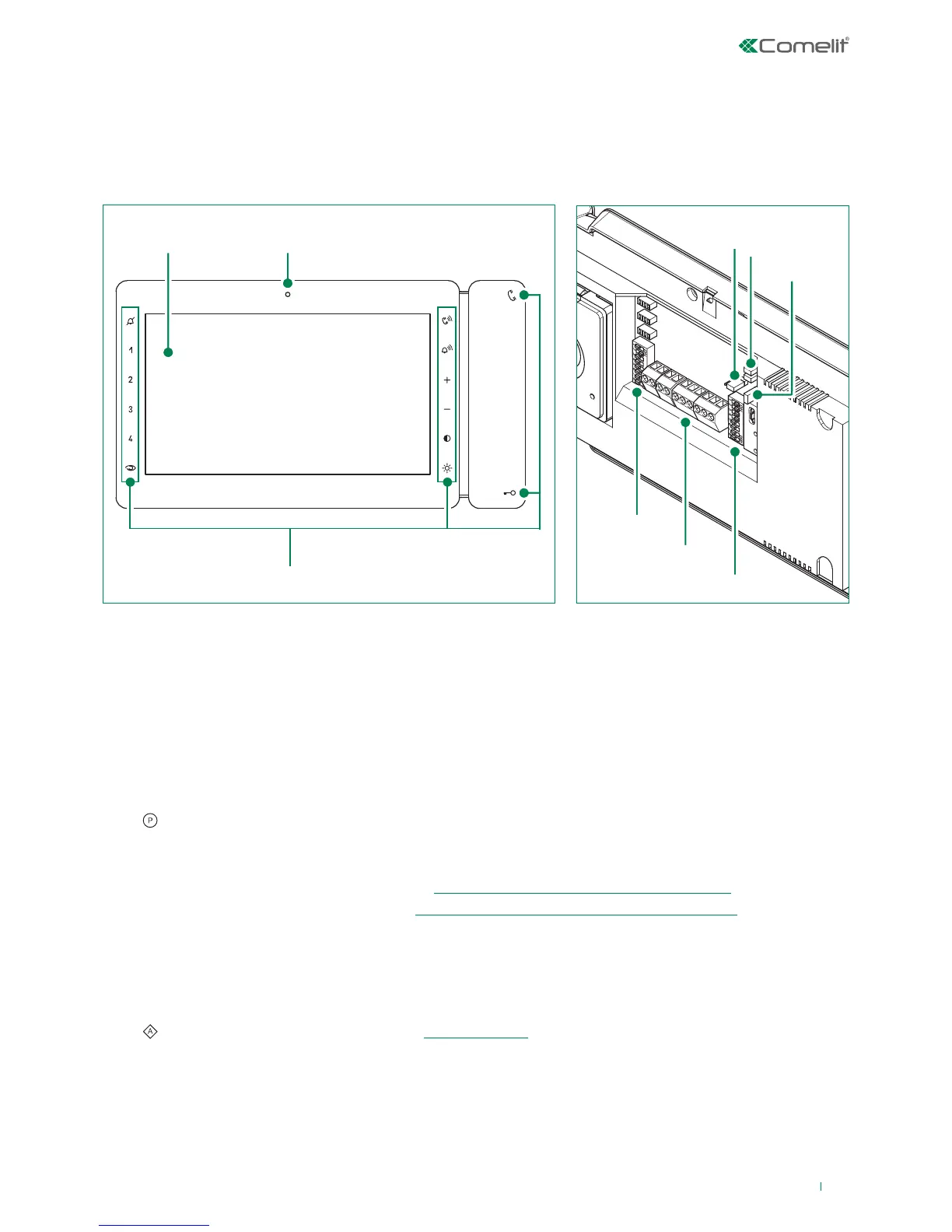

Description
1. 7” colour LCD screen
2. Microphone
3. Soft-touch keys/Led
4. CV6
position A = contact IN1-IN2 > LED (default)
position B = contact CFP2-IN1 > ALARM/LOCK-RELEASE/ACTUATOR
5. CV1 CV2 remove in case of separate power supply
6. CV5 Jumper for video closure. In systems with more than one monitor connected in cascade, only the monitor furthest
away must have CV5 closed.
7. S2
Micro-switches for programming keys and functions
DIP 1-2-3-4 for key function programming
DIP 5-6 access to programming
DIP 7 for management of power supply voltage, see “Power supply configuration and management”
DIP 8
for main and secondary monitor setting, see “Configuration of Main and Secondary internal units”
8. Terminal block for system connection:
CFP1 CFP2 Outside door call input
S+ S- Terminals for additional ringtone output
IN1 IN2 Input terminals (programmable)
- + Power supply terminals
L L Bus line connection terminals
9. S1
User code programming microswitches (see addressing table)
4
5
6
9
8
7
2
3
1
The Maxi series is comprised of hands-free monitors that can be used in “Building Kit” (exclusively 2-wire), Simplebus Top and Kit
Video systems.
• Article 6801W is a colour monitor equipped as standard with 8 function buttons and 6 adjustment buttons.
• Article 6801W/BM is a colour monitor equipped as standard with 8 buttons, 6 adjustment buttons and an induction loop.
