Comelit 6801W - Installation - Flush-Mounted; Flush-Mounted Box Installation

7
Installation

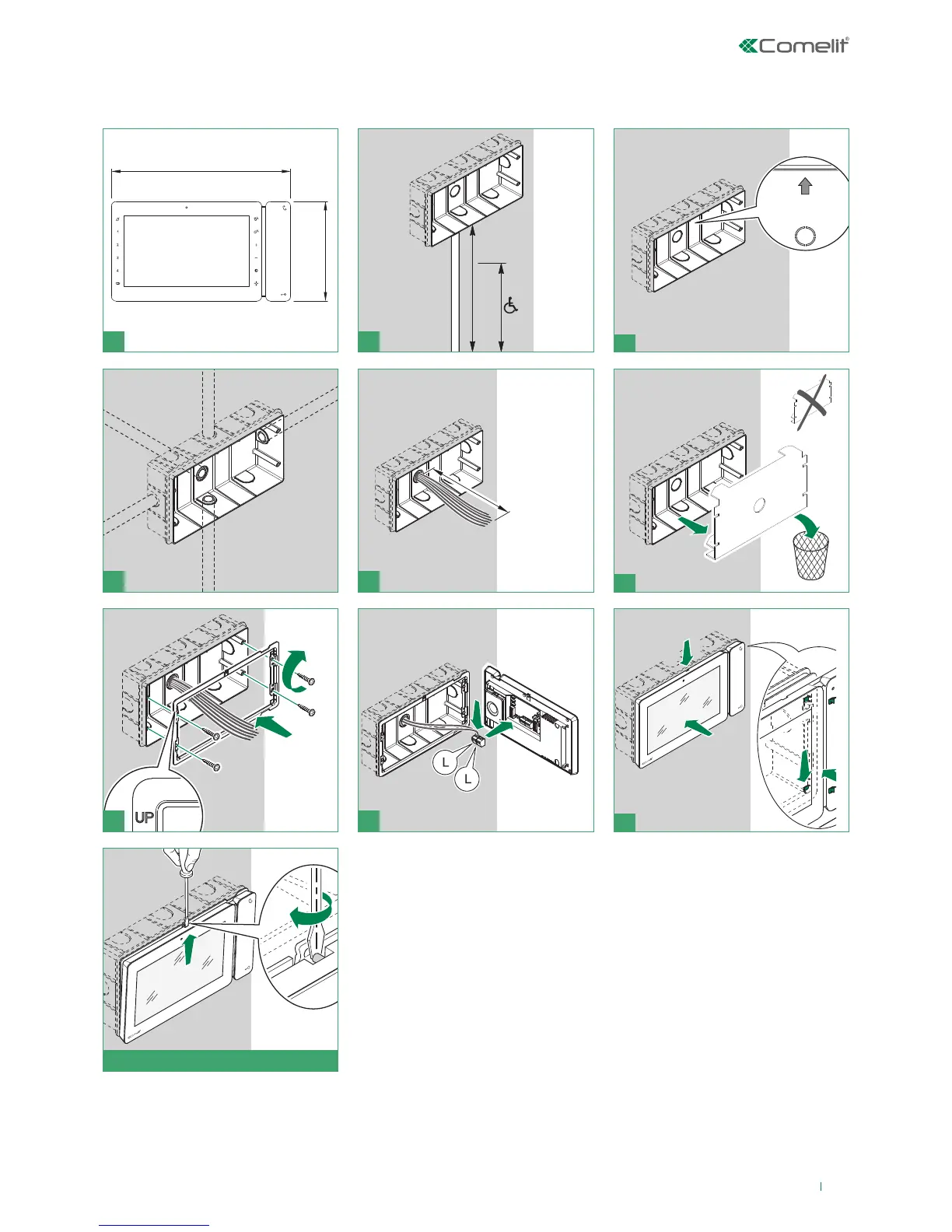

Mounting the 7" MAXI SBC monitor on flush-mounted box Art. 6817
ALTO
UP
HAUT
OBEN
3
160 cm
130 cm
2
223 mm
124 mm
1
6
L
max
= 10 cm
L
min
= 6 cm
5
3
1
5
7
9
4
2
6
8
4
2
1
CLACK !
2
9
1
2
8
1
2
7
1
2
DISASSEMBLY
