Using the kit in systems with a main entrance
The diagrams BK/EN/109I and BK/EN/110I on page 88 and 90 show a
possible system confi guration for managing up to a max. of 30 Bravo Kits
with one Art. 4680 - Art. 4680K* placed, for example, at the entrance of a
residential complex.
Using these system diagrams, it is possible to call one of the Bravo Kits
from the main entrance equipped with Art. 4680 - Art. 4680K*.
In this confi guration it is necessary to program the buttons of Art. 4680K on
Art. 4879K (as illustrated in the procedure below); the internal units should
also be programmed with the corresponding code (see table on page 20).
For further information on the integration of Bravo Kits into Simplebus
optional
► Set the user code using the dip
switches, see table on page 20

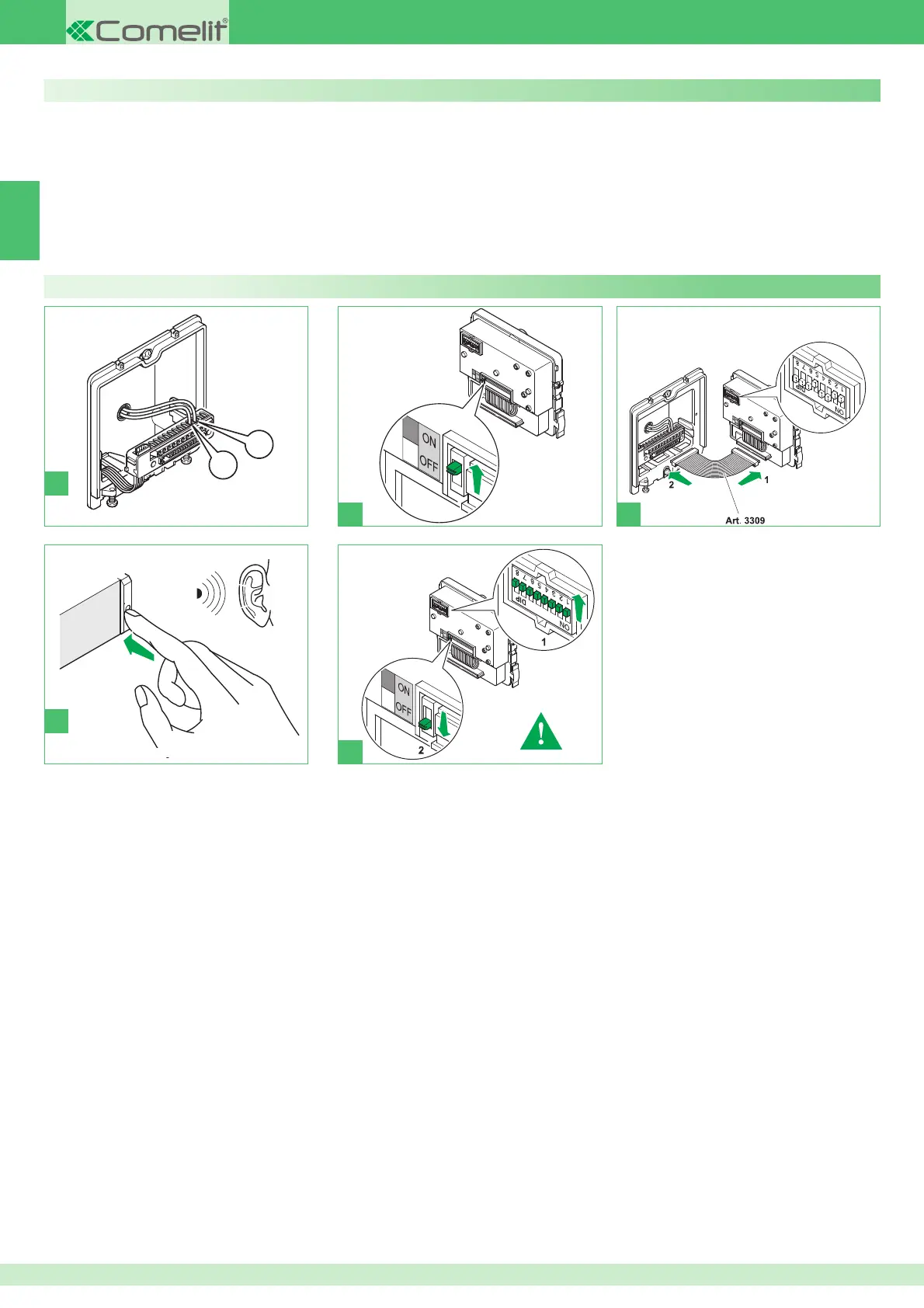

Programming buttons on Art. 4680K
systems and the programming of the main entrance (Art. 4680 - Art.
4680K*), refer to the catalogue (no. 140) and the technical manual FT/
SB/24.
* Operating restrictions for Art. 4680K
Art. 4680K manages calls originating from ONLY digital or button modules
if they fall between address 1 and address 10.
