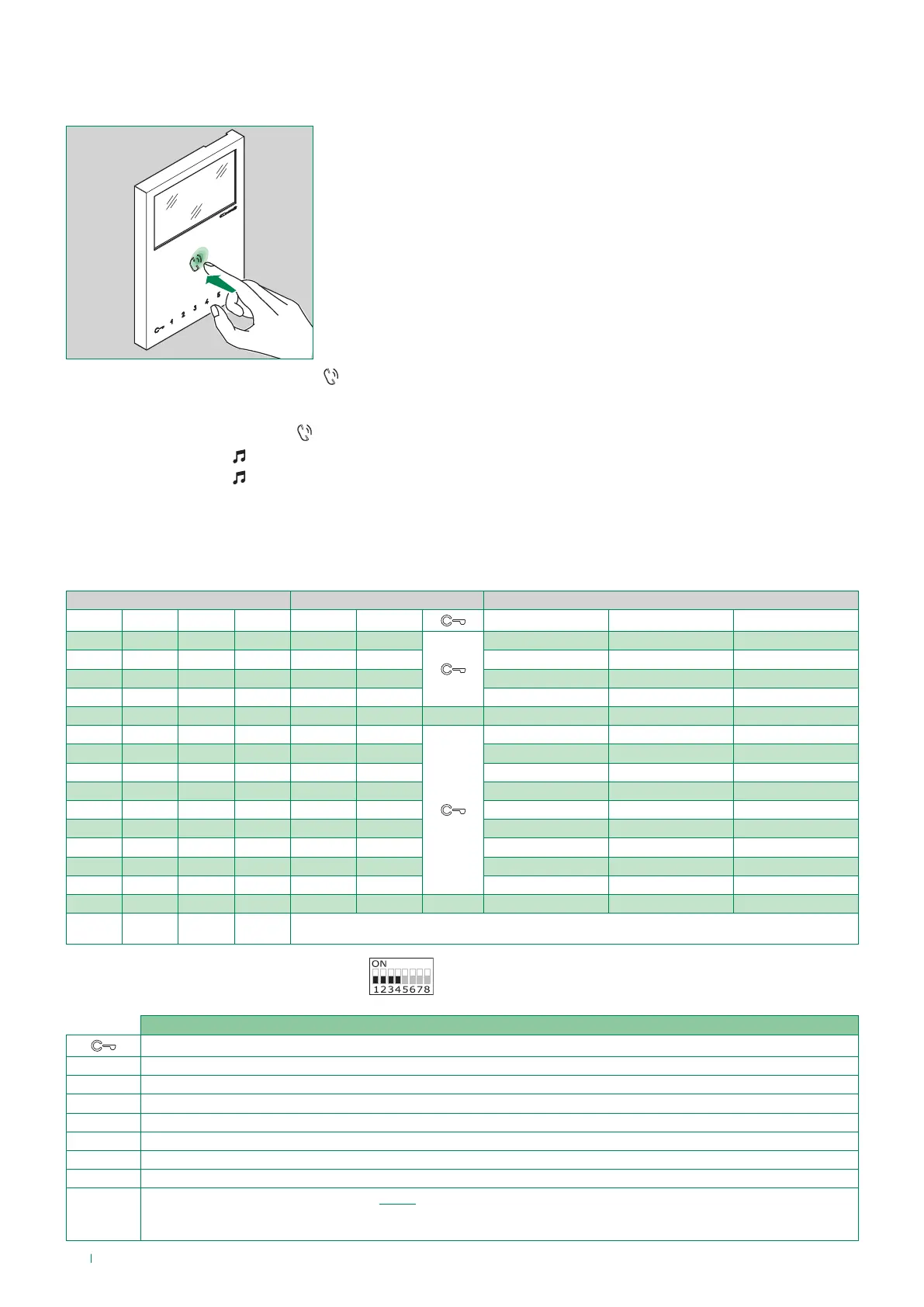

Comelit 8461V - Monitor Operation; Answering Calls and Auto-Answer; Standard Soft-Touch Key Configuration

18
Standard configuration for DIP switches 1-2-3-4
Monitor configuration
Standard configuration for soft-touch keys
Legend
Lock- release
ACT Actuator
AI Self-ignition
K Guardian door-entry phone call
D Doctor
INT General or selective programmable intercom - singlefamily call standard for KIT 8461
INTb General or selective programmable intercom - two-family call standard for KIT 8461
NULL No function or DO NOT use
PROG
Programmed functions, see pages 19-23.
In this Dip switch setting, the buttons control the programmed functions; the NON-programmed buttons
control functions referred to on line 0000 (default).
Operation
Answer incoming call
Activation/deactivation automatic answer mode
Press the soft-touch audio activation key to answer incoming call.
f Press on the audio activation key
for 10 sec
» (ACTIVATION)
+ audio LED with FIXED ILLUMINATION
» (DEACTIVATION)
+ audio LED OFF
DIP S2 Art. 6721W(/BM) + Art. 6734
DIP 1 DIP 2 DIP 3 DIP 4 P1 P2
P3 P4 P5
0 0 0 0 ACT AI
NULL D NULL
1 0 0 0 NULL AI INT INTb D
0 1 0 0 INT AI INTb ACT NULL
1 1 0 0 ACT NULL NULL NULL K
0 0 1 0 ACT ACT ACT ACT ACT ACT
1 0 1 0 INT ACT
NULL NULL INTb
0 1 1 0 AI D K NULL NULL
1 1 1 0 INTb INT AI INT NULL
0 0 0 1 NULL NULL D AI INTb
1 0 0 1 K NULL NULL NULL AI
0 1 0 1 NULL K NULL ACT INT
1 1 0 1 NULL NULL NULL K ACT
0 0 1 1 INTb AI INT ACT D
1 0 1 1 INT INT INT INT INT
0 1 1 1 NULL NULL NULL NULL NULL NULL
1 1 1 1 PROG
