7
External unit Art. 4893
Description
Wall-mounted external unit for Quadra series door entry monitor. Die-cast aluminium front panel, wide-angle colour camera
and single LED for lighting at night.
Capacitive buttons with the option of setting 1 to 4 call buttons via dip switch.
Indicator LED for call sent, lock-release activated, audio activated and system busy.
Loudspeaker volume adjustment and audio balancing. Bus line power supply.
External unit dimensions: 95x195x23 mm.

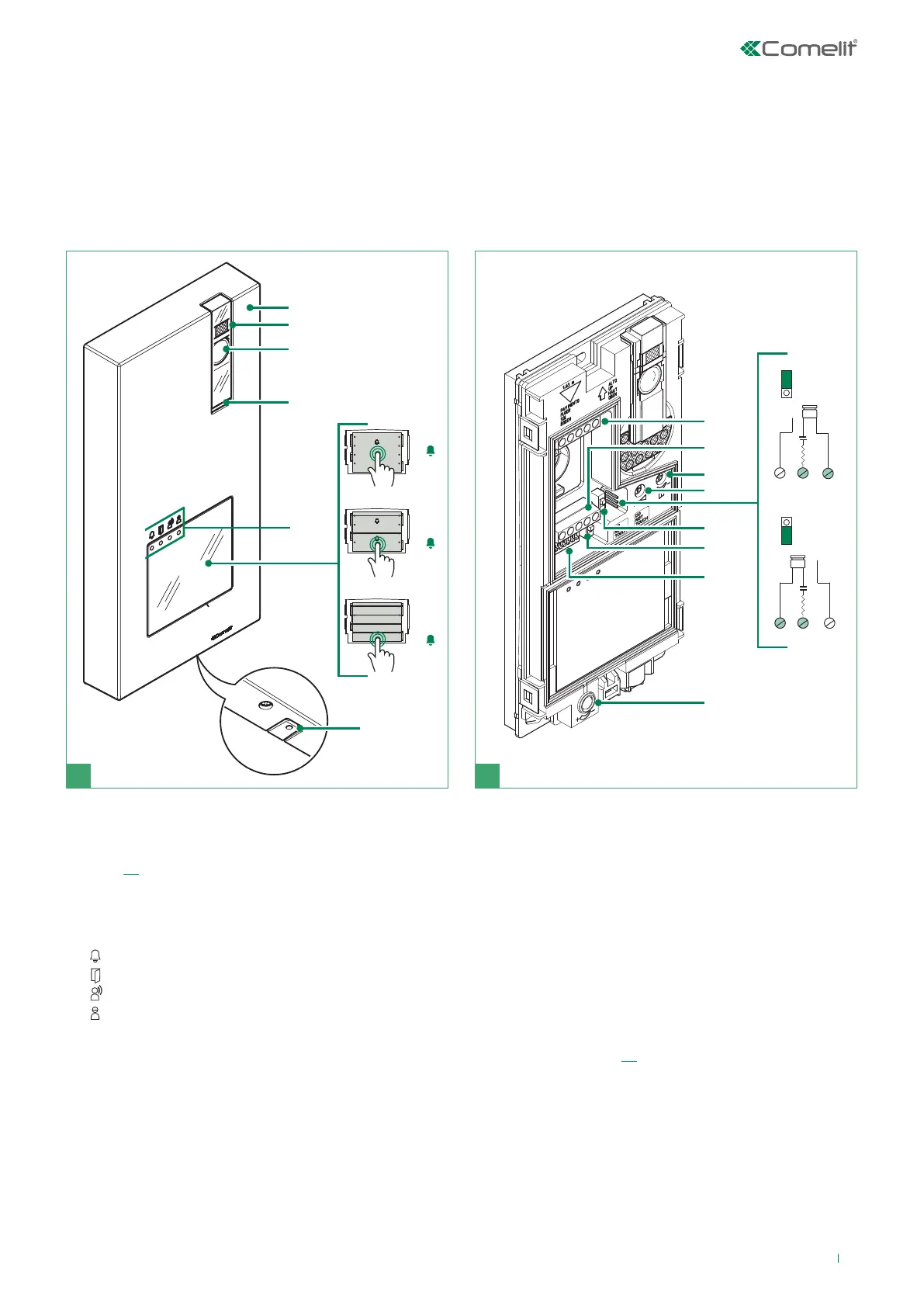

1. Die-cast aluminium cover
2. Camera lighting LED set by default to activate in response
to a call (can be disabled by setting DIP 7 to ON, see
page 10)
3. Wide-angle colour camera
4. Loudspeaker
5. Indicator LED
call sent
lock-release enabled
audio enabled
system engaged
6. Transparent front panel with label-holder in 1 / 2 / 4
button versions (default 1 button)
f To send the call, touch the button corresponding to
the user you want to contact
7. Microphone
1
2
1
2
3
4
1
1
2
3
4
5
7
6
1
C
NC
NO
JP1
NC
NO
C
NC
NO
JP1
NC
NO
8
9
10
11
12
13
14
15
16
2
8. Terminal block M1
LL bus line connection
RTE timed local lock-release input
COM common input for RTE and DO contacts
DO door open indication input
9. Terminal block M2
SE- SE+ connection for electric door lock
NC relay normally closed contact
NO relay normally open contact
C relay common contact
10. Loudspeaker volume control
11. Audio balance
12. JP1 enable RC network for door lock filter on relay
contacts (see page 40)
13. CNF programming confirmation switch
14. PR programming input/output switch
15. DIP SWITCH for function programming
16. Microphone volume control
